Do you run a small- or medium-sized company, and this is the first time you’ve thought about adding automation? If so, consider a FANUC cobot. Quick to install, easy to use and offering unrivalled reliability, they represent a lasting solution that will boost your productivity and provide new growth opportunities. They also offer a quick return on investment. Let FANUC help you find the right cobot solution to meet your needs!
MORE freedom and flexibility

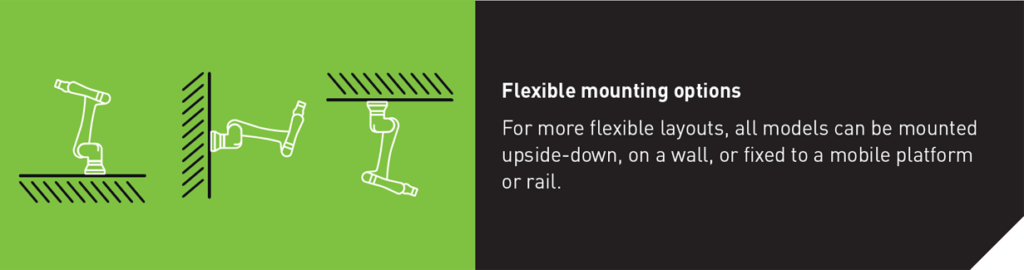

The FANUC CRX series can work side by side with people or collaborate with them without the need for external safety devices (in accordance with risk assessment). As a result, you enjoy better versatility and work ergonomics, benefit from flexible mounting options and save valuable production space.
ISO-certified safe to work with people
These collaborative robots are ISO 10218-1 and ISO 13849-1 certified and equipped with ultrasafe FANUC contact stop detection based on proven sensor technology. Highly sensitive contact stop function stop the robot smoothly even with light contact of people and all robots restart easily and quickly after a contact stop. In addition to contact stop, the CRX series robots come with push to escape functions to be able to push the robot out of the way manually for additional safety. In addition, the robot will retract immediately when it contacts hard objects to minimize a pinching force. Speed and safety settings can be customized to help you adapt each collaborative robot to meet your exact specifications.
Palletizing, Taking Out in Sync With Upstream/Downstream Processes, Taking Out Products, Taking Out Products + Products
Features
MORE Versatility and MORE Precision
Integration
Integration has never been easier thanks to our cobots’ lightweight, slim, and compact design
Usability
Ready for business in no time: the FANUC CRX series is quick to set up and exceedingly easy to program
Service
Enjoy 8 years of maintenance-free operations
Design
More Reliability
All of FANUC’s CRX series robots use proven FANUC technology and a familiar interface. As a result, the collaborative robots operate like any other FANUC robot with exactly the same high degree of reliability, uptime, dexterity and world
class +/- 0.01-0.05 mm repeatability.
More features
With more than 250 software features, FANUC’s R-30iB Plus controller guarantees the best processing speed and robot performance for every FANUC cobot. Designed for increased user-friendliness and minimal energy consumption, the R-30iB Plus comes in five different cabinets to help you make the most of your floor space and production cell layouts. With the addition of the CRX line, the R-30iB family expanded to include the R-30iB Mini Plus Controller for even more space savings. Proven technology
For more reliability, all FANUC cobots are based on proven FANUC technology. They offer exceptional repeatability and come with the standard FANUC interface for easy learning, programming and setup. As a result, no extensive retraining is necessary. Application scenarios can be easily modeled using ROBOGUIDE simulation software. FANUC cobots are customizable and include a large number of options. They are also backed by full spare parts availability, global service and 24/7 support.
List of Options
CRX Food Series
FANUC CRX food-grade collaborative robots (cobots) are specifically designed for use in food and beverage manufacturing environments.
Key Features
Rated IP67, FANUC’s CRX food-grade cobots are dust-tight and waterproof and can operate in harsh food production environments without compromising performance.
The wrist features a corrosion-resistant finish.
A smooth surface and fully enclosed design with internal cable routing makes it easy to clean.
Epoxy coating is compliant with USDA Incidental Food Contact Requirements.
Uses NSF H1 food-grade grease which is safe for incidental food contact.

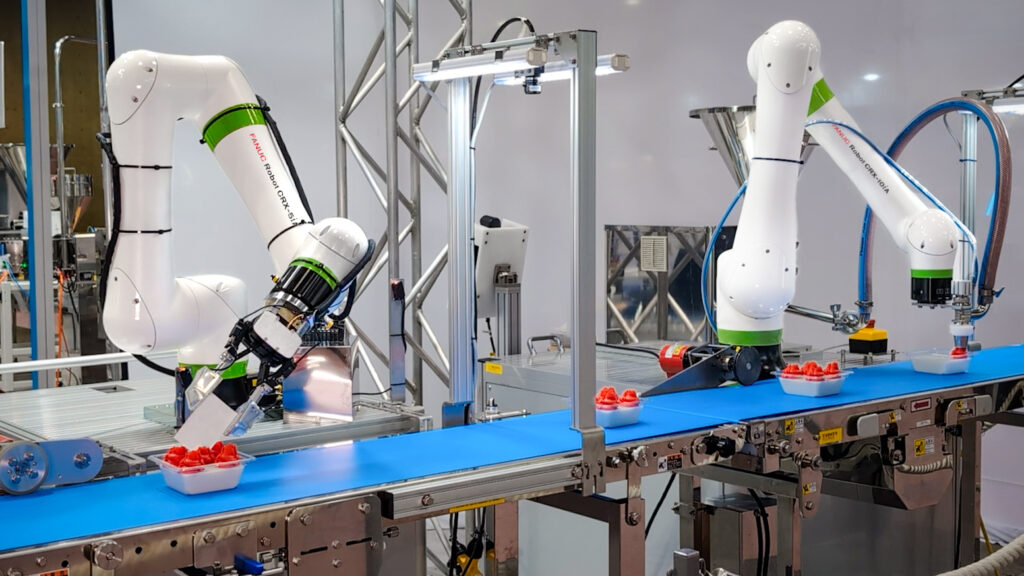

FANUC’s CRX-5iA and CRX-10iA collaborative robots dispensing icing on moving desserts on a conveyor.

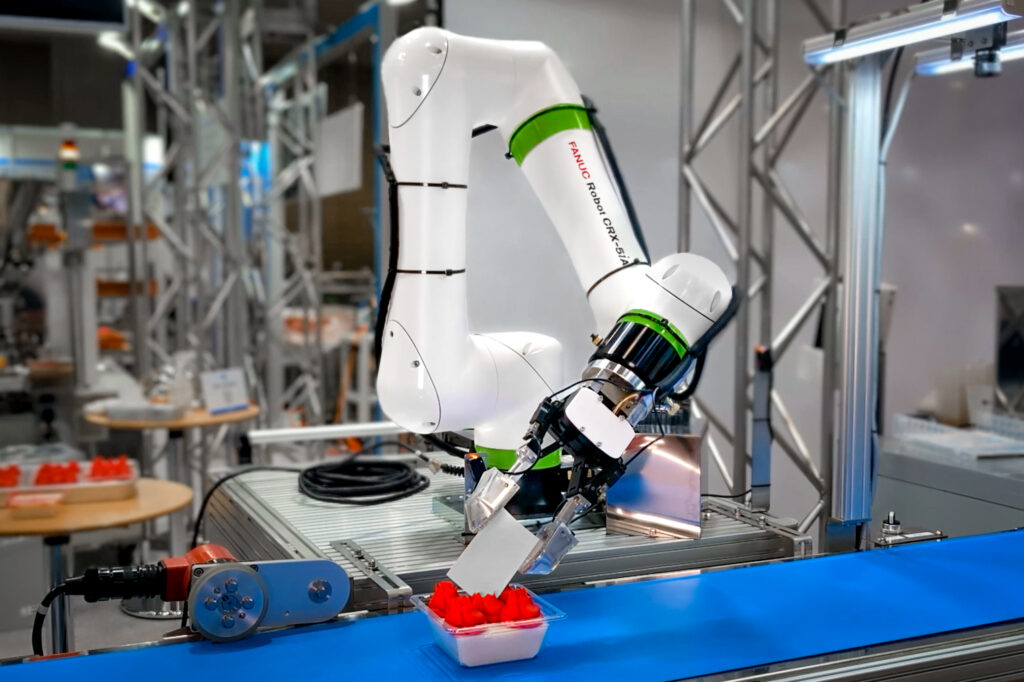

FANUC’s CRX-5iA collaborative robot picking and placing a name tag onto a cake.

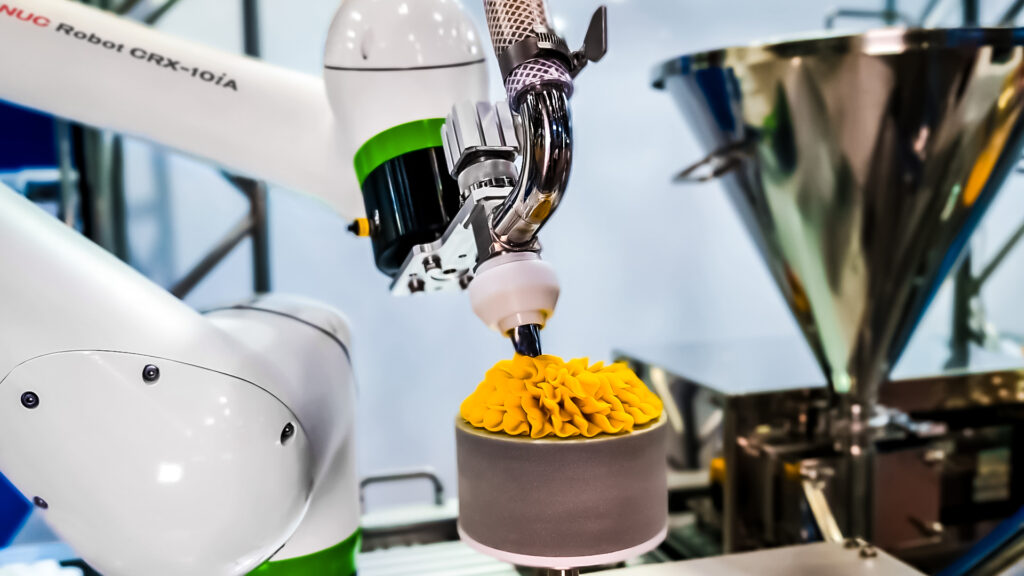

FANUC’s CRX-10iA collaborative robot dispensing icing on a cake.

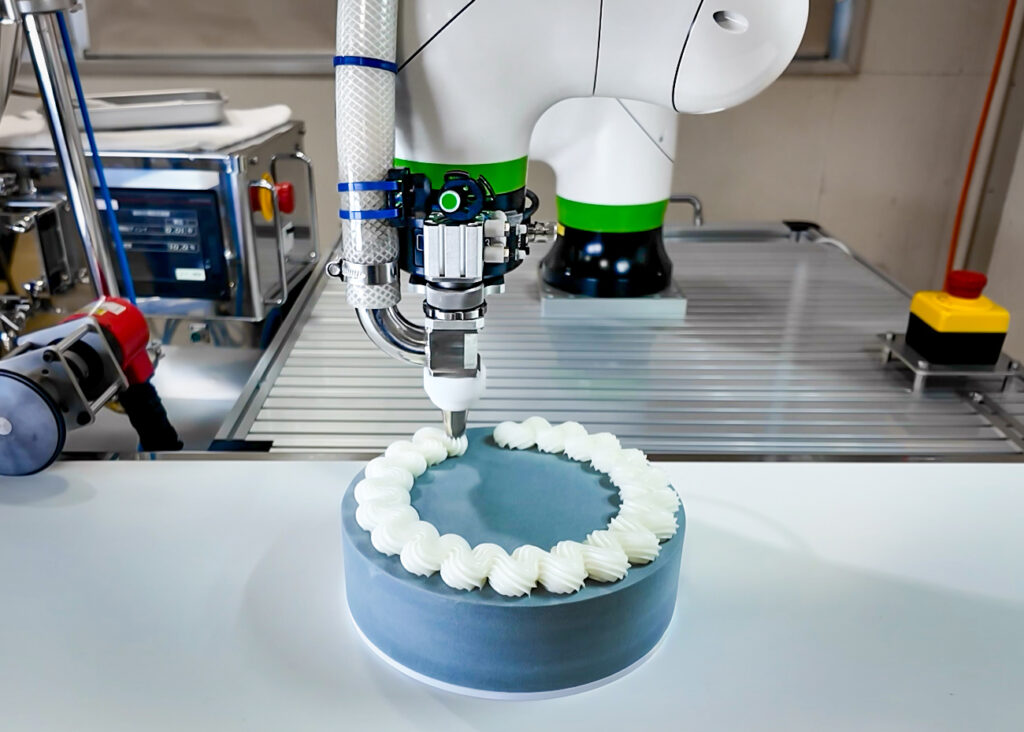

FANUC’s CRX-10iA collaborative robot dispensing icing around a cake.

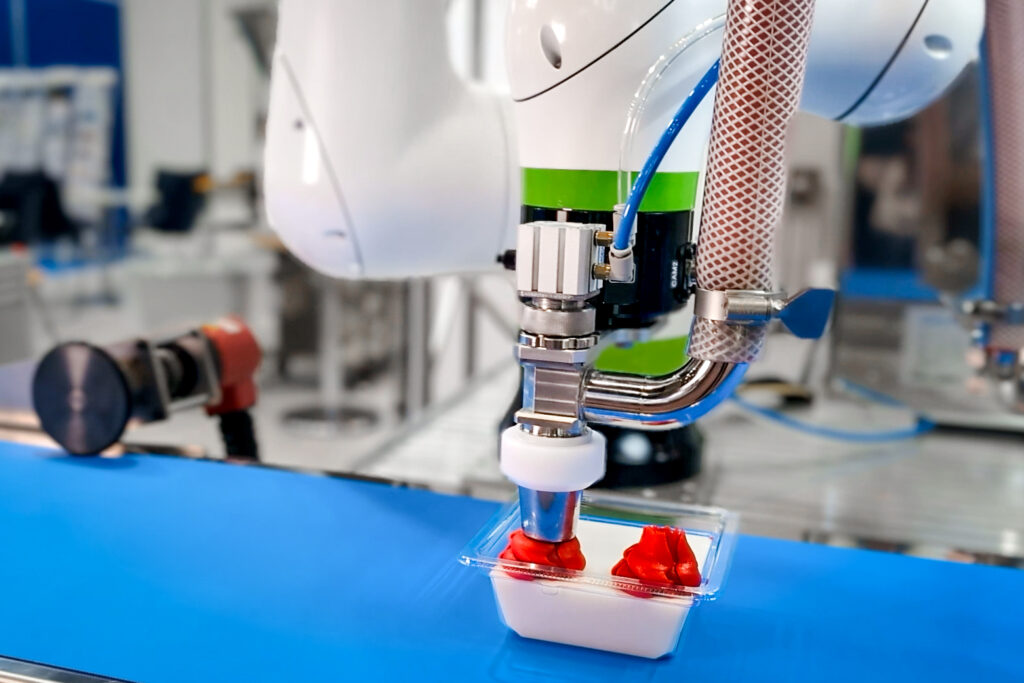

FANUC’s CRX-10iA collaborative robot dispensing icing on a dessert on a moving conveyor.

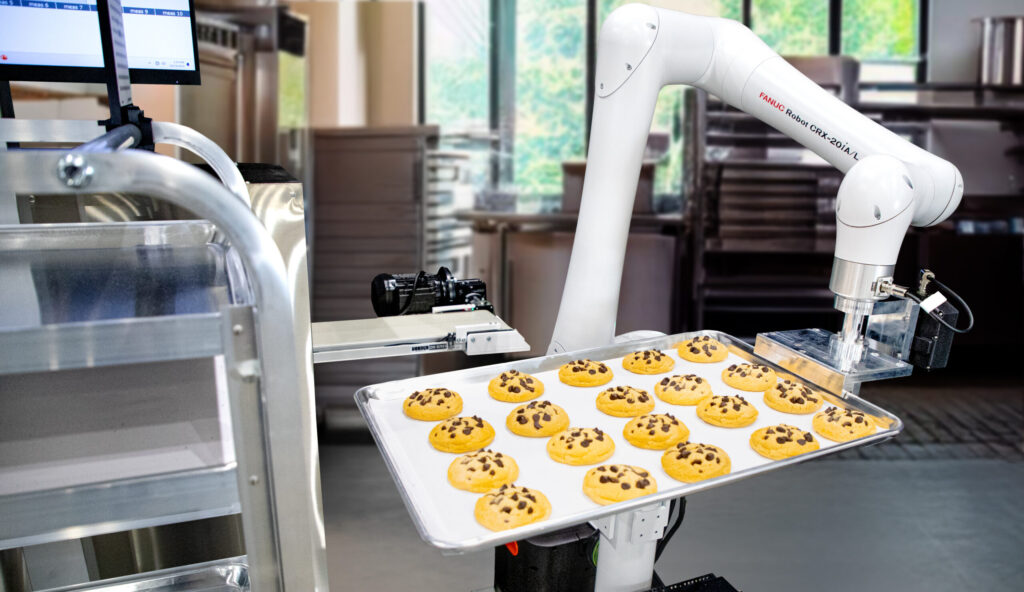

Providing an impressive 1,418 mm of reach, FANUCs CRX-20iA/L Food-Grade Cobot uses iRVision to demonstrate a realistic bakery application featuring the controlled loading and unloading of cookie trays on and off a waterfall-style conveyer, using two food-grade cobots.

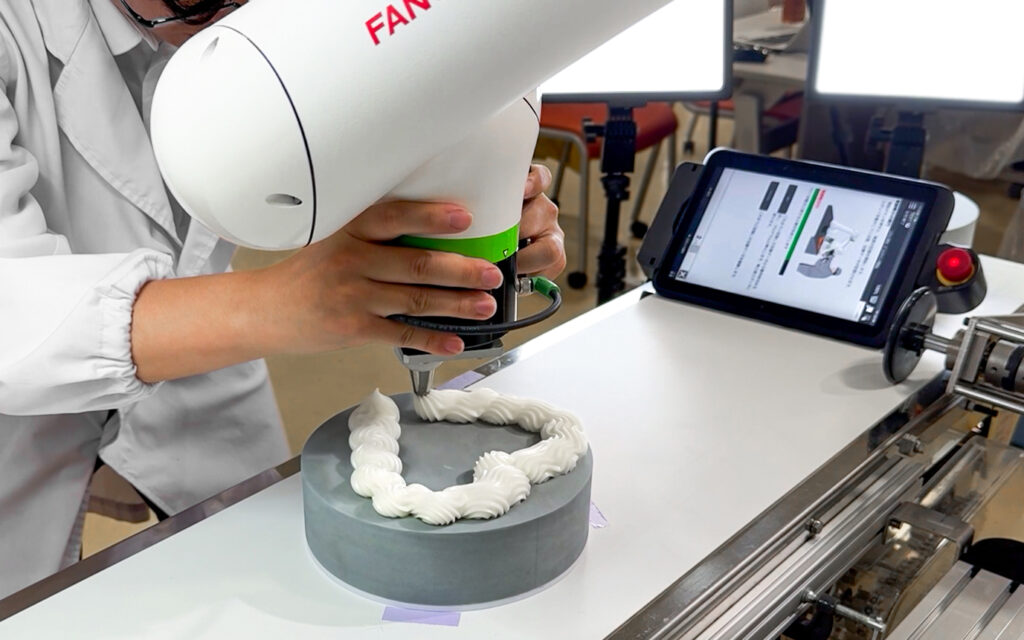

FANUC’s CRX-10iA collaborative robot dispenses icing on a cake while being hand guided by an operator.
Compatible Controllers
Drag & Drop Programming
Whether you are a seasoned programmer or a first-time operator – FANUC cobots provide you with user-friendly and intuitive programming.
Furthermore, you can also select:

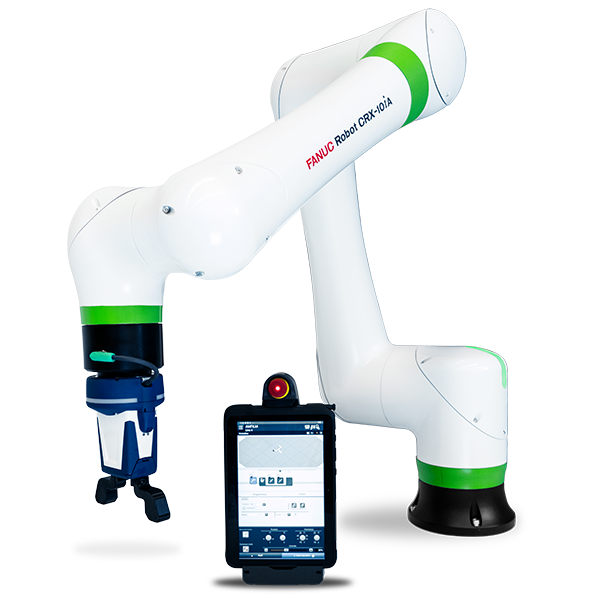

Easy programming with Tablet Teach Pendant.
FANUC’s Tablet Teach Pendant is designed for intuitive programming, thanks to a large touch screen
Additional drag & drop functionality lets you easily program an application within minutes
Two interfaces are available:
· New User Interface for beginners
· iPendant User Interface for experienced operators
Easy programming with iHMI on iPendant Touch
FANUC’s iHMI user interface offers ample processing power and clear high-resolution screen displays
Display setup, programming guides and tutorials are all readily accessible from the main home screen
30 minutes – that’s all it takes to create a program for simple handling tasks, thanks to FANUC’s programming guide
