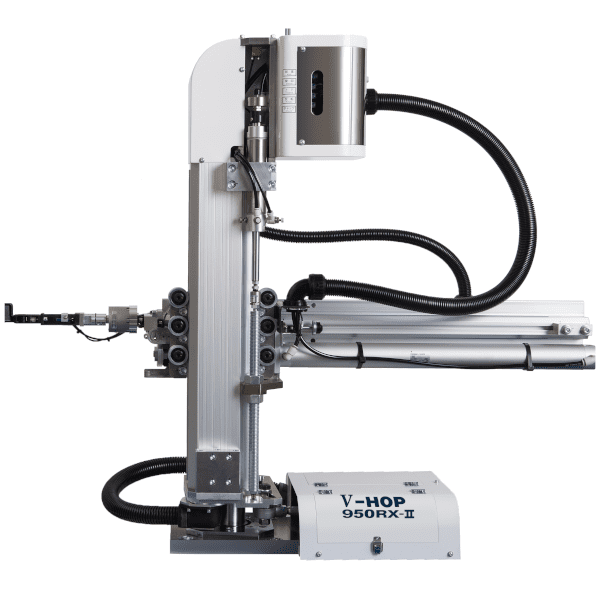

As the model code suggests, this runner take-out robot is designed and built specifically for serving vertical molding machines. It supports rotational movement, so the runner release position can be freely set anywhere. Moreover, the take-out mode can be switched between the top and bottom halves of the mold from the controller.
| Molding Machine Mold Clamping Force | 30 tf < x < 500 tf |
|---|---|
| Max. Payload | Less Than 5 kg |
| Application | Taking Out Just Sprues |
Take-out from the bottom half of the mold supported
Switchable take-out mode
Runners can be taken out from the bottom half of a mold by simply switching the take-out mold from the controller.
Smooth release
180˚ flippable gripper (X type)
The gripper smoothly releases the runner without any worries of the runner getting caught on objects.
Multiple language support
3 language support available as an option
Japanese, English and Korean
New space-saving model

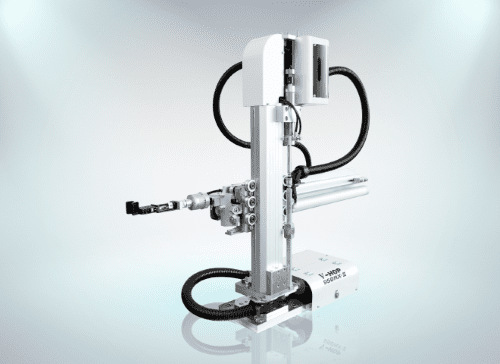

V-HOP-II with 2-stage telescopic arm
The arm incorporates a two stage sliders in the wntry axis that creates space-savings.
Freely settable runner release position
Rotational movement (R type)
This type allows the take-out robot to rotate during release operations. The rotating angle can be set between 60 – 90˚.
Standard operating system
[1] Equipped with a Compact G Controller• Easy-to-operate by LCD
• Lightweight body
• Data storage for up to 15 molds
• Internally stored production management data, e.g., take-out count, defect info, etc.
