Custom injection molders face a different automation challenge than high-volume, single-part production lines. Job shops and custom molders run varied part geometries, frequent mold changes, and unpredictable order volumes - conditions that make automation harder to justify on paper but often more valuable in practice, because manual handling variability compounds across every job change. Yushin America supports custom molders with take-out robots and EOAT designed to handle this variety without requiring a dedicated robot for every job.
The Automation Challenge for Custom Molders
Custom and job-shop molding operations typically run:
- Varied part geometries across different customer programs, sometimes changing weekly or even daily
- Shorter production runs than dedicated high-volume lines, with more frequent mold changes
- Unpredictable volume from job to job, making capital equipment decisions harder to justify with a single-program ROI calculation
- Diverse quality requirements depending on the customer and application - some jobs cosmetic-sensitive, others purely functional
These conditions historically made automation feel like a poor fit for custom molders, since a robot configured for one job might not transfer easily to the next. Modern take-out robot platforms with modular EOAT and flexible programming address this more directly than older single-purpose automation did.
Why Automation Still Makes Sense for Custom Molding
Repeat Jobs Justify Automation Even at Modest Volume
Many custom molders run the same customer programs repeatedly over months or years, even if individual production runs are shorter than a dedicated high-volume line. If a job repeats regularly, automation investment can be justified on cumulative volume across repeat runs, not just a single production batch.
Consistency Matters More When Staff Rotate Across Jobs
In custom molding, operators frequently move between different molds and parts throughout a shift. This increases the risk of handling inconsistency compared to a dedicated line where one operator handles one part type continuously. A take-out robot performs the same extraction sequence regardless of which job is running, removing this variability.
Labor Flexibility Improves With Automation
Custom molders often run leaner staffing than high-volume operations. Automating repetitive extraction across multiple molding cells frees operators to manage changeovers, quality checks, and multiple machines simultaneously rather than being tied to manual extraction on a single machine.
Modular EOAT Reduces the Changeover Penalty
The traditional objection to automating custom molding - "the robot only works for one part" - is addressed through modular EOAT design and quick-change tooling. A take-out robot with modular EOAT can be reconfigured for a new part faster than building an entirely new manual process for every job change.
Where Automation Fits in a Custom Molding Cell
The extraction sequence itself does not change based on whether the mold changes frequently:
- Mold opens at cycle completion
- Take-out robot enters the mold space
- EOAT grips the part
- Robot retracts and moves to downstream placement
- Part is released to conveyor, fixture, or packaging station
- Robot returns to home; mold closes for the next cycle
What changes between jobs is the EOAT configuration, the robot's programmed positions, and potentially the cycle time - not the fundamental automation approach.
Yushin Solutions for Custom Molding Flexibility
| Custom molding need | Yushin solution |
|---|---|
| Standard take-out across varied jobs | YD/YD2 Series standard take-out robots - covers 30-1,300 tf |
| Fast changeover between short runs | Modular EOAT design, quick-change tooling |
| Small parts, medical/electronics custom work | YD-0310 compact take-out robot |
| Insert loading or overmolding programs | NC servo wrist units added to standard platforms |

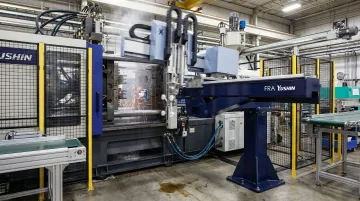

| High-variety, safety-critical programs | FRA Series high-end take-out robots |
| End-of-line palletizing across multiple jobs | PA Series compact palletizing robot |
Advanced Applications: Insert Loading and Overmolding Across Job Variety
Custom molders frequently take on insert molding and overmolding programs precisely because these applications require specialized engineering that not every molder offers. Yushin supports this as a differentiator: engineered EOAT, insert-handling tooling, and A/C, B/C, or A/B/C NC servo wrist units give take-out robots controlled orientation capability across different insert geometries.
These applications require deeper engineering review for each new program, but they are supported Yushin capabilities - a custom molder that can reliably automate insert loading across varied jobs has a real competitive advantage over one relying on manual insertion.
Selection Criteria for Custom Molding Automation
- Job repeat frequency: Determines whether automation payback is realistic for a given program
- Part-to-part variation: Drives EOAT modularity requirements
- Changeover time tolerance: How much changeover time is acceptable before automation becomes counterproductive
- IMM range across the job mix: Confirm the robot platform covers the tonnage range of your typical custom programs
- Insert/overmolding frequency: Determines whether NC servo wrist investment is justified across your job mix
- Downstream requirements: May vary by customer program - packaging, inspection, or palletizing needs
When Automation May Not Be the Right Fit for a Custom Job
- True one-off prototype work: If a mold will run once for a small quantity before being retired, automation setup time is difficult to justify.
- Extremely high mold-change frequency with no repeat pattern: If molds change multiple times per shift across completely unrelated geometries with no recurring programs, changeover burden may outweigh automation benefit.
- Very low customer commitment: Programs without a reasonable expectation of repeat business carry higher automation risk since the investment may not be recovered.
Implementation and Support
Yushin America provides installation, EOAT engineering for job-to-job flexibility, operator training, field service, and parts support across North America.
- 24/7 phone support: 888-707-6268
- Over $1.3M in spare parts inventory with overnight shipping
- Yushin University: Yushin robot training and programming
- Yushin America field service and support
Frequently Asked Questions
Is automation worth it for custom or job-shop injection molding? Often yes, particularly for programs that repeat regularly even if individual runs are shorter than dedicated high-volume lines. Automation payback should be calculated on cumulative volume across repeat jobs, not a single production batch. Very low-repeat or one-off work is less likely to justify the investment.
How does modular EOAT help custom molders? Modular EOAT and quick-change tooling reduce the time and cost of reconfiguring a take-out robot for a new job, addressing the traditional objection that automation only works for a single dedicated part.
Does Yushin America manufacture custom molded parts? No. Yushin America is not a contract manufacturer or custom molder. Yushin supports custom molders and job shops with take-out robots, EOAT, and downstream automation - not part production itself.
Can automation handle insert loading across varied custom molding programs? Yes. Insert loading and overmolding are supported Yushin capabilities through engineered EOAT and NC servo wrist units, though each new program requires application engineering review for the specific insert geometry.
What robot is best suited for a custom molder running varied part sizes? Depends on the IMM range across your job mix. The YD/YD2 Series covers 30-1,300 tf standard applications. Confirm your typical tonnage range and part sizes with Yushin America to determine the right platform coverage.
How do I calculate automation ROI for a custom molding operation with variable volume? Base the calculation on repeat job frequency, current labor cost per changeover cycle, scrap or quality issues from manual handling variation, and expected program duration - not a single production run in isolation.
Conclusion
Automation for custom injection molding is not about matching a single robot to a single part - it is about building flexibility into the take-out robot and EOAT so the automation investment pays off across a variety of jobs and repeat programs. Yushin America's modular EOAT approach and range of take-out robot platforms are built for this flexibility.
If your custom molding operation is managing labor coverage across varied jobs, inconsistent handling between changeovers, or insert loading challenges, contact Yushin America to discuss the right take-out robot and EOAT configuration for your program mix.
