The global industrial robotics market reached $33.96 billion in 2024 and is projected to hit $60.56 billion by 2030 — a 10.5% CAGR that reflects how rapidly manufacturers are committing to automated handling. Cartesian systems sit at the center of that shift.
This guide covers what Cartesian robots are, how they work, their core advantages, how they compare to SCARA, Delta, and six-axis alternatives, and the specification questions you need to answer before buying.
TL;DR
- Cartesian robots move along three perpendicular linear axes (X, Y, Z) within a rectangular workspace
- They deliver consistent speed, accuracy, and payload capacity at every point in that workspace — no dead zones
- Payloads range from under 1 kg to 400+ kg depending on configuration — spanning small-parts assembly to heavy palletizing
- Cartesian systems are simpler to program and integrate with existing plant equipment than SCARA, Delta, or six-axis alternatives
- Choosing the right system comes down to five variables: work envelope, payload, cycle time, part reorientation, and mounting configuration
What Is a Cartesian Robot?
A Cartesian robot — also called a linear robot, gantry robot, or coordinate robot — is an industrial manipulator whose three principal axes of motion are linear and perpendicular to one another. According to IFR's classification based on ISO 8373:2021, a Cartesian robot is defined as a manipulator with three prismatic joints whose axes form a Cartesian coordinate system.
The name comes directly from René Descartes' coordinate geometry. Each axis maps to X (horizontal traverse), Y (horizontal reach), and Z (vertical stroke). Because all motion is linear, every reachable point is defined by three simple coordinates — no trigonometry or rotary joint compensation needed.
Workspace Shape and Why It Matters
The work envelope of a Cartesian robot is a rectangular box. This is a practical advantage over articulated or SCARA robots, which have circular or irregular envelopes with dead zones near the base. A Cartesian robot reaches every point in its defined space with the same precision, speed, and payload capacity — no degraded performance at the edges of the envelope.
Configuration options include:
- 2-axis (X/Z): Single-plane transfer tasks, simple pick-to-place applications
- 3-axis (X/Y/Z): Full spatial pick and place — the most common injection molding configuration
- 3-axis + rotary (theta): Adds part reorientation at the end of the Z axis for applications requiring parts to be flipped or rotated during transfer
These configurations map directly to real-world injection molding demands. Yushin America's large take-out robots — including the MKA-2000S — use a 3-axis Cartesian traverse configuration by default, with optional NC Servo Wrist Units available in 1-, 2-, and 3-axis arrangements for applications that require part reorientation during transfer.
How Cartesian Robots Work: Axes, Components, and Motion
Each axis is driven by a servomotor that converts rotary motion into linear travel. The three main drive mechanisms are:
| Drive Type | Speed | Precision | Max Travel |
|---|---|---|---|
| Belt drive | Up to 5,000 mm/s | Medium (±0.05–0.1 mm) | Up to 20 m |
| Ball screw | Up to 1,600 mm/s | High (±0.02 mm) | Up to 4 m |
| Rack and pinion | Up to 150 m/min | High (±0.02 mm) | Up to 100,000 mm |
Drive selection depends on the stroke length, speed requirement, and precision tolerance of the application.
Key Structural Components
- Linear rails/actuators: Guide channels that constrain each axis to straight-line motion
- Carriage/slide: The moving element that carries the load along each rail
- Cable management: Energy chains that protect wiring and pneumatic lines through the full range of motion
- End-of-arm tooling (EOAT): The gripper mounted at the Z-axis end — vacuum/suction cup for smooth-surfaced parts, mechanical gripper for irregular shapes, or servo wrist for parts requiring reorientation
The Pick and Place Motion Cycle
A standard cycle runs as a deterministic, repeatable sequence:
- Position — robot traverses to pick coordinates (X/Y)
- Descend — Z axis drops to part location
- Grip — gripper activates (vacuum or mechanical)
- Ascend — Z axis retracts
- Transfer — robot traverses to place coordinates
- Descend and release — part placed, gripper deactivates
- Return — robot cycles back to home position
This linear, fixed-path motion is what makes Cartesian robots so reliable at high volume. There are no kinematic chain calculations, no variable joint compliance. The path is identical every cycle. That predictability translates directly into controller simplicity.
Controller Integration
Cartesian robots can run from a dedicated robot controller or, in many configurations, directly from a standard PLC. The linear kinematics are simple enough that no separate robot-language interpreter is required — unlike six-axis articulated robots, which depend on proprietary controllers and complex inverse kinematics calculations.
Yushin America's E-touch controllers support integration via DeviceNet, EtherCAT, and EtherNet/IP, enabling bidirectional communication with plant-floor PLCs and downstream equipment without proprietary middleware.
Key Advantages of Cartesian Robots for Pick and Place
Consistent Precision Across the Entire Workspace
Rotary-joint robots lose precision at the extremes of their reach. Cartesian robots don't have this problem. Because each axis moves independently along a fixed rail, positioning accuracy is the same at corner positions as it is at center positions.
Documented industrial repeatability examples from manufacturers include:
- Parker XRS Medium series: 5–45 micrometers
- IAI single-axis series: up to ±3 micrometers
- Gudel CP gantry: ±0.02 mm
The range across product families spans roughly ±0.003 mm to ±0.1 mm depending on drive type, axis length, and configuration — always confirm specifications for the specific model being evaluated.
Payload Scalability
Cartesian systems cover a wider payload range than any other pick and place robot type. Documented examples:
- Light duty (IAI CRS-XBA): 1 kg
- Mid-range (Parker XRS Large): 25 kg
- Heavy duty (IAI ISPB-WXM single-axis): 400 kg horizontal
- Industrial gantry (Gudel CP): up to 5,000 N
Payload is always calculated as EOAT weight plus part weight. For Yushin America's take-out robot lines, this ranges from under 5 kg (YD/YD2 standard series) to 30–50 kg for the MKA-2000S large robot designed for 1,500+ ton molding machines.
Application-Fit Configuration
Cartesian axes are specified individually for length, load, and speed. Buyers purchase exactly the capacity needed rather than the closest available standard size. This is especially valuable in injection molding, where the required stroke lengths are defined by the molding machine's tie-bar spacing and mold dimensions.
The MKA-2000S, for example, offers a horizontal traverse adjustable up to 5,000 mm, with a vertical stroke up to 3,000 mm via a 2-stage telescopic arm — sized to fit the machine, not the other way around.
Simplified Installation and Commissioning
Cartesian robots are faster to commission than articulated systems because they don't require separate motion libraries or complex joint-calibration routines. Yushin America's take-out robots, for instance, connect via standard industrial protocols and are set up directly through the E-touch controller — no external programming environment needed.
Practical commissioning advantages include:
- No joint-calibration routines — linear axes confirm position directly
- Controller interfaces (such as Yushin's E-touch) handle setup without separate software
- Compatible with EtherNet/IP and common PLC networks out of the box
- 24/7 technical support with nationwide service engineers available if issues arise
Cartesian Robots vs. Other Pick and Place Robot Types

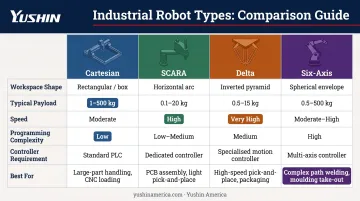

Comparison Table
| Attribute | Cartesian | SCARA | Delta | Six-Axis |
|---|---|---|---|---|
| Workspace shape | Rectangular | Circular (with dead zone) | Cylindrical cone | Spherical (irregular) |
| Typical payload | 1–400+ kg | 1–20 kg | 1–8 kg | Up to 35 kg |
| Speed | Medium–high | High | Highest | Medium |
| Programming complexity | Low | Low–medium | Medium | High |
| Controller requirement | PLC or dedicated | Dedicated | Dedicated | Proprietary |
| Best for | Long reach, heavy loads | Fast point-to-point | Light, high-volume | Complex, varied tasks |
How to Think About the Choice
Each type has a practical shorthand that helps narrow the selection:
- Cartesian: Built to fit — application-specific reach, payload, and stroke
- SCARA: Fast, repeatable point-to-point within a compact circular zone
- Delta: Highest throughput for light parts in a small vertical footprint
- Six-axis: Maximum flexibility for complex, varied, or changing tasks
When Cartesian Wins
Cartesian robots are the right choice when:
- Required reach exceeds approximately 2.1 m (7 ft)
- Payload exceeds 20–35 kg
- Overhead mounting is available and floor space is limited
- The pick-and-place path is defined, linear, and repeatable
- Long-term reliability in a fixed, high-cycle application is the priority
NIST notes that Cartesian systems can accommodate a wide range of workpiece sizes and are often configured to match exact stroke, payload, and workspace requirements — an advantage that generic articulated robots can't match on dedicated production lines. For most fixed, high-cycle applications, the case for Cartesian is straightforward once actual requirements are on paper.
Pick and Place Applications: Where Cartesian Robots Excel
Cartesian robots are the standard choice across several industrial applications:
- Injection molding part extraction: Overhead mounting, precise linear extraction path, compatible with wide tonnage range
- CNC machine loading/unloading: Defined transfer path between machine and conveyor or pallet
- Electronics PCB assembly: High repeatability for small-component placement
- Pharmaceutical and lab sample handling: Precision handling with clean-room compatibility
- Food packaging and tray loading: Hygienic designs, defined rectangular transfer paths
- End-of-line palletizing: High payload, long horizontal reach, consistent layer placement

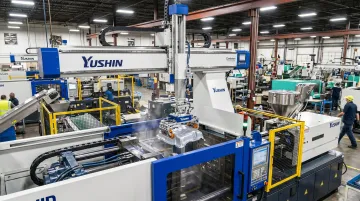

Injection Molding: The Primary Application
Cartesian take-out robots are the dominant automation solution for injection molding because the application is structurally suited to linear motion. The robot mounts overhead, extracts parts from the open mold in a straight vertical and horizontal path, and transfers them downstream with no rotary motion required and no floor space consumed.
Yushin America has been developing take-out robots since its first sale in 1978, building in servo motor drive, advanced touch-screen controls, and topology optimization developed through joint research with Kyoto University. The results are measurable: the FRA series delivers take-out cycle times up to 10% faster than predecessor models, and the MKA-2000S cuts take-out times by 17% versus its predecessor.
The product range covers molding machines from 30 to 1,500+ ton clamping force, with payloads from under 5 kg to 50 kg including EOAT.
Vision Systems and Lights-Out Operation
Modern Cartesian pick and place systems pair with part-presence sensors and machine vision for error-proofing during transfer. EOAT configurations support missing-part detection through multiple sensing methods:
- Vacuum sensing
- Cylinder switches
- Part sensors
- Fiber optics
For unattended operation, the YC Email Notification Module sends customizable alerts — up to 8 programmable error types — to any mobile device or Windows platform when robot alarms occur, without necessarily stopping the production cycle. This makes fully inspected, lights-out molding cells practical for facilities running continuous shifts without an operator present.

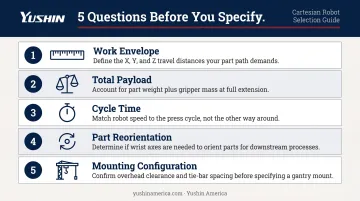

How to Choose the Right Cartesian Robot for Your Operation
Answer these five questions before specifying any system:
- Work envelope: What are the required X, Y, and Z travel distances? This is set by the molding machine's tie-bar spacing, platen size, and downstream equipment placement.
- Total payload: What is the combined weight of the EOAT plus the heaviest part being handled? This determines the axis load rating.
- Cycle time: What picks-per-minute rate is required to match the molding machine's cycle? This drives axis speed and acceleration specs.
- Part reorientation: Does the part need to be rotated or flipped during transfer? If yes, a theta axis or servo wrist unit is required.
- Mounting configuration: Is overhead gantry mounting available, or is a cantilevered configuration needed? Ceiling clearance directly determines usable Z-stroke.
Once you've worked through those answers, the choice between robot types becomes straightforward.
The Decision Rule
If the pick-and-place path is defined and rectangular, the payload is moderate to heavy, the workspace accommodates overhead mounting, and long-term reliability in a repeatable cycle is the priority: a Cartesian robot is almost always the right answer.
For injection molding specifically, overhead mounting, linear extraction geometry, and broad payload coverage across take-out robot platforms make Cartesian the default starting point. If your application fits that profile, start there — then evaluate alternatives only if a specific constraint rules it out.
Frequently Asked Questions
How does a Cartesian robot work?
A Cartesian robot moves along three perpendicular linear axes (X, Y, Z), each driven by a servomotor, to position an end-of-arm tool at any point within a rectangular workspace. The axes move independently and in coordination, executing pick and place cycles as a fixed, repeatable sequence.
Which robot is used for pick and place?
Cartesian, SCARA, Delta, and six-axis robots are all used for pick and place. Cartesian robots are the most common choice for applications with heavy payloads, long travel distances, or defined linear transfer paths, including injection molding part extraction and palletizing.
What is pick and place in robotics?
Pick and place is the process of a robot picking up an object from one location and placing it at another. It replaces repetitive manual handling in manufacturing applications including part transfer, assembly loading, packaging, and sorting.
What are the limitations of Cartesian robots?
Cartesian robots are limited to straight-line movement within a rectangular workspace, require an overhead or frame-mounted structure, and are less flexible for repurposing to different tasks compared to six-axis articulated robots. A rotary axis can be added for basic part reorientation, but more complex reorientation requires a servo wrist module.
What is the difference between a Cartesian robot and a gantry robot?
A gantry robot is a type of Cartesian robot where the horizontal member is supported at both ends — like a bridge — making it suitable for large, heavy-duty applications. A cantilevered Cartesian robot is supported at one end only and is used for lighter, more compact installations.
Are Cartesian robots suitable for injection molding applications?
Yes. Cartesian take-out robots are the standard solution for injection molding part extraction. Their overhead mounting, linear extraction path, speed, and cycle-to-cycle repeatability make them a direct fit for the demands of continuous part removal.
