Auto pallet robotics addresses this directly. These are robotic systems that autonomously pick individual cases and build or break down pallet loads in manufacturing and warehouse environments — removing the human from the heaviest, most repetitive work at the end of the line.
This guide is written for production managers, plant engineers, and logistics leaders in manufacturing. It covers how case picking systems work, the main system types available, and the conditions under which automation genuinely pays off — versus when it doesn't.
TL;DR
- Auto pallet robotics uses robotic arms or Cartesian systems with vision and gripper technology to pick individual cases and stack them onto pallets in defined patterns
- Manufacturing plants are adopting these systems to address labor shortages, reduce repetitive-motion injuries, and maintain consistent throughput across shifts
- Four main system types exist: robotic arm palletizers, gantry systems, layer palletizers, and ceiling-mounted AMR approaches, each with different throughput and floor space requirements
- Performance depends on payload weight, case consistency, surface characteristics, available floor space, and software integration
- Low-volume, highly variable, or space-constrained operations may not see strong ROI without careful upfront analysis
What Is Auto Pallet Robotics in Case Picking?

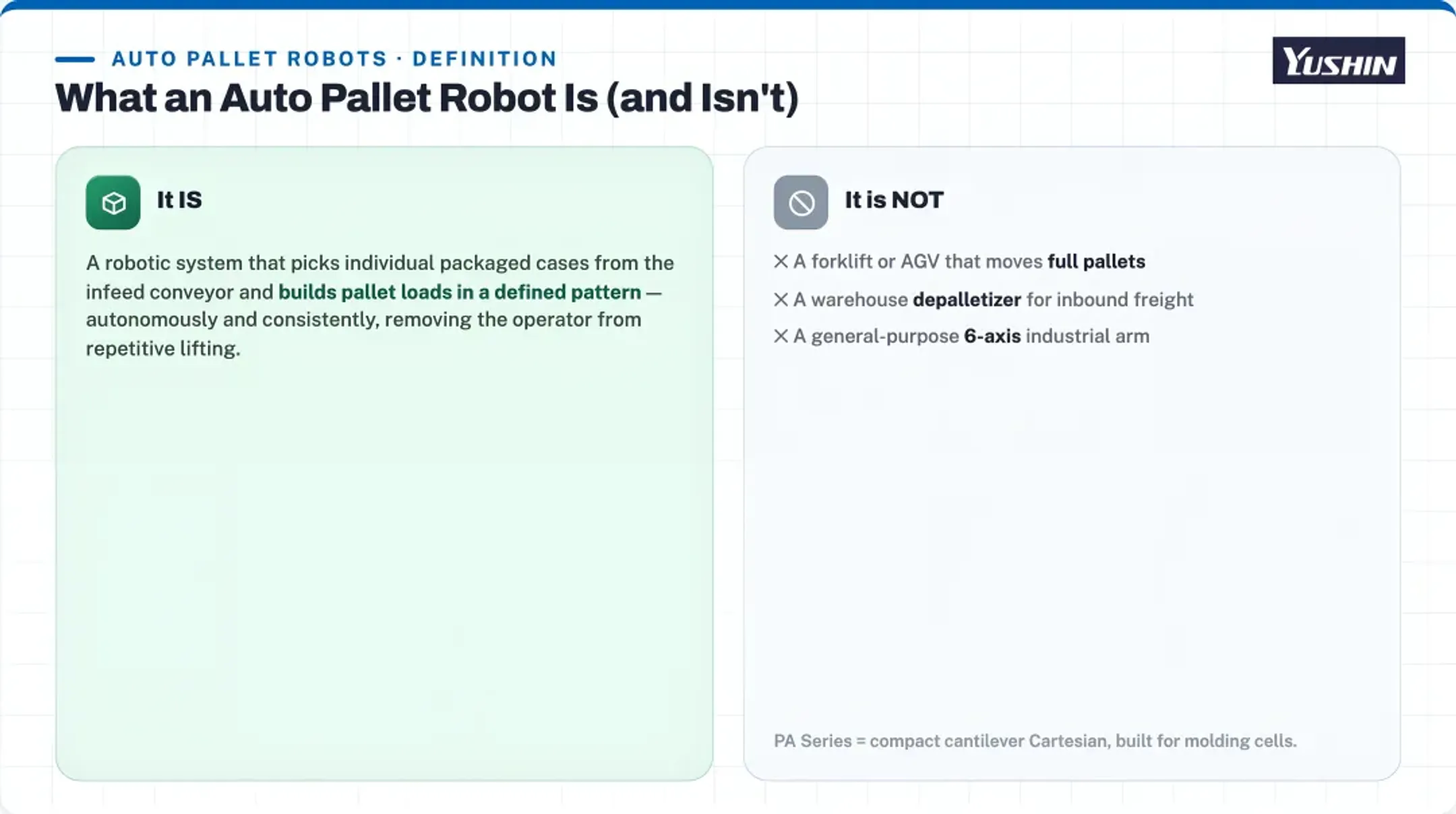

Auto pallet robotics refers to robotic systems that identify, grasp, lift, and reposition individual cases — boxes, cartons, or bags — to build or break down pallet loads. This is distinct from full-pallet movers like AGVs or automated forklifts, which move entire loaded pallets without interacting with individual cases.
Case Picking vs. Palletizing
These terms are often used interchangeably, but they describe different tasks:
- Case picking — selecting individual cases from a source pallet or shelf to fulfill an order
- Palletizing — stacking picked cases onto an outbound pallet for storage or shipment
Auto pallet robotics can handle either task independently or both in sequence. A single system might depalletize inbound freight, route cases through order fulfillment, then re-palletize outbound orders — all without human lifting.
The underlying technology spans robotic arms, Cartesian (gantry-style) systems, compact cantilever robots, and hybrid configurations. Each approach eliminates manual case handling at the point where injury risk and labor cost are highest.

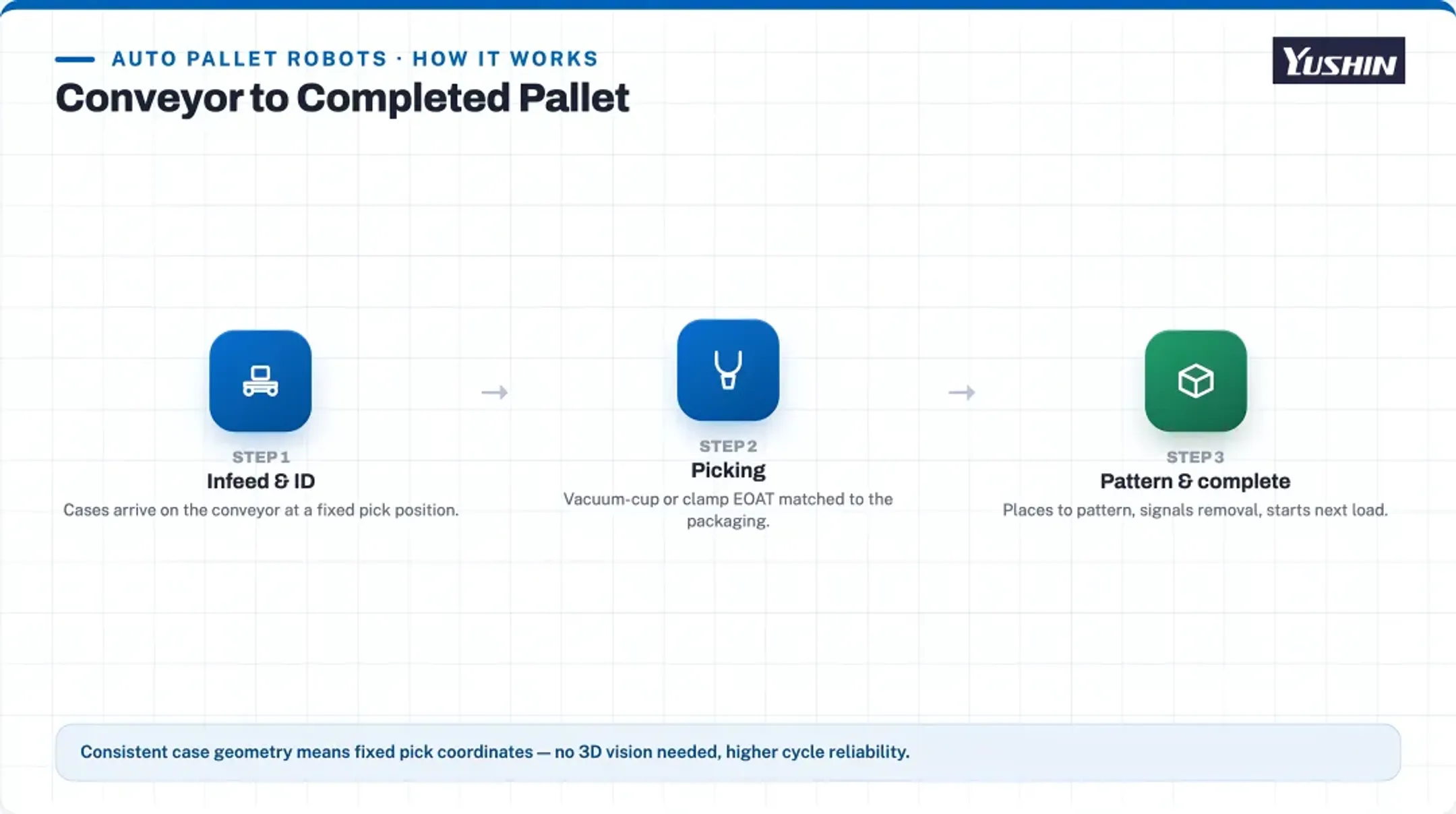

How Auto Pallet Case Picking Systems Work
Auto pallet case picking systems run through the same core sequence regardless of application: identify the case, pick it, place it in the correct position, and repeat. Understanding each stage helps clarify where engineering decisions — and potential failure points — actually live.
Step 1: Case Identification and Positioning
Before the robot can pick, it needs to know exactly where each case is and how it's oriented. This is handled by vision systems mounted on the robot or at a fixed point in the cell.
- 2D vision identifies position and orientation for cases arriving in consistent, flat presentations on a conveyor
- 3D vision (structured light or stereo cameras) maps depth and surface geometry, enabling the robot to pick from disordered or mixed presentations on a source pallet
3D vision is the standard choice for depalletizing and bin picking applications, where case positions vary with every cycle and flat-presentation assumptions don't hold.
Step 2: Picking
The robot's end-of-arm tooling (EOAT) executes the pick. Three main gripper types are used in palletizing applications:
- Vacuum cup grippers — best for smooth, rigid surfaces like corrugated cartons; offer precise, mark-free handling
- Mechanical clamp grippers — suited for heavy, irregular, or porous cases where vacuum won't hold
- Fork-style tools — used in layer picking applications where an entire row or layer is lifted at once
EOAT selection is one of the most critical decisions in system design. A vacuum gripper that performs perfectly on sealed cardboard may fail entirely on mesh bags or porous packaging.
Step 3: Placement and Pattern Building
The robot places each case in an exact position defined by its stacking pattern software. Modern systems calculate these patterns dynamically, accounting for:
- Case dimensions and weight distribution
- Pallet stability requirements
- Product crushability (heavier cases on bottom, fragile items on top)
- Destination-specific sequencing for mixed-SKU pallets
Stacking pattern software typically lets operators configure layer combinations and generates robot programs with graphical feedback — reducing changeover time when new products enter the line. Yushin's PA-20 and PA-40 palletizing robots, for example, integrate this pattern logic with their E-touch controller platform, coordinating pick sequencing directly with downstream equipment.
That coordination layer is what ties the physical cycle together. Onboard software or a connected warehouse management system tracks build progress, manages pick sequencing, and triggers handoffs when a pallet is complete.
Types of Auto Pallet Robotics for Case Picking
Four main system architectures are used in manufacturing and distribution. Each suits a different mix of throughput requirements, product variability, available footprint, and budget — so the architecture decision comes before the vendor decision.
Robotic Arm Palletizers
The most widely deployed configuration. A fixed robotic arm with EOAT sits between an infeed conveyor and pallet station, picking and placing cases continuously.
Key characteristics:
- Handles mixed SKUs through integrated software and vision systems
- Supports frequent changeovers across diverse case geometries
- Payload ranges from 20 kg to 800 kg depending on model (Yaskawa Motoman lists this range across their palletizing line)
- FANUC robotic systems can process up to 30 cases per minute
Best for: operations with moderate-to-high SKU variety, frequent product changeovers, and space for a traditional robot cell.
Gantry (Cartesian) Palletizers
Overhead systems that move on X/Y/Z axes above the workspace. The robot travels along fixed rails.
Key characteristics:
- Precise placement along linear axes, eliminating rotational complexity
- Well-suited for fragile, bottomless, or irregularly shaped cases
- Typically require a larger structural footprint
- Fewer obstructions at floor level compared to arm-based cells

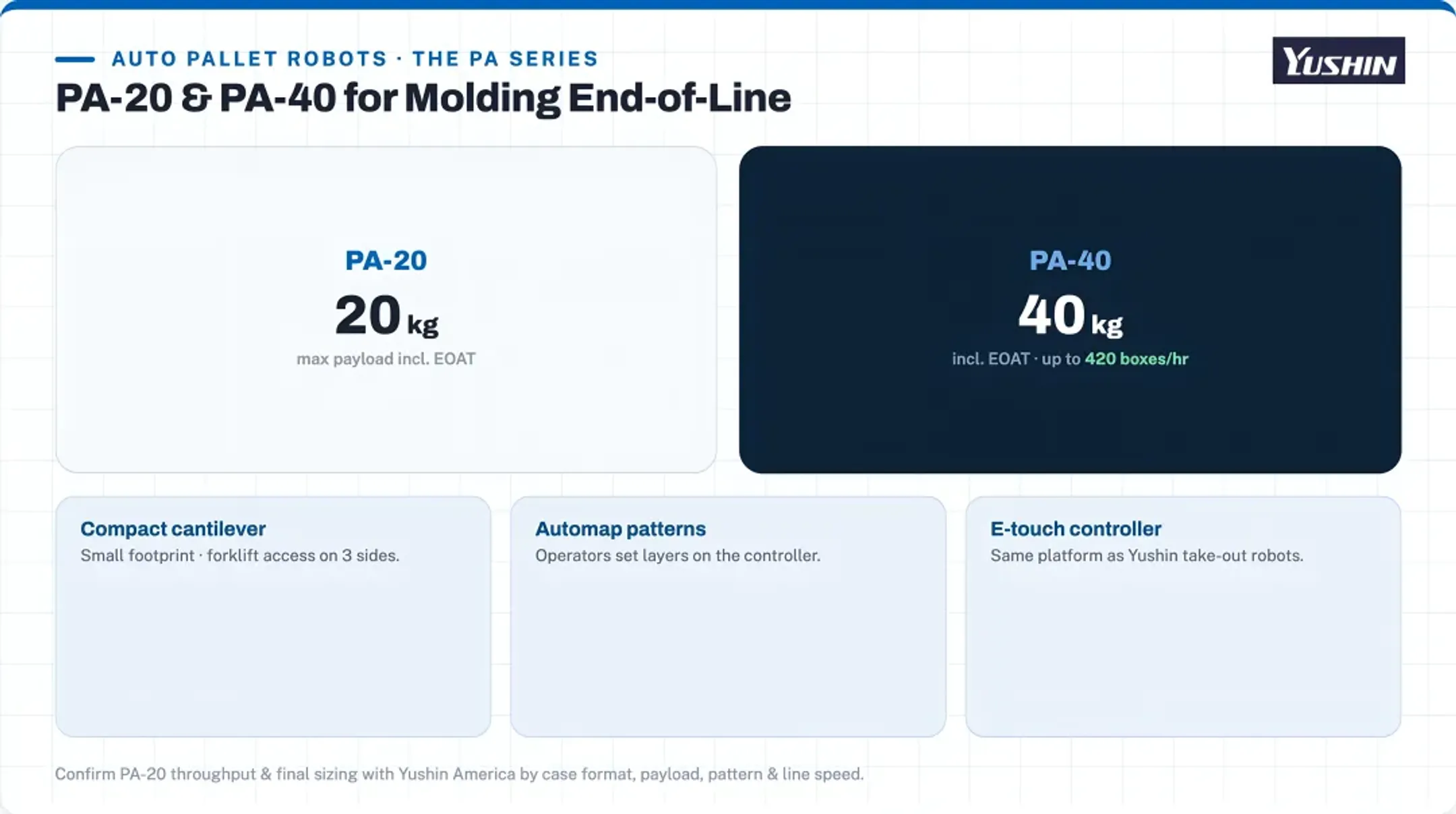

Yushin's PA series takes a distinct approach within the Cartesian category: a cantilever structure with minimal columns that provides floor layout freedom comparable to an articulated robot while maintaining the positioning precision of a Cartesian system.
The PA-40 model handles payloads up to 40 kg (including EOAT) and achieves 420 boxes per hour, making it a practical fit for end-of-line palletizing in injection molding and manufacturing environments where floor space is at a premium.
Layer Palletizers
Rather than picking one case at a time, layer palletizers pick and place an entire layer of cases simultaneously.
Key characteristics:
- Honeywell Intelligrated's Alvey series operates at 2–5 layers per minute; high-end models exceed 225 cases per minute
- Ideal for high-speed, uniform-product environments (beverage, packaged food, consumer goods)
- Limited flexibility for mixed-SKU operations
- A3 data shows food and consumer goods robot orders rose 65% in 2024, reflecting strong adoption in these product categories
Best for: single-SKU or limited-SKU operations running at high volume with consistent case geometry.
Ceiling-Mounted AMR Systems
An emerging category where small robots operate on overhead grid structures and lower grippers to pick cases below. Floor density is the core advantage — but most deployments today are in fulfillment and storage, not production-floor palletizing. Treat this as an early-stage option until more manufacturing-specific implementations are validated.

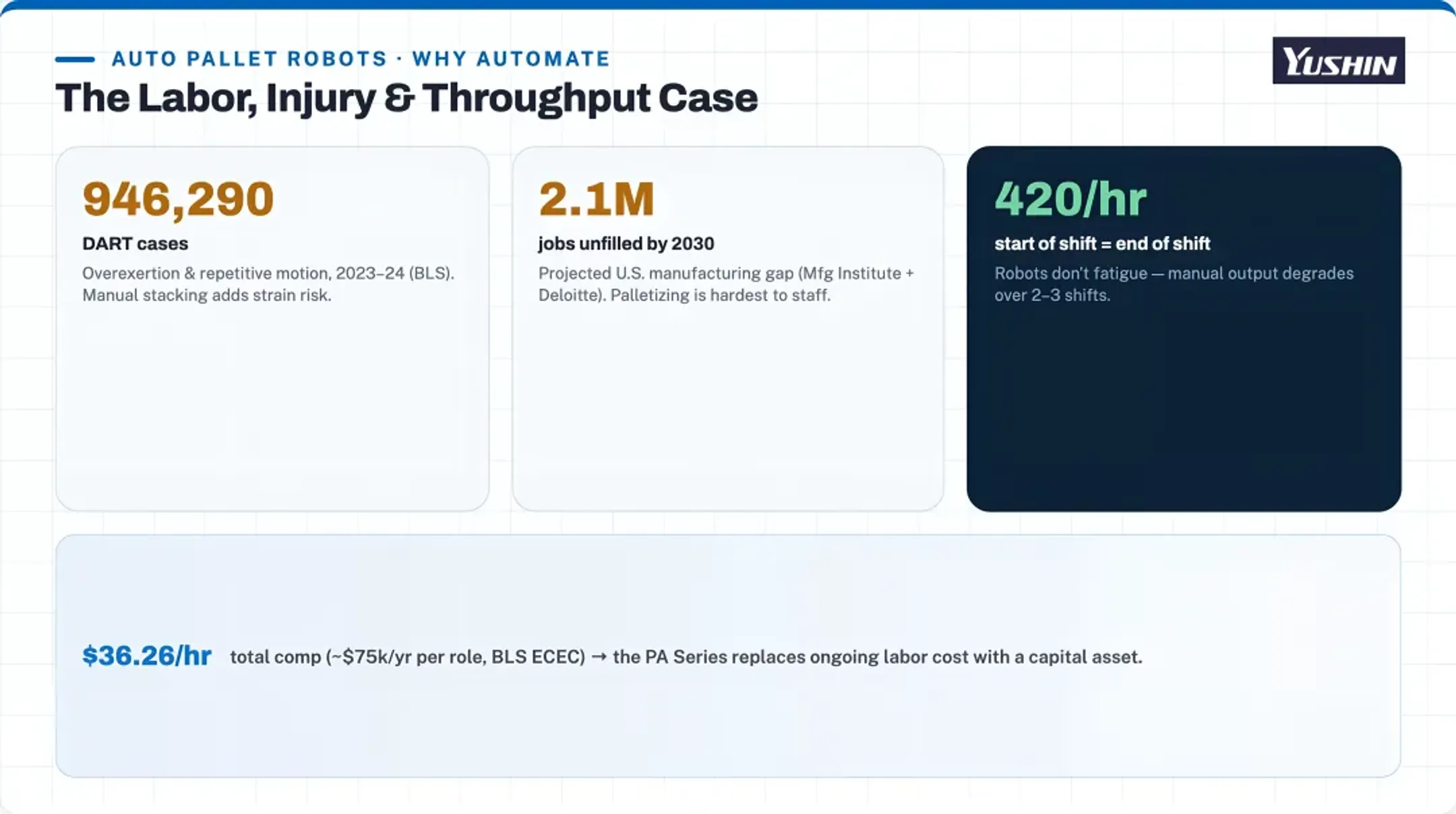

Why Manufacturing Plants Are Adopting Auto Pallet Robotics
The Labor and Safety Problem

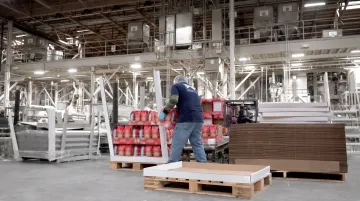

Manual case picking and palletizing sits at the intersection of two serious operational pressures: workforce availability and workplace injury.
The Manufacturing Institute and Deloitte projected 2.1 million U.S. manufacturing jobs could go unfilled by 2030. At the same time, BLS data shows 946,290 DART cases caused by overexertion and repetitive motion across 2023–2024, precisely the injury profile of manual palletizing work. Sprains, strains, and back injuries account for a disproportionate share of days-away-from-work cases in production and material-moving roles.
Robotic palletizing removes workers from this injury exposure entirely, while also solving the scheduling problem of filling a physically demanding role across multiple shifts.
Throughput Consistency
Robots don't slow down after hour six of a shift. Industry benchmarks from Modern Materials Handling put automated palletizing performance above 1,200 units per hour at more than 99.5% reliability for high-speed systems — a consistency that manual operations can't match across full production days.
Inconsistent pallet builds create unstable loads, generating damage claims and slowing receiving operations at the destination.
The Cost and ROI Argument
Total compensation for production, transportation, and material-moving workers runs $36.26 per hour according to BLS ECEC data — including wages and benefits. That's roughly $75,000 per worker annually at full-time hours.
Common ROI and purchasing scenarios across mid-size manufacturing operations include:
- Two-year payback is typical for traditional palletizing systems per Modern Materials Handling, with that timeline shortening as labor costs rise
- Collaborative palletizer deployments (such as systems handling up to 8 boxes per minute) report comparable two-year ROI windows
- Robotics-as-a-Service (RaaS) options shift the investment from capital expenditure to operating expense, with monthly fees typically ranging from $4,000–$7,000 and maintenance bundled in
- Capital purchase models — like Yushin America's PA series — suit facilities treating the robot as a long-term production asset with full ownership from day one
Key Factors That Affect Performance — and When Auto Pallet Robotics May Not Fit
Not every facility benefits from robotic palletizing. Before committing to a system, evaluate these factors honestly.
Technical Factors That Determine System Effectiveness
| Factor | What to Evaluate |
|---|---|
| Payload weight | Does the robot's rated capacity cover your heaviest cases, including EOAT weight? |
| Case consistency | Uniform cases = faster cycle times. Mixed SKUs require vision and pattern software. |
| Surface characteristics | Glossy or smooth surfaces work well for vacuum grippers. Porous, mesh, or flexible packaging may require clamp or fork tooling. |
| Required throughput | Match your cases-per-minute requirement to verified system specs before purchasing. |
| Ceiling height | Palletizing to standard pallet heights (1.8–2 m) requires adequate vertical envelope. Confirm clearance before system design. |
Conditions That Reduce ROI
These situations often produce disappointing payback on robotic palletizing investment:
- Very low daily case volumes — the fixed system cost doesn't amortize well against minimal throughput
- Extreme SKU variability with no consistent case geometry — frequent EOAT changes and reprogramming eat into efficiency gains
- Highly irregular workflows — systems with too many exceptions require constant human intervention, reducing the automation benefit
- Already-efficient manual operations — if your manual line runs smoothly with low turnover, the economic case for automation is weaker
A Common Misconception
Teams often assume any palletizing bottleneck justifies a robotic system. It doesn't. Facilities where manual labor is cost-effective, volumes are low, or product lines change constantly may see poor payback regardless of the technology.
The decision should start with workflow analysis and volume benchmarking — not with a technology demonstration. Understand your line rate, shift coverage gaps, injury history, and product mix before specifying a system.
Conclusion
Auto pallet case picking systems range from collaborative cobots handling 8 boxes per minute to high-speed layer palletizers exceeding 225 cases per minute. The right architecture depends entirely on your throughput requirements, product mix, and facility constraints. No single system fits every operation.
For manufacturing facilities running injection molding or end-of-line production, robotic palletizing works best when it's treated as an integrated part of the production system, not an afterthought added at installation. That means planning ahead for:
- Conveyor integration and pallet flow
- Controller connectivity and communication protocols
- EOAT selection matched to your product mix
Yushin America brings 50+ years of manufacturing automation experience to production floor environments. Yushin developed the PA-20 and PA-40 palletizing robots with injection molding facilities in mind — compact cantilever structures, automatic pattern calculation, and a familiar E-touch controller interface that production teams can operate without extensive retraining. If you're evaluating end-of-line automation, contact Yushin America to discuss whether the PA series fits your facility's requirements.
Frequently Asked Questions
What is an auto pallet?
"Auto pallet" describes any robotic or automated system that builds, breaks down, or handles pallet loads without manual labor. This includes palletizers (building outbound loads), depalletizers (breaking down inbound loads), or combined case picking and palletizing systems.
How much does an auto pallet robot cost?
Pricing varies by system type, payload capacity, and configuration. RaaS providers like Formic list palletizing systems starting around $5,450/month. Capital purchases are typically priced on request, with cost driven by payload requirements, throughput speed, vision and EOAT complexity, pattern software, and installation scope.
What is the difference between case picking and palletizing?
Case picking is selecting individual cases from a source location to fulfill an order. Palletizing is stacking those cases onto a pallet for storage or shipment. Auto pallet robotics can perform either task independently or both in sequence within the same system.
What end effectors are used in auto pallet case picking robots?
The three main types are vacuum cup grippers (smooth, rigid surfaces), mechanical clamp grippers (heavy or irregular cases), and fork-style tools (layer picking). EOAT selection depends on case surface, weight, fragility, and whether the application involves single-case or layer-level picks.
Can auto pallet robots handle mixed-SKU or irregularly shaped cases?
Robotic arm systems with 3D vision handle a range of SKU variability. However, extreme variation in case geometry or packaging type reduces cycle speed and reliability. Uniform case streams deliver the highest throughput and lowest exception rates.
How does auto pallet robotics integrate with an injection molding production line?
Auto pallet systems are positioned at the end of a molding line to receive packaged or bagged parts from a conveyor and stack them onto pallets in a continuous, automated sequence. The robot connects to the line's production controls, tracks pallet build progress, and can trigger downstream transport when a pallet is complete — eliminating the manual handoff step.
