Take-out robots run every cycle a molding cell completes, with no built-in downtime for wear to reveal itself gradually - a robot either performs consistently or it causes a production stop. A structured preventive maintenance program is the most reliable way to avoid the second outcome. This guide covers the specific maintenance tasks that matter for injection molding take-out robots, organized by frequency, so plant maintenance teams can build a practical checklist rather than relying on memory or reactive fixes. Yushin America supports this maintenance approach through field service, parts availability, and operator training.

Why Preventive Maintenance Matters More for Take-Out Robots

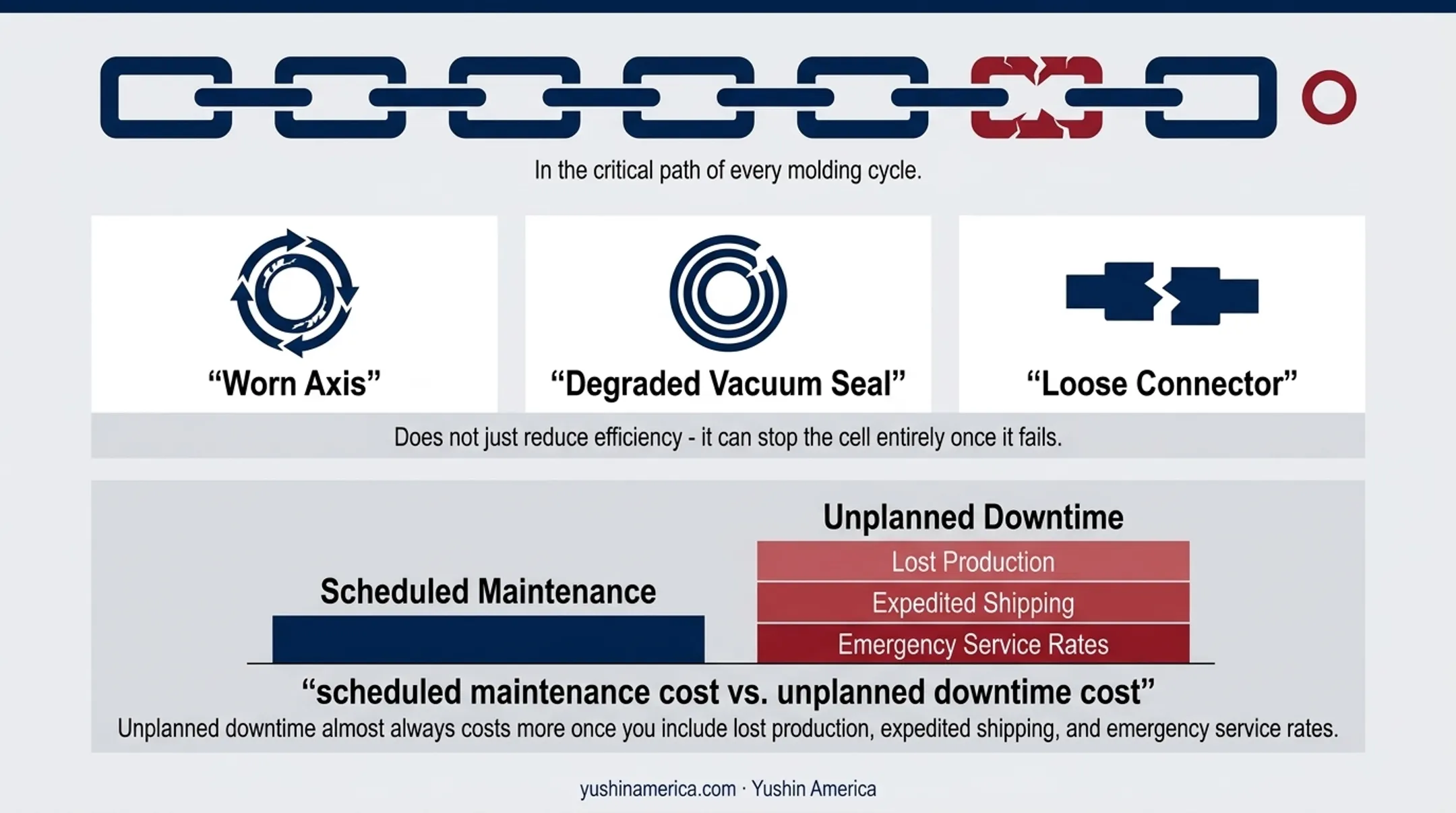

Unlike equipment with buffer capacity or redundancy, a take-out robot is in the critical path of every molding cycle. A worn axis, a degraded vacuum seal, or a loose connector does not just reduce efficiency - it can stop the cell entirely once it fails. Preventive maintenance catches wear before it reaches that point, at a lower cost than emergency repair and expedited parts shipping.

Application engineering note: The cost comparison that matters is not "maintenance cost vs. no maintenance cost" - it is "scheduled maintenance cost vs. unplanned downtime cost." Unplanned downtime almost always costs more once you include lost production, expedited shipping, and emergency service rates.

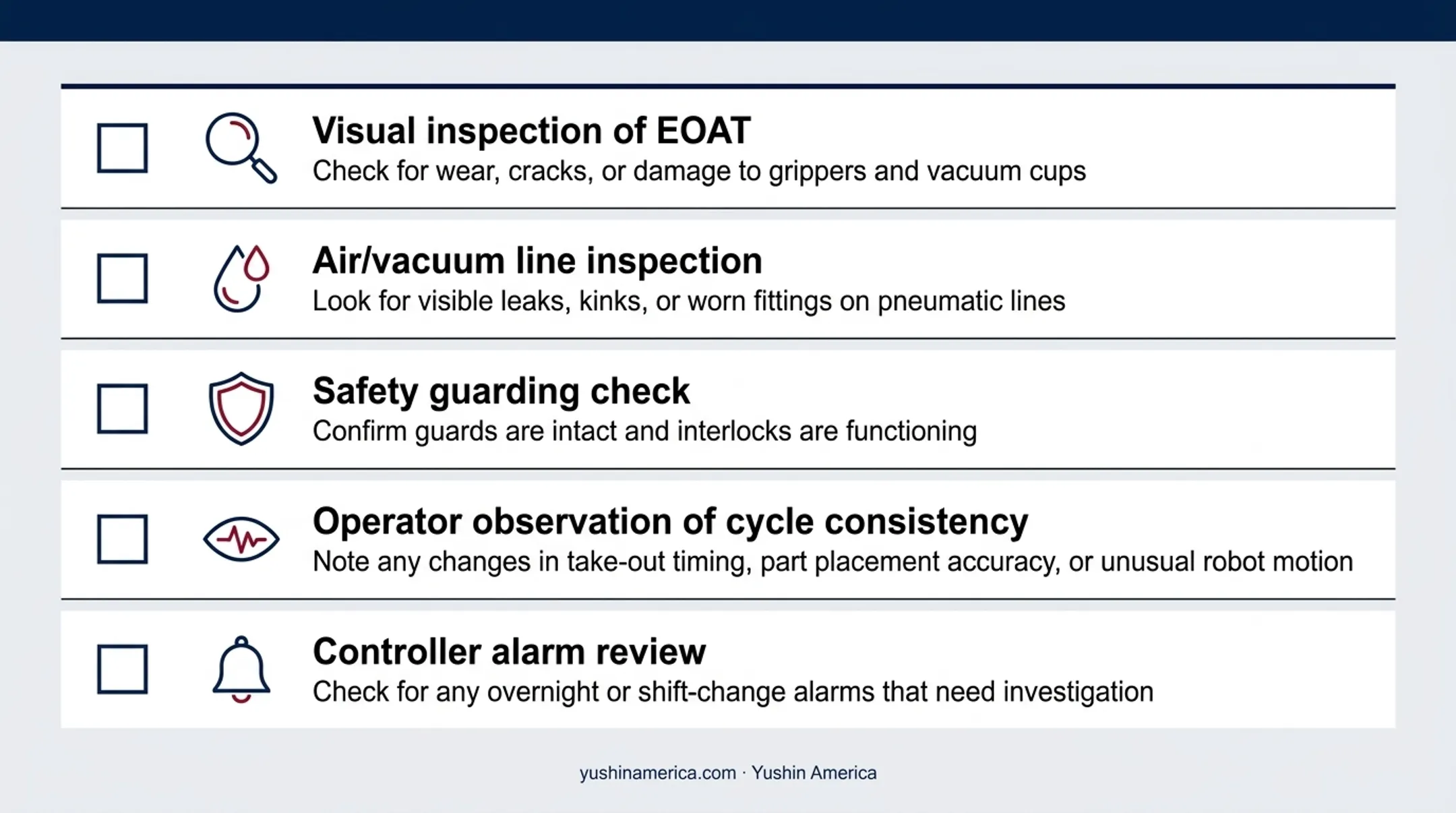

Daily Preventive Maintenance Checklist

  • Visual inspection of EOAT: Check for wear, cracks, or damage to grippers and vacuum cups
  • Air/vacuum line inspection: Look for visible leaks, kinks, or worn fittings on pneumatic lines
  • Safety guarding check: Confirm guards are intact and interlocks are functioning
  • Operator observation of cycle consistency: Note any changes in take-out timing, part placement accuracy, or unusual robot motion
  • Controller alarm review: Check for any overnight or shift-change alarms that need investigation

Weekly Preventive Maintenance Checklist

  • Vacuum/air pressure check: Confirm system pressure is within specified range for the robot model
  • EOAT wear inspection: More detailed check than the daily visual - look for cumulative wear on contact surfaces and grip mechanisms
  • Cable and connector inspection: Check for fraying, loose connections, or wear at flex points
  • Controller alarm log review: Look for patterns of recurring minor faults, not just isolated events
  • Cycle timing spot check: Compare current cycle timing against baseline to catch gradual drift

Monthly Preventive Maintenance Checklist

  • Axis lubrication: Per manufacturer schedule for your specific robot model - do not over-lubricate or under-lubricate relative to spec
  • Connector and wiring inspection: More thorough check of all electrical connections, including inside the controller cabinet
  • Safety system function test: Test emergency stops, interlocks, and safety circuits to confirm proper function
  • Vacuum cup/gripper replacement review: Assess whether contact surfaces need replacement based on wear observed in weekly checks
  • Servo wrist axis check (if equipped): For robots with NC servo wrist units, verify rotation accuracy and check for any developing backlash or wear
  • Belt tension check: Verify tension on belt-driven axes remains within manufacturer spec; adjust or replace as needed to prevent slippage or premature wear

Annual Preventive Maintenance Checklist

  • Comprehensive axis calibration: Full positioning accuracy verification across all axes
  • Full mechanical inspection: Detailed check of structural components, mounting hardware, and beam alignment
  • Controller backup and software review: Confirm current program backups exist and controller software is up to date
  • Complete EOAT rebuild or replacement assessment: Evaluate whether EOAT components have reached end of service life
  • Spare parts inventory review: Confirm critical spare parts are in stock for your specific robot model, based on the past year's actual usage and lead times
  • Maintenance recordkeeping review: Confirm maintenance logs are up to date and accurately document completed inspection, lubrication, and repair activity for each robot

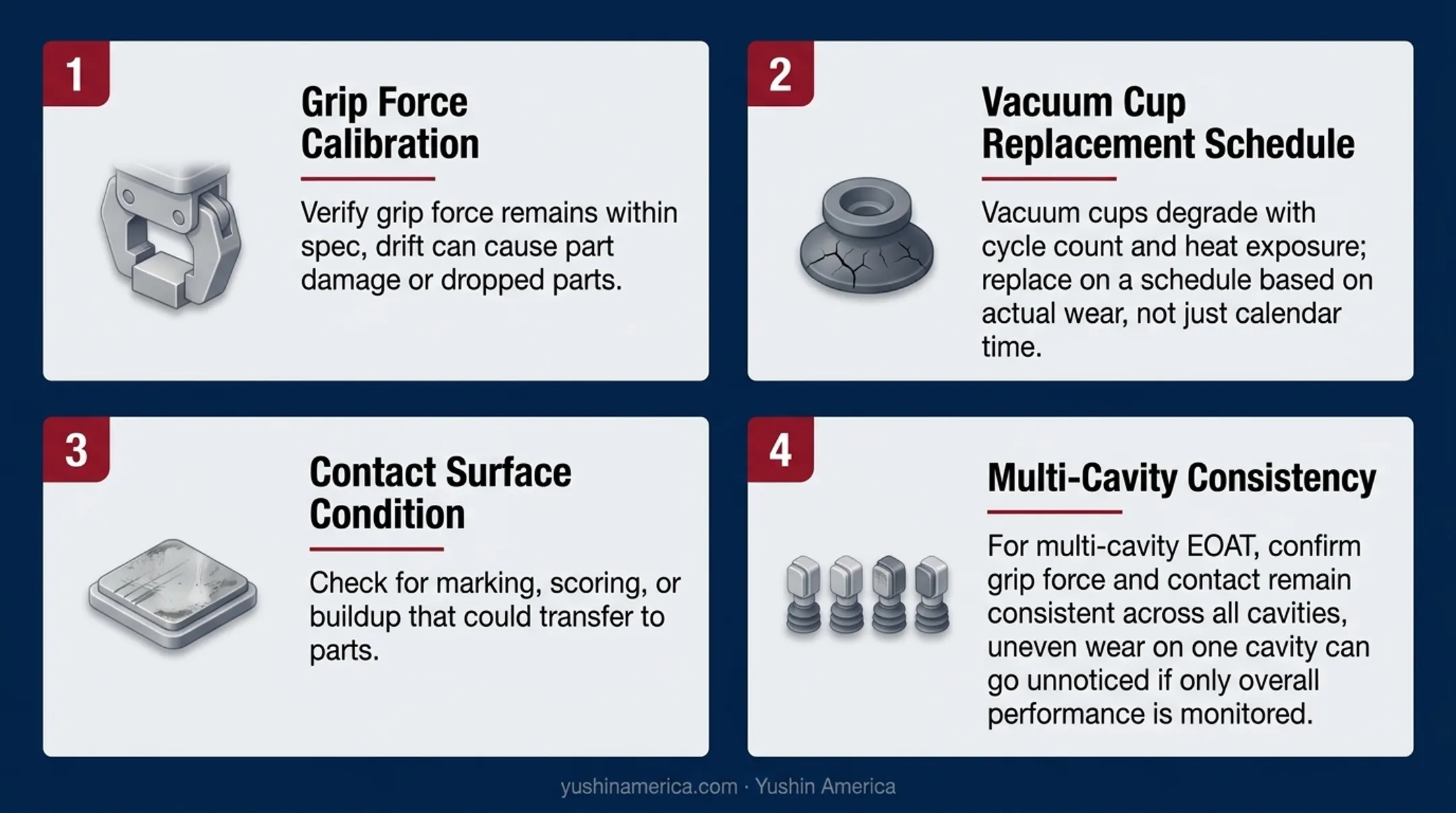

EOAT-Specific Maintenance Considerations

EOAT typically wears faster than the robot's primary structural components because it directly contacts the part on every cycle. Maintenance priorities for EOAT include:

  • Grip force calibration: Verify grip force remains within spec - drift can cause part damage or dropped parts
  • Vacuum cup replacement schedule: Vacuum cups degrade with cycle count and heat exposure; replace on a schedule based on actual wear, not just calendar time
  • Contact surface condition: Check for marking, scoring, or buildup that could transfer to parts
  • Multi-cavity consistency: For multi-cavity EOAT, confirm grip force and contact remain consistent across all cavities - uneven wear on one cavity can go unnoticed if only overall performance is monitored

NC Servo Wrist Unit Maintenance

For robots equipped with NC servo wrist units supporting insert loading, overmolding, or complex orientation applications, maintenance should include:

  • Rotation accuracy verification at scheduled intervals
  • Inspection for backlash or wear at wrist joints
  • Confirmation that programmed positions remain accurate after mold changes

Insert loading and overmolding applications depend on consistent wrist orientation - a developing wrist-axis issue can cause part quality problems before it triggers an outright fault, making scheduled inspection particularly valuable for these applications.

Spare Parts Planning

A preventive maintenance program is only as effective as the parts availability behind it. Key considerations:

  • Identify critical spares for your specific robot model: Not all components need to be stocked, but the ones that would cause extended downtime if unavailable should be.
  • Confirm supplier lead times: Know how long it takes to get a replacement part before you need one urgently.
  • Track actual usage patterns: Base your spare parts stocking decisions on the wear patterns you observe in your own maintenance checks, not just generic recommendations.

Yushin America maintains over $1.3M in spare parts inventory and $2M in pre-assembled robot module inventory, with overnight shipping available on most orders, to support fast turnaround when a part is needed.

Yushin Support for Preventive Maintenance Programs

Yushin America's preventive maintenance services can supplement in-house maintenance staff with scheduled professional inspection for Yushin take-out robots. This is particularly useful for:

  • Plants without dedicated robotics maintenance expertise in-house
  • Applications with complex EOAT or NC servo wrist configurations requiring specialized inspection
  • Facilities standardizing maintenance practices across multiple Yushin robot installations

Yushin manuals provide a detailed maintenance schedule covering routine inspection and service items. In addition, Yushin controllers include an onboard maintenance schedule that helps users track, report, and record maintenance activity as part of regular equipment upkeep.

Yushin America does not provide maintenance services for injection molding machines or robot brands other than Yushin equipment. Preventive maintenance scope is specific to Yushin take-out robots and associated EOAT.

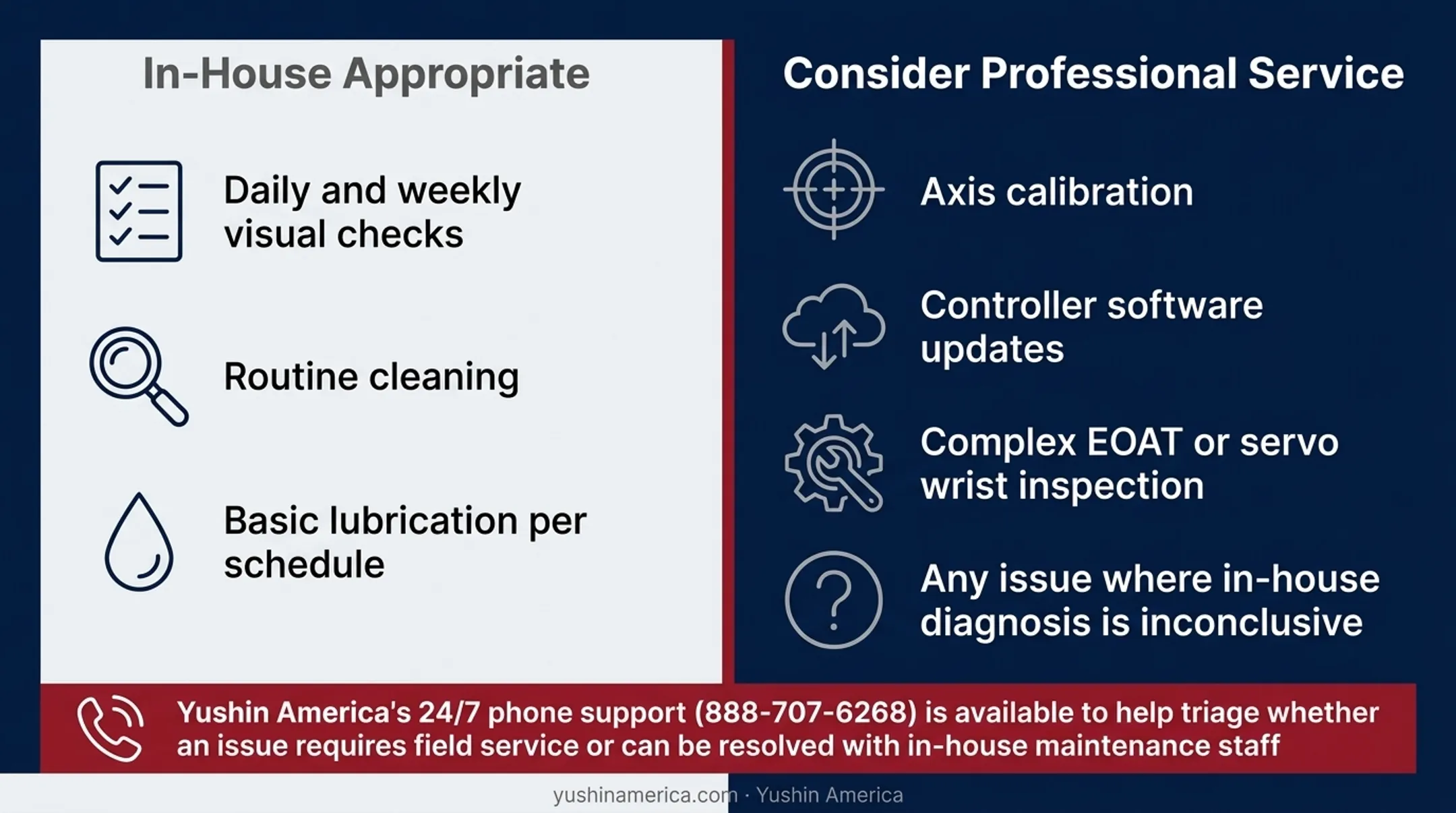

When to Call for Professional Service vs. Handle In-House

  • In-house appropriate: Daily and weekly visual checks, routine cleaning, basic lubrication per schedule
  • Consider professional service: Axis calibration, controller software updates, complex EOAT or servo wrist inspection, and any issue where in-house diagnosis is inconclusive

Yushin America's 24/7 phone support (888-707-6268) is available to help triage whether an issue requires field service or can be resolved with in-house maintenance staff.

Implementation and Support

Yushin America provides preventive maintenance services, field service, parts support, and training for Yushin take-out robot systems across North America.

Frequently Asked Questions

How often should a take-out robot receive preventive maintenance? A structured program typically includes daily visual checks, weekly air/vacuum and EOAT inspections, monthly lubrication and safety system testing, and annual comprehensive calibration. Confirm the specific schedule for your robot model with Yushin America.

What is the most commonly overlooked maintenance item on take-out robots? EOAT wear is frequently underestimated because it degrades gradually and can still function marginally before failing outright. Regular grip force and contact surface checks catch this before it causes part damage or drops.

Does Yushin America service robots from other manufacturers? No. Yushin America's preventive maintenance and field service programs are specific to Yushin take-out robot systems. For other robot brands, contact their manufacturer or authorized service network.

How does spare parts availability affect maintenance planning? If a critical part is not in stock when needed, downtime extends until the part arrives. Yushin America maintains over $1.3M in spare parts inventory and $2M in pre-assembled robot module inventory with overnight shipping to reduce this risk.

Do NC servo wrist units require special maintenance? Yes. Robots equipped with servo wrist units for insert loading or complex orientation should include rotation accuracy checks and wear inspection at wrist joints as part of the maintenance schedule, since developing wrist-axis issues can affect part quality before triggering a controller fault.

Can in-house maintenance staff handle all take-out robot maintenance? Routine daily and weekly checks are typically manageable in-house. More complex tasks - axis calibration, controller software updates, EOAT rebuilds - may benefit from professional service, especially for plants without dedicated robotics maintenance expertise.

Conclusion

A structured preventive maintenance checklist - covering daily visual checks through annual calibration - is the practical foundation for avoiding unplanned take-out robot downtime. EOAT and servo wrist components require particular attention because they wear faster and their degradation can be gradual rather than sudden.

If your plant needs help building or executing a preventive maintenance program for Yushin take-out robots, contact Yushin America to discuss field service, parts planning, and training options for your specific robot models.
