Compact 3 & 4 Axis Cartesian Robots

A standard 3-axis robot (X traverse, Y kick, Z vertical) handles most part take-out and sprue removal tasks. A 4-axis configuration adds a rotational wrist axis, enabling part re-orientation for downstream placement, degating, or in-mold labeling. Choose 4-axis when your cell requires part rotation for conveyor placement, stacking, or assembly operations that a fixed-orientation arm cannot accommodate.

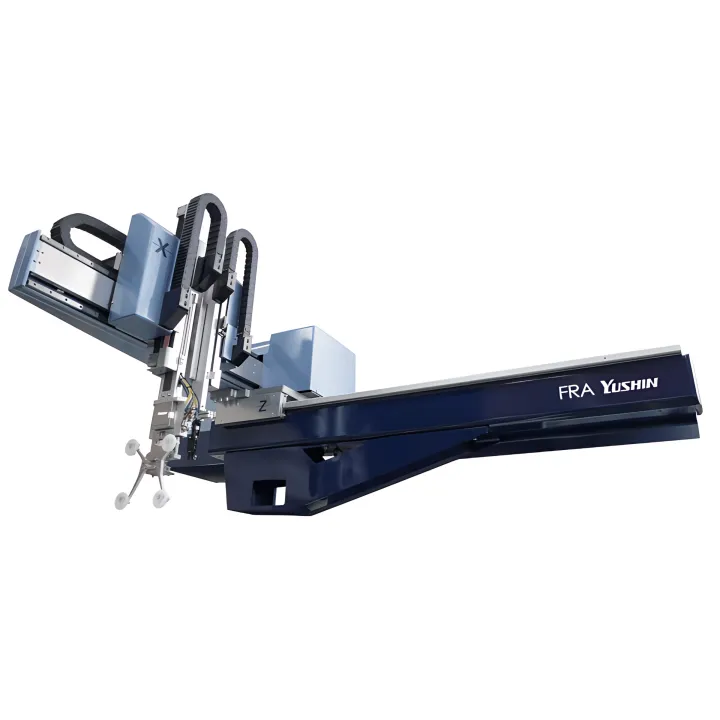

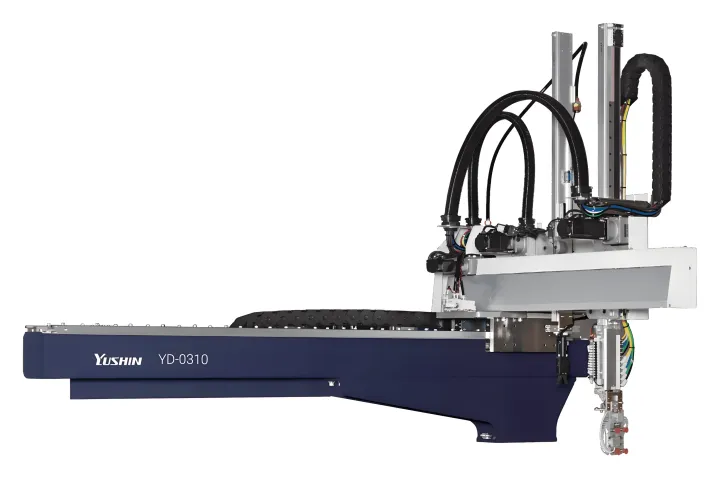

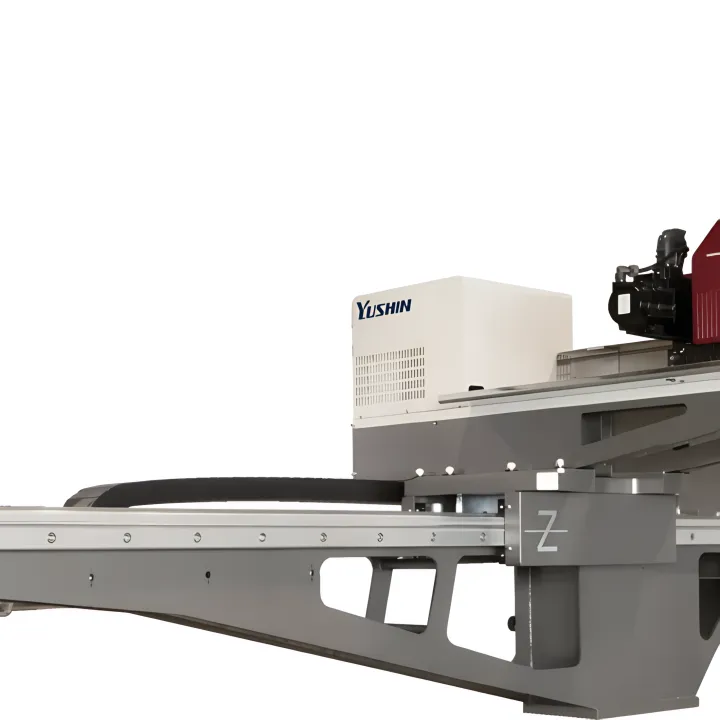

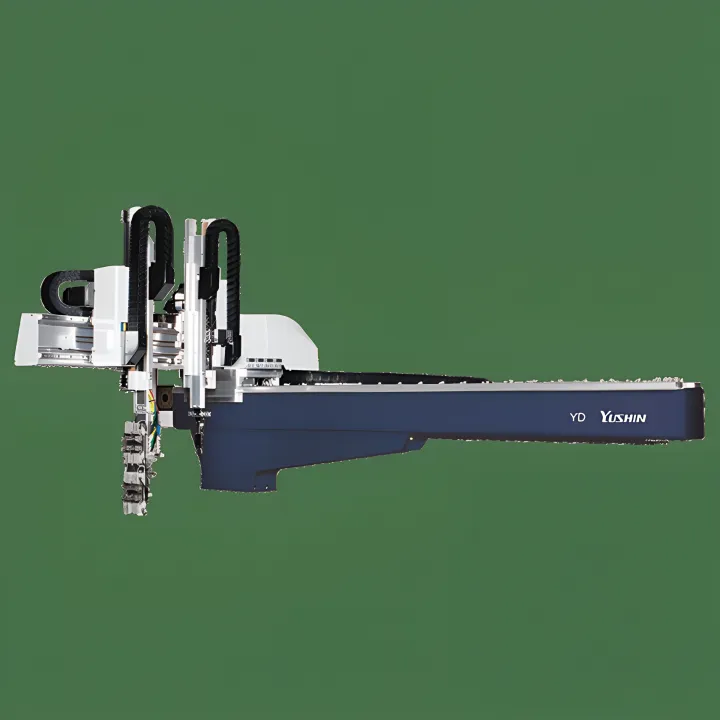

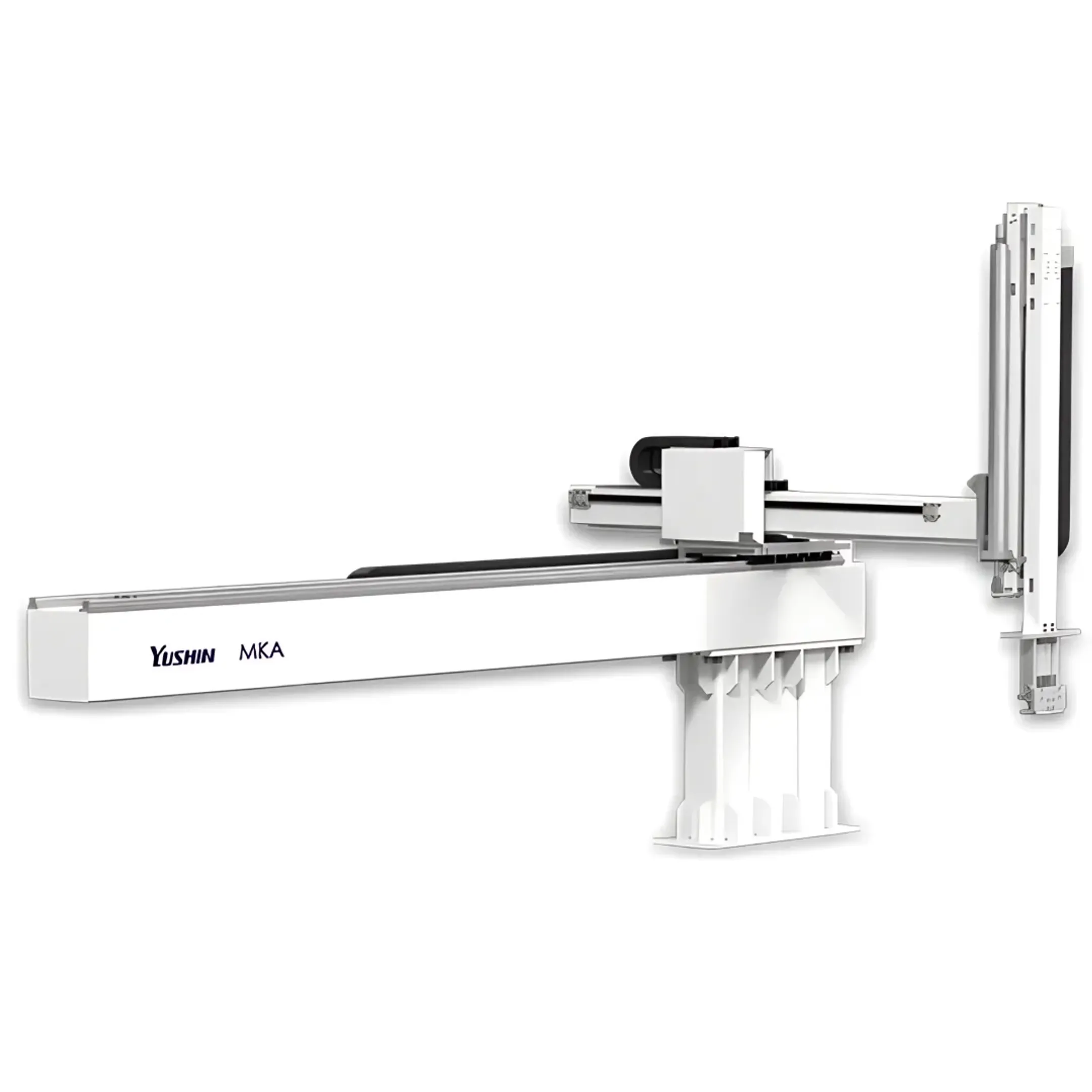

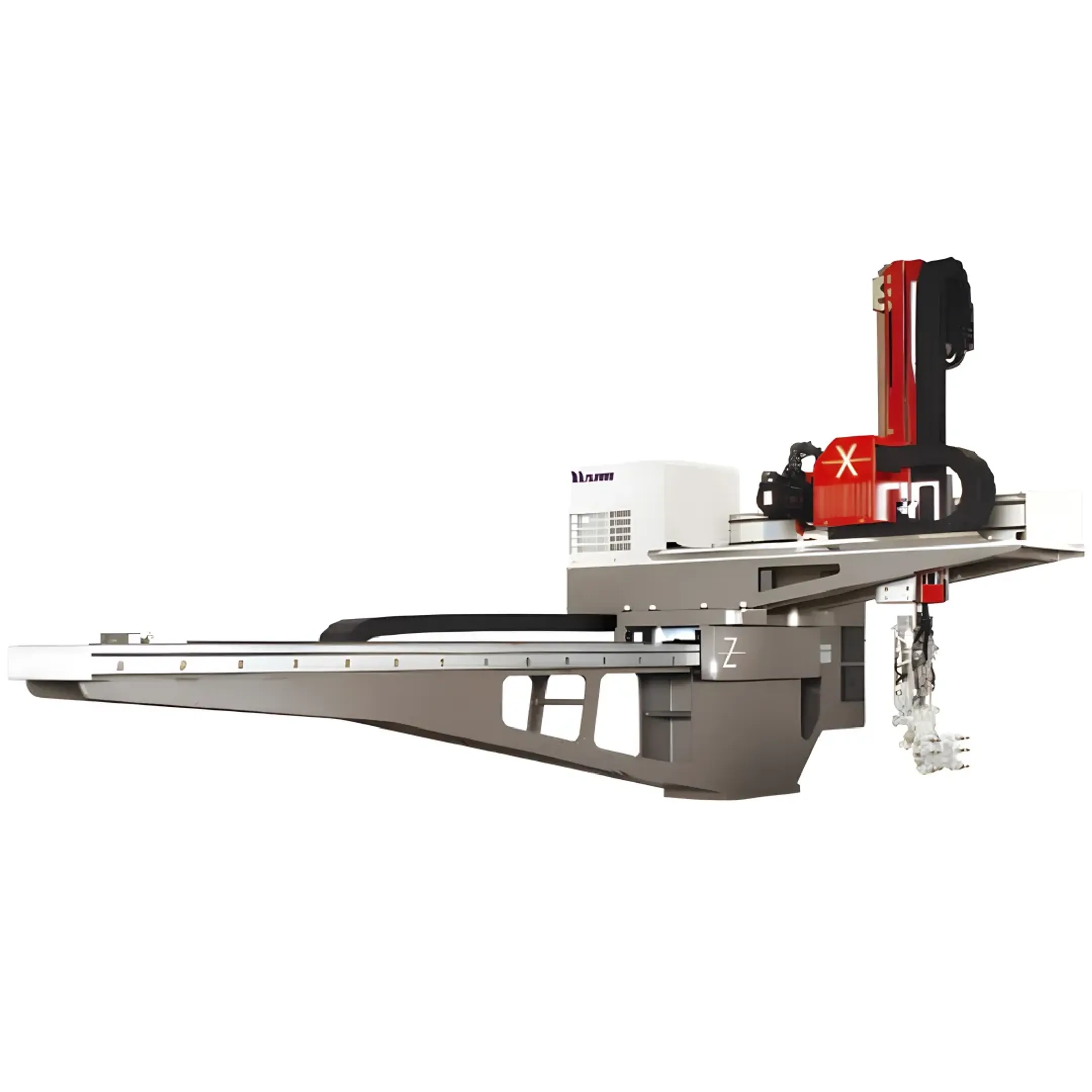

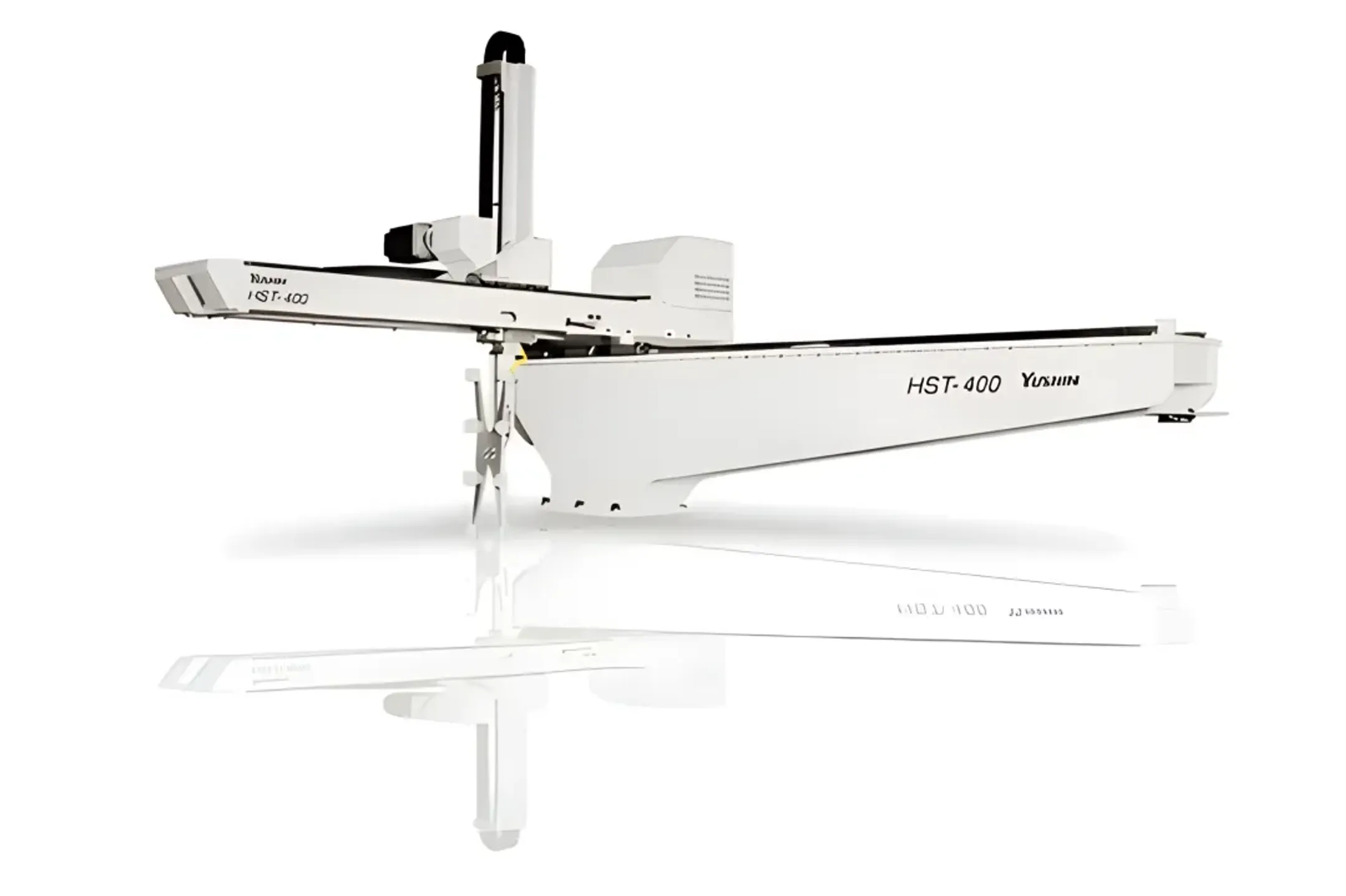

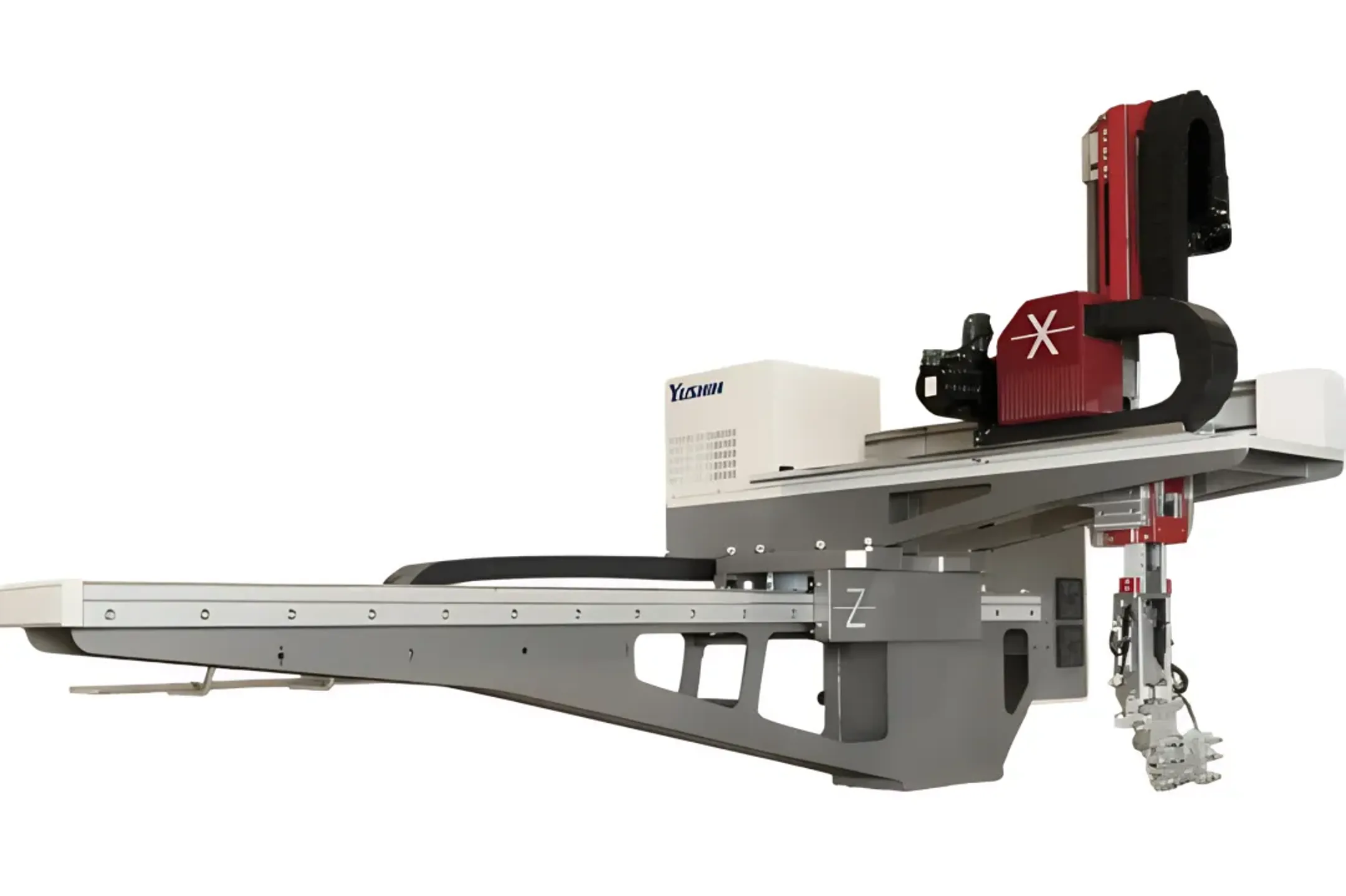

Yushin's compact Cartesian robot lineup spans the full tonnage spectrum. The Servo Picker (YD-0310) covers 30–150-ton presses, the YD/YD2 Series handles 50–850 tons, the CT/CT2 traverses serve 150–1,000-ton clamp-end applications, the HST and HSA high-speed robots suit 100–650-ton packaging cells, and the FRA and MKA-2000S robots extend coverage to 1,500–3,000+ ton large-part IMMs.

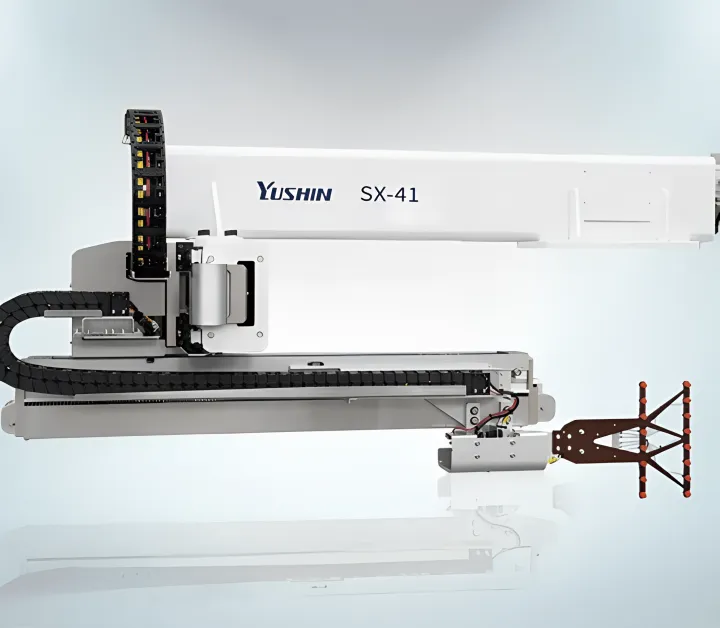

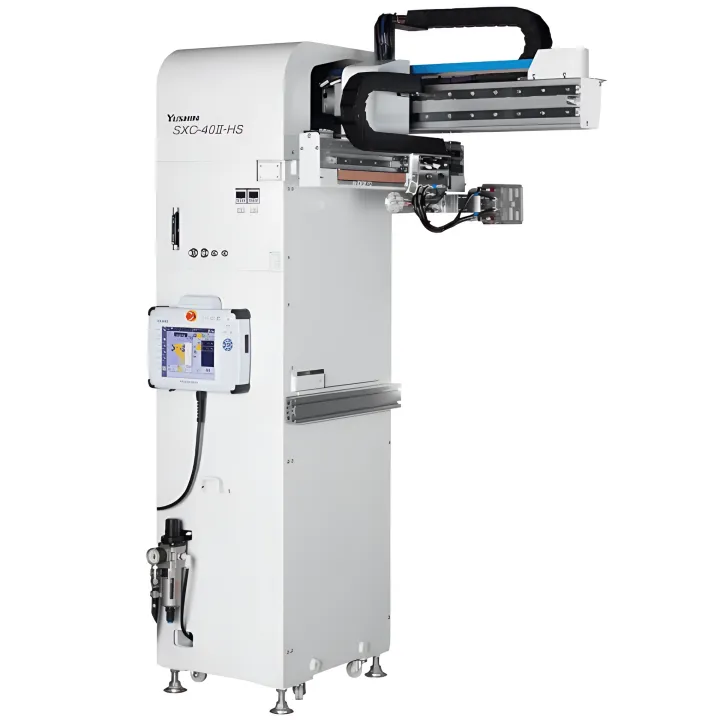

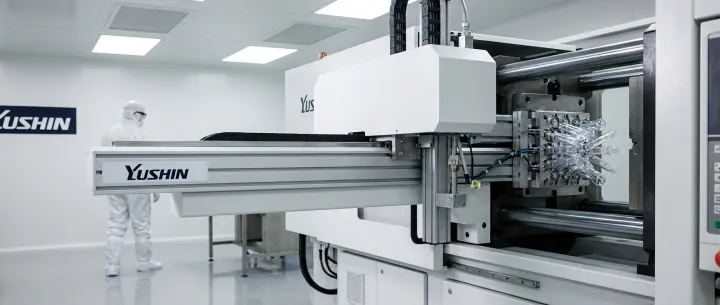

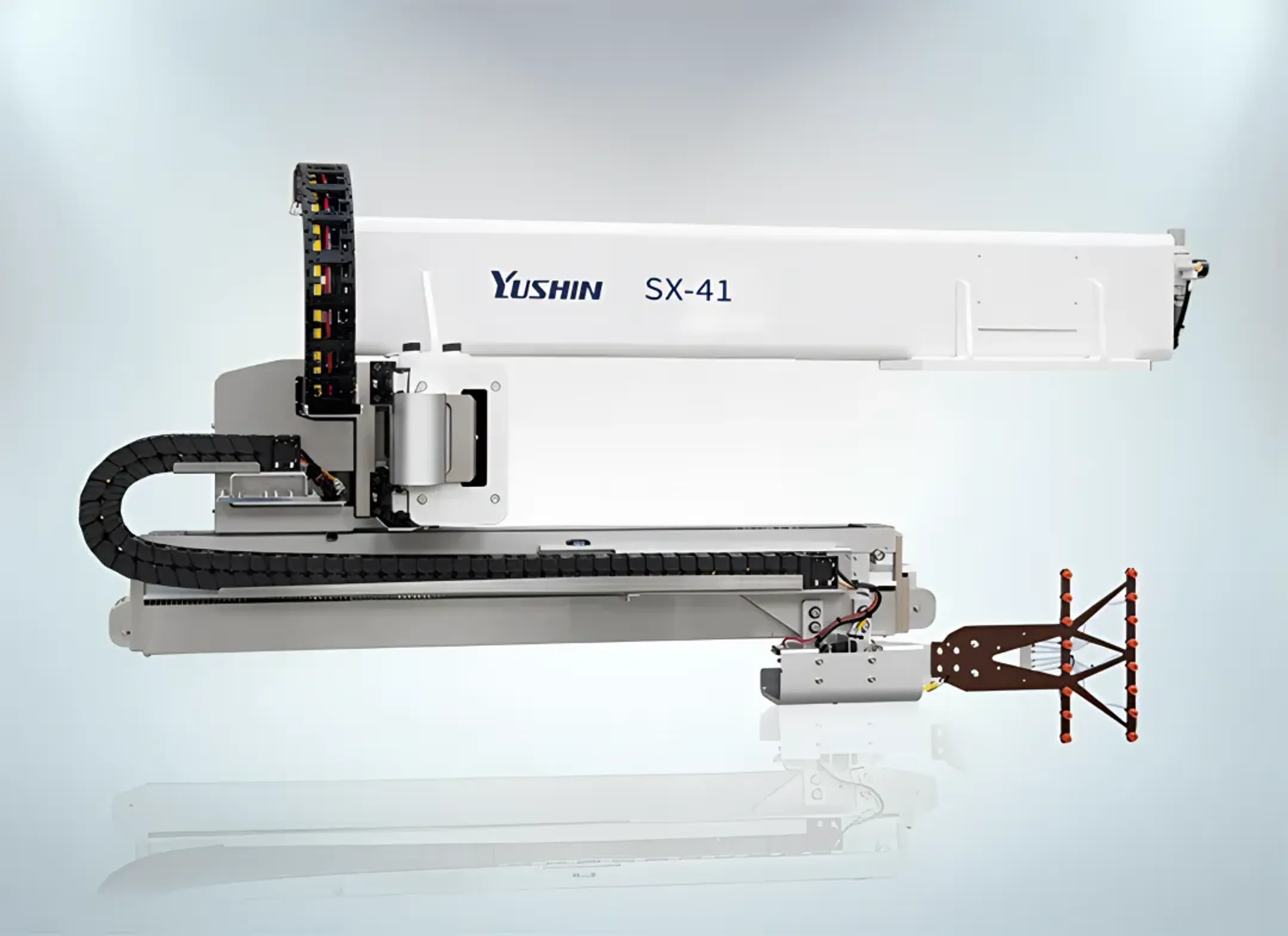

Yes. The SX-41 is rated to ISO Class 6 (per ISO 14644-1) with sealed bearings, FDA-grade lubricants, and a minimal-particulate motion profile configurable to ISO Class 7 or 8 cells. The SXC series for micromolding is also designed for medical and pharma environments. The ECO Vacuum system on select models further reduces air discharge, supporting clean-room particulate requirements.

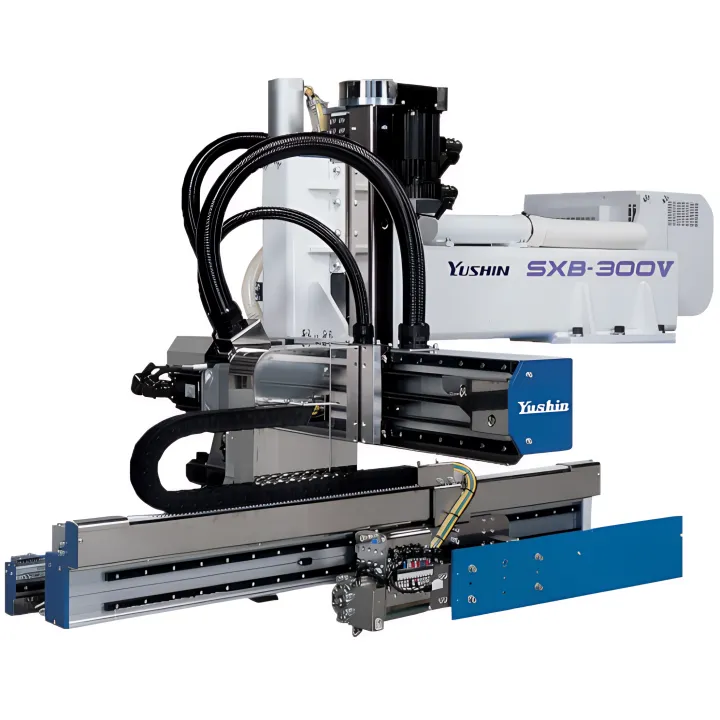

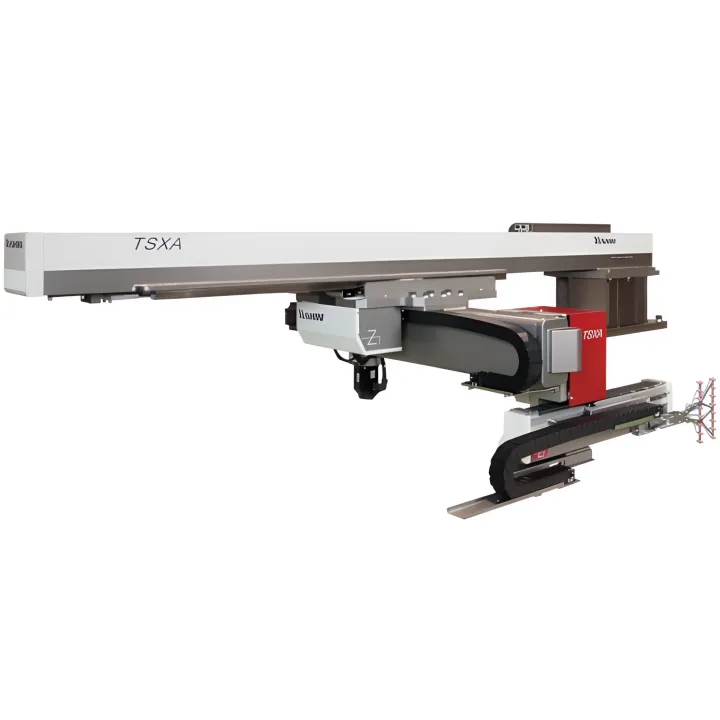

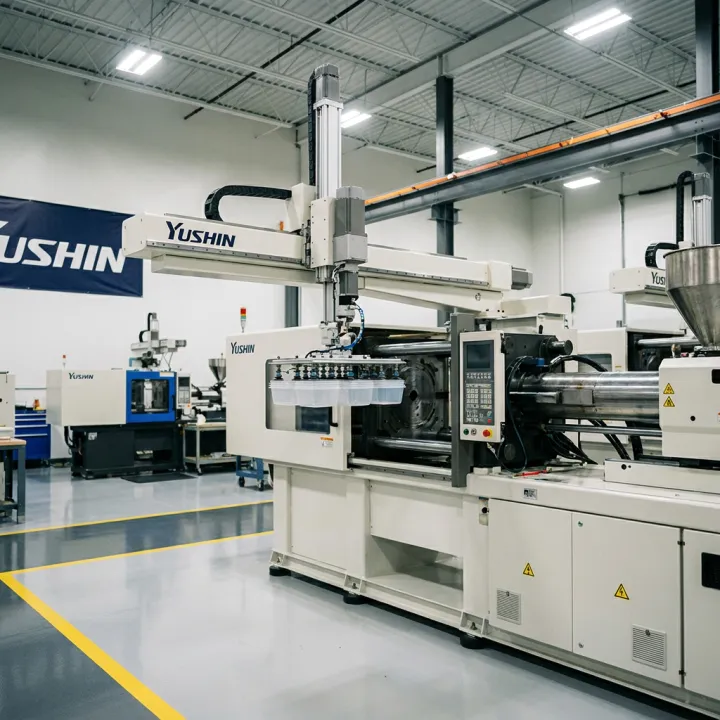

In-mold labeling places a pre-printed label inside the mold before injection, bonding it permanently to the part during the molding cycle. Yushin's IML-ready robots — including the HSA, HST, TSXA, SXB, RC-SE, and FRA Series — support double-wing EOAT configurations that simultaneously place labels and extract finished parts on a single mold-open pass, maximizing cavities per minute and reducing secondary labeling operations.

Yushin's proprietary controllers share a common HMI standard and recipe format across robot families — from the compact Servo Picker and YD Series to high-speed HST/HSA and premium FRA models. This means operators trained on one Yushin robot can transfer programs and operational knowledge across the fleet without retraining, accelerating changeovers and reducing labor costs in multi-press facilities.

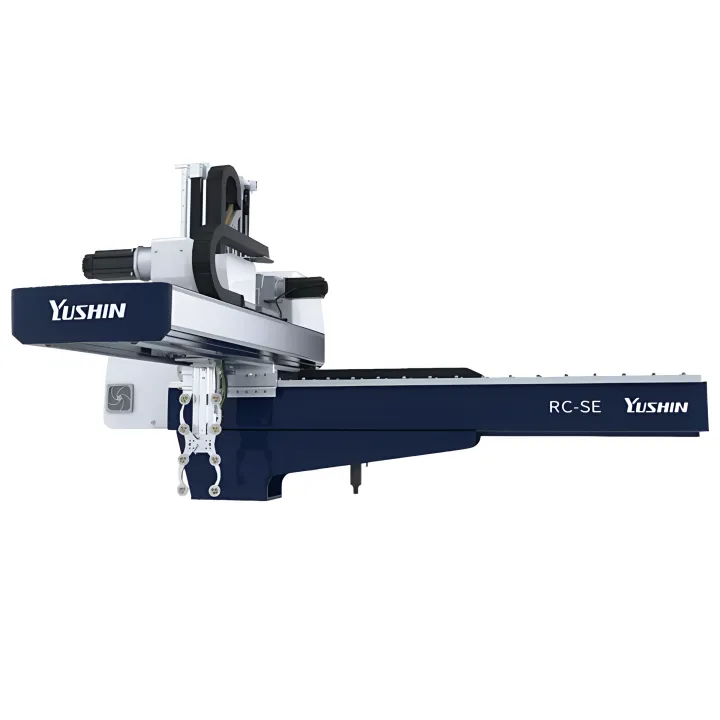

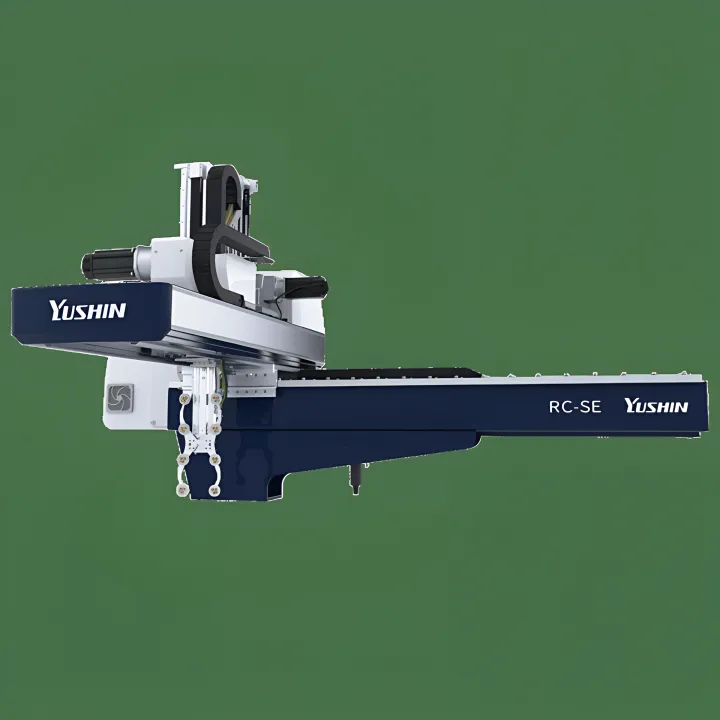

Yushin integrates several energy-saving technologies across its Cartesian robot range. The CT/CT2 Series reduces air consumption by 75% via the ECO Vacuum circuit and cuts power draw by 26%. The RC-SE features Smart ECO Vacuum achieving up to 78% air reduction and a Long Life Mode that lowers power consumption by 5%. The SX-41 reduces air use by up to 29%, directly lowering compressor operating costs in production facilities.
