Automatic Injection Molding Machines for Efficient Production

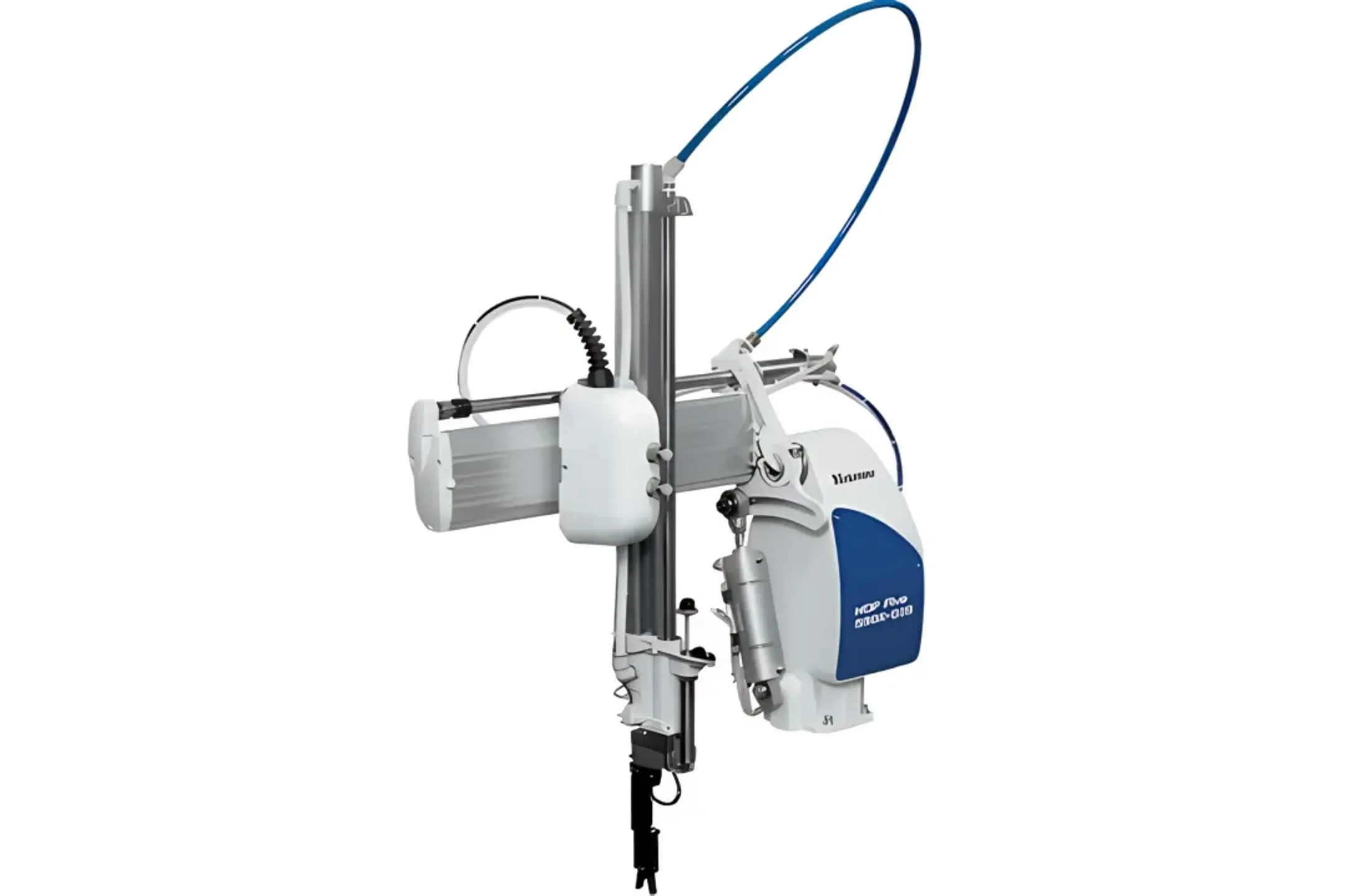

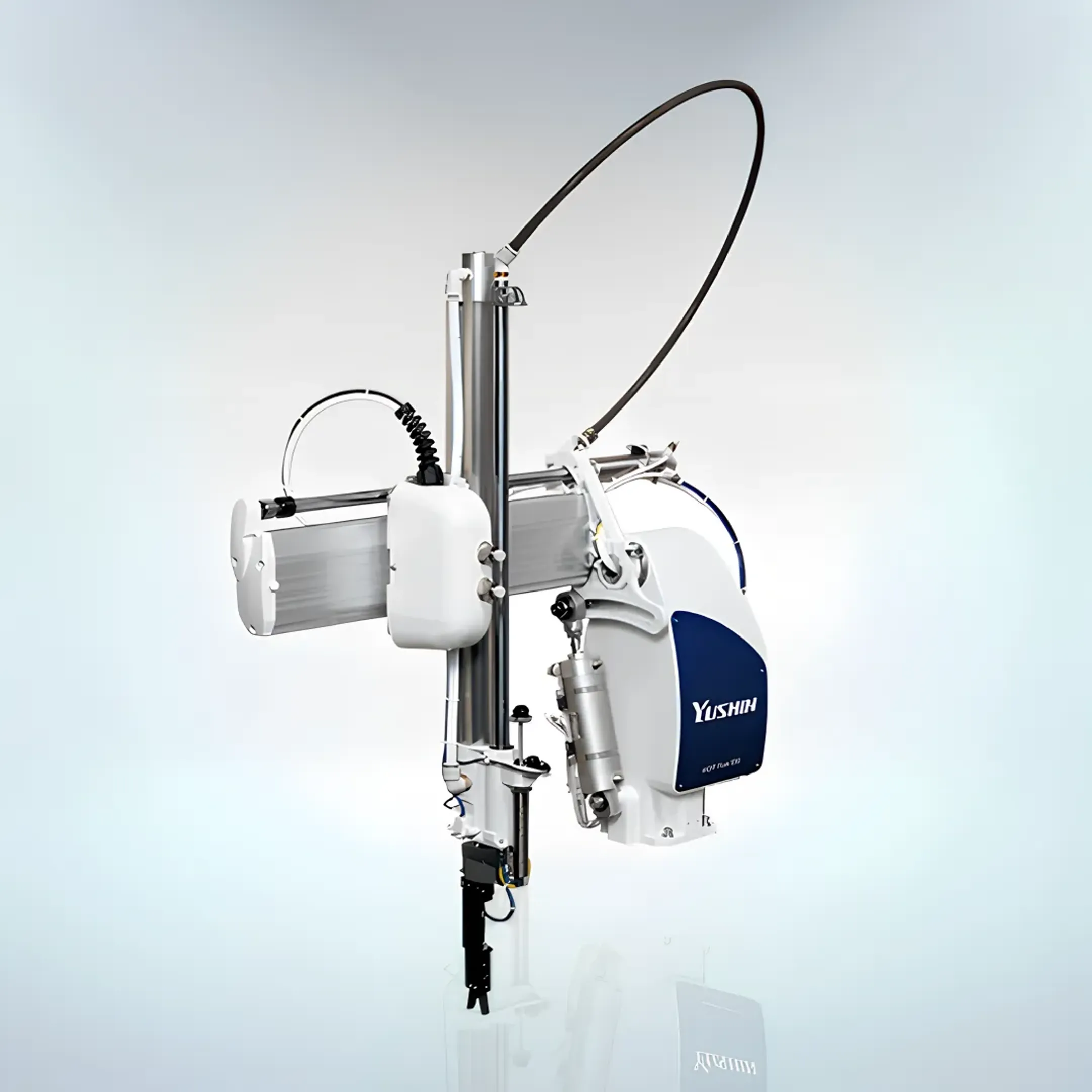

Yushin America offers top-entry traverse robots (YD, HST, HSA, RC-SE, FRA, LA, MKA-2000S), side-entry robots (SX-41, SXB, SXC, TSXA), vertical IMM robots (SVR-C50, V-HOP), pneumatic and servo sprue pickers (HOP Five, N-HOP, Servo Picker), collaborative robots (OB7), and compact palletizing robots (PA Series).

Key selection factors include IMM clamping force (tonnage), part weight and geometry, required cycle time, entry style (top or side), clean-room requirements, and downstream integration needs. Yushin America's robots cover 30 tf to 3,000 tf. Contact a Yushin application specialist with your machine tonnage and part details for a matched recommendation.

In-mold labeling places a pre-printed label inside the mold during the injection cycle, bonding it permanently to the part. Yushin's IML-ready robots — including the TSXA, HSA, SXB, SX-41, and RC-SE — use double-wing EOAT for simultaneous label placement and part extraction on a single mold-open pass, minimizing cycle time.

Yushin's portfolio covers payloads from under 1 kg (sprue pickers) up to 80+ kg (MKA-2000S). Standard YD/YD2 robots handle 5–50 kg; LA Series manages 20–65 kg; MKA-2000S targets 30–80 kg for 800–3,000 ton machines. Side-entry and high-speed robots typically handle 1–15 kg for packaging applications.

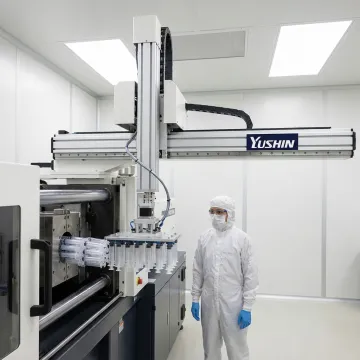

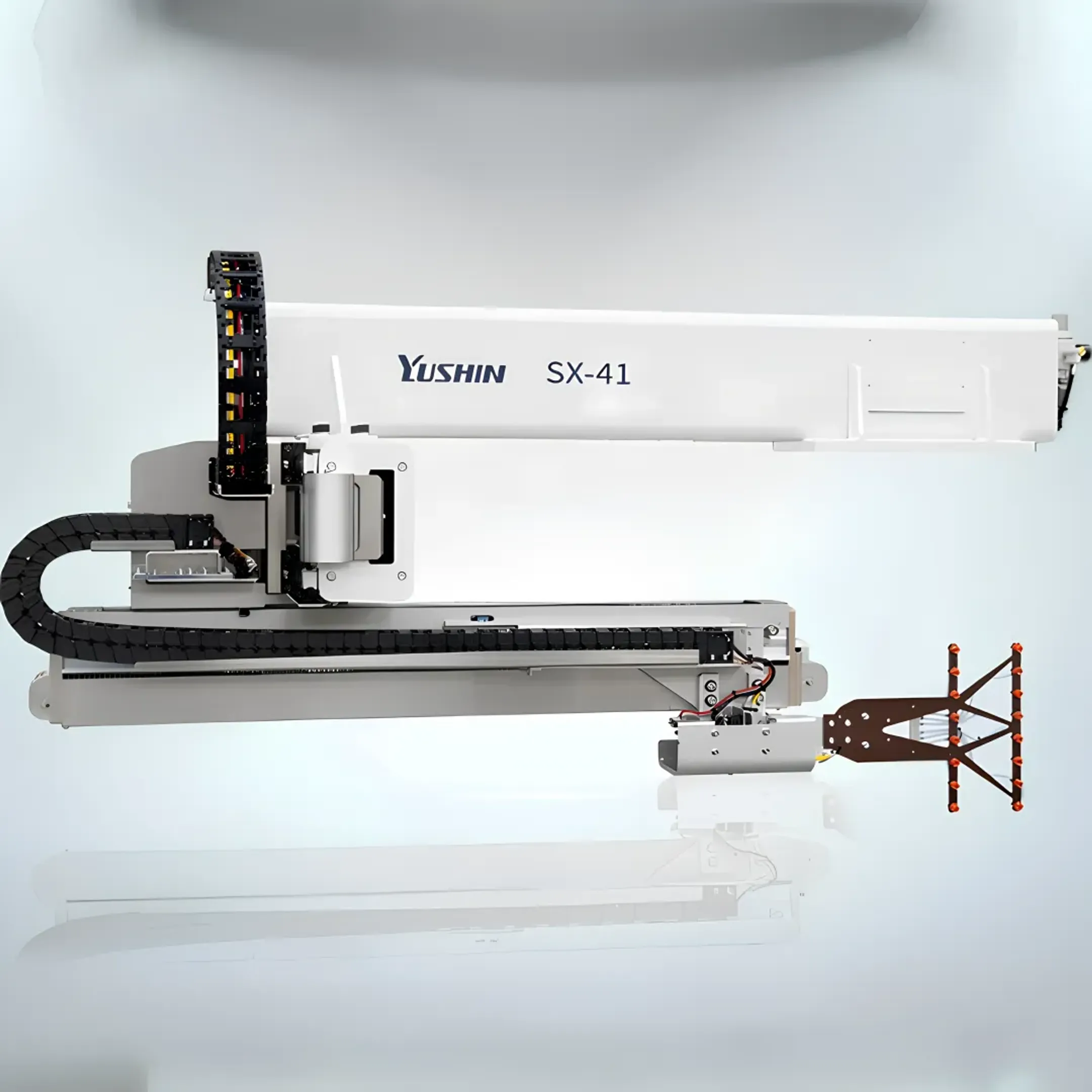

Yes. The SX-41 is ISO Class 6 (ISO 14644-1) compliant with sealed bearings, FDA-grade lubricants, and minimal-particulate motion profiles configurable to ISO Class 7/8. It is used in medical disposables, pharma packaging, and optical molding cells. The PA Series palletizer also supports clean-room environments.

The FRA Series includes INTU LINE IoT Service as standard, enabling real-time remote production monitoring, cycle-time tracking, uptime ratios, error logging, and remote troubleshooting. This supports lights-out facility operation and reduces the need for on-site intervention, lowering labor costs and unplanned downtime across the molding plant.
