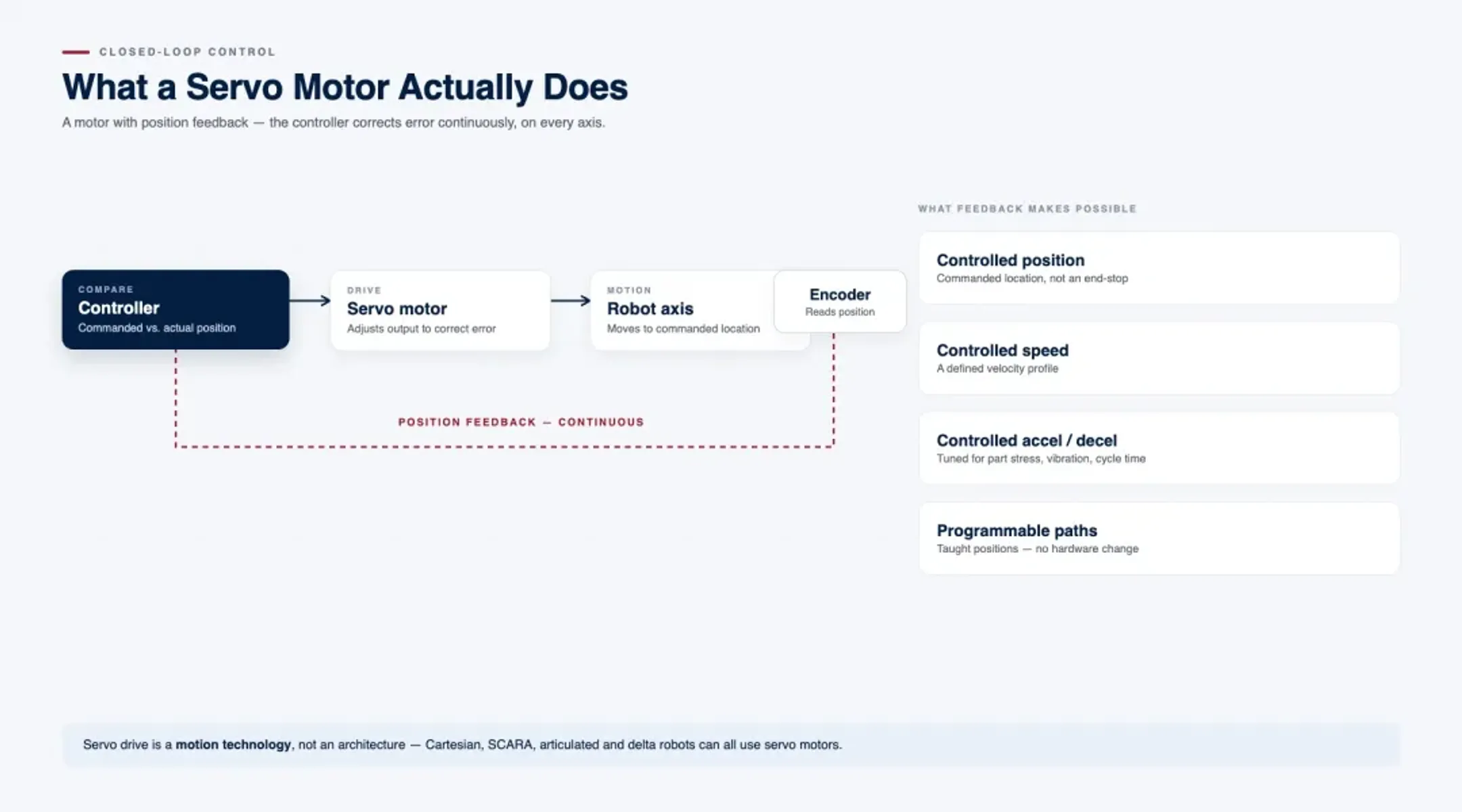

What a Servo Motor Does in a Robot
A servo motor is a motor paired with a position-feedback device, typically an encoder, and a closed-loop controller. The controller reads the encoder continuously, compares actual position to commanded position, and adjusts motor output to correct any error.
In a servo-controlled axis, feedback allows the controller to command and correct position, speed, and motion according to the programmed sequence. This differs from simpler open-loop or fixed-motion drive arrangements that do not provide the same closed-loop control of axis position.
In any robot that uses servo motors on its axes, you get:
- Controlled position - the robot axis goes to the commanded location repeatably, not just to an end-stop
- Controlled speed - the motor ramps up and down along a defined velocity profile rather than slamming at maximum air pressure
- Controlled acceleration and deceleration - the motion profile can be tuned to minimize part stress, vibration, and cycle time simultaneously
- Programmable paths - the robot can be taught multiple positions and sequences without changing hardware
This is the foundation of servo-driven automation. The architecture of the robot - Cartesian, SCARA, articulated, delta - is a separate question. Any of these architectures can use servo drives. A Cartesian take-out robot with servo drives on its X, Y, and Z axes is a servo robot. It does not become an articulated robot because it uses servo motors.
Servo Motion in Injection Molding Take-Out Robots
Injection molding was one of the earliest plastics applications to benefit from servo-driven robots, and Yushin was among the companies that helped pioneer servo motor drive in take-out applications. The advantages over pneumatic predecessors are well established.
Pneumatic take-out systems generally use compressed-air actuators and simpler fixed-motion sequences than fully servo-driven robots. Servo-controlled axes provide greater flexibility to program positions, speeds, acceleration, deceleration, and motion sequences through the controller. The exact capabilities of either system depend on the robot design.
A servo-driven Cartesian take-out robot replaces the air cylinders with servo motors on each linear axis - typically X (horizontal traverse), Y (vertical), and Z (kick stroke into the mold). Each axis has a defined position, speed, and acceleration profile programmed into the controller.
This matters in injection molding for several reasons:
Extraction path programming - the robot can be programmed around the required mold access and extraction path. The repeatability that can be achieved depends on the specific robot model, payload, stroke, EOAT, and operating conditions.
Controlled deceleration into the mold - the robot decelerates as it enters the mold space and accelerates again on exit. This protects the mold, the part, and the robot itself. A pneumatic robot cannot do this without additional hydraulic dampers or shock absorbers.
Part placement accuracy - once the part is removed, the robot places it on a conveyor, in a nest, or on a fixture. Servo control means that placement position is programmed and repeatable, which matters for downstream assembly, vision inspection, or bagging.
Cycle time optimization - servo drives allow position, speed, acceleration, and deceleration to be programmed around the application. This provides more control over the motion sequence and can help optimize take-out time where robot motion is a cycle constraint.
Yushin's YD and YD2 series take-out robots are Cartesian servo systems that operate on this principle. They are engineered for injection molding press extraction, with servo drives on all primary axes and controllers designed around the timing and interface requirements of injection molding machines.

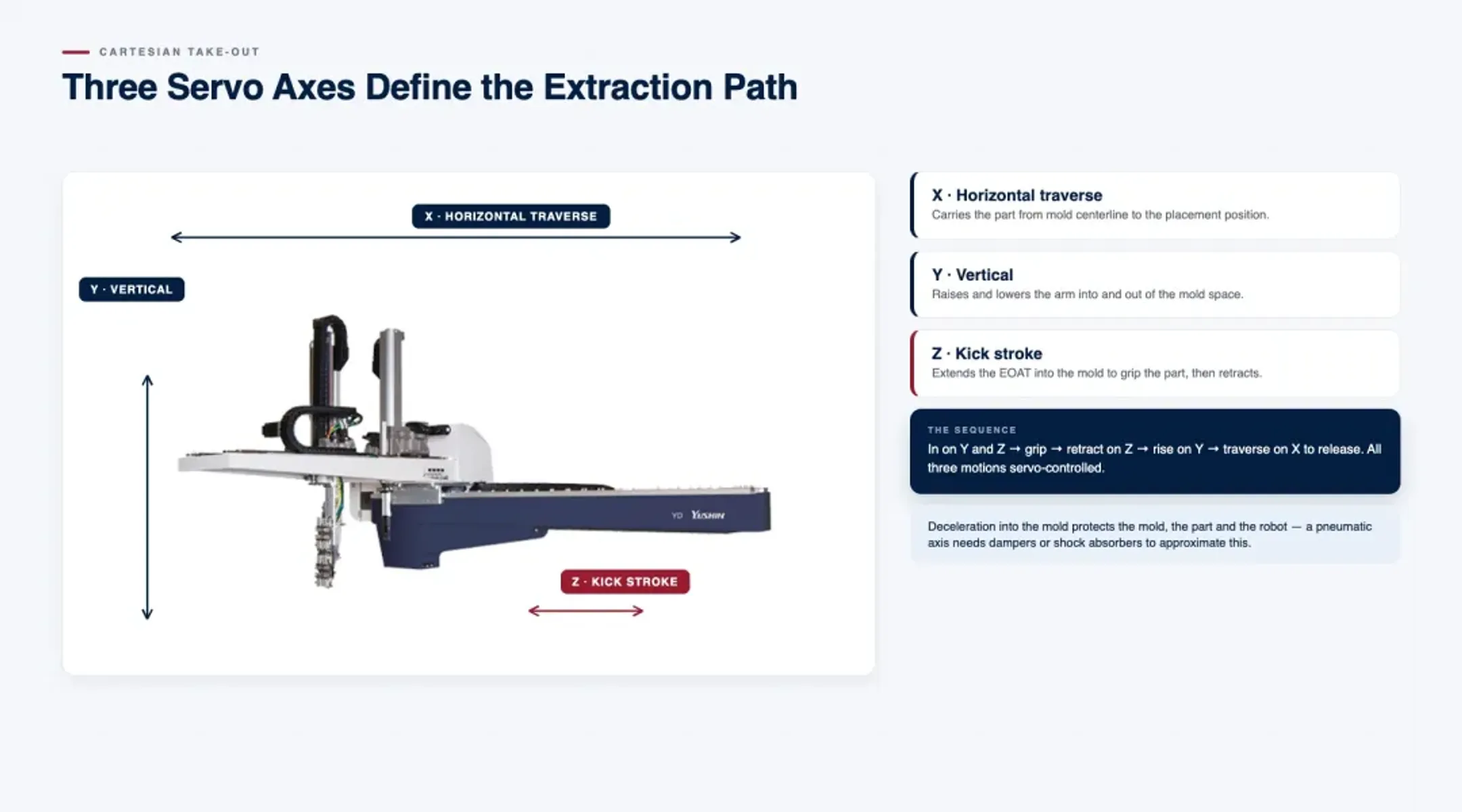

What Axes a Take-Out Robot Actually Uses
A standard Cartesian take-out robot for injection molding operates on three primary linear axes:
- X axis (horizontal traverse) - moves the robot arm horizontally along the top of the press, carrying the part from the mold centerline to the drop or placement position
- Y axis (vertical) - raises and lowers the arm into and out of the mold space
- Z axis (kick stroke) - extends the end-of-arm tooling into the mold to grip the part, then retracts
These three axes define the basic extraction path. The robot travels into the mold on Y and Z, grips the part, retracts on Z, rises on Y, and traverses on X to the release position. All three motions are servo-controlled.
Some applications require the part to be rotated or reoriented after extraction. This is where wrist axes enter the picture.

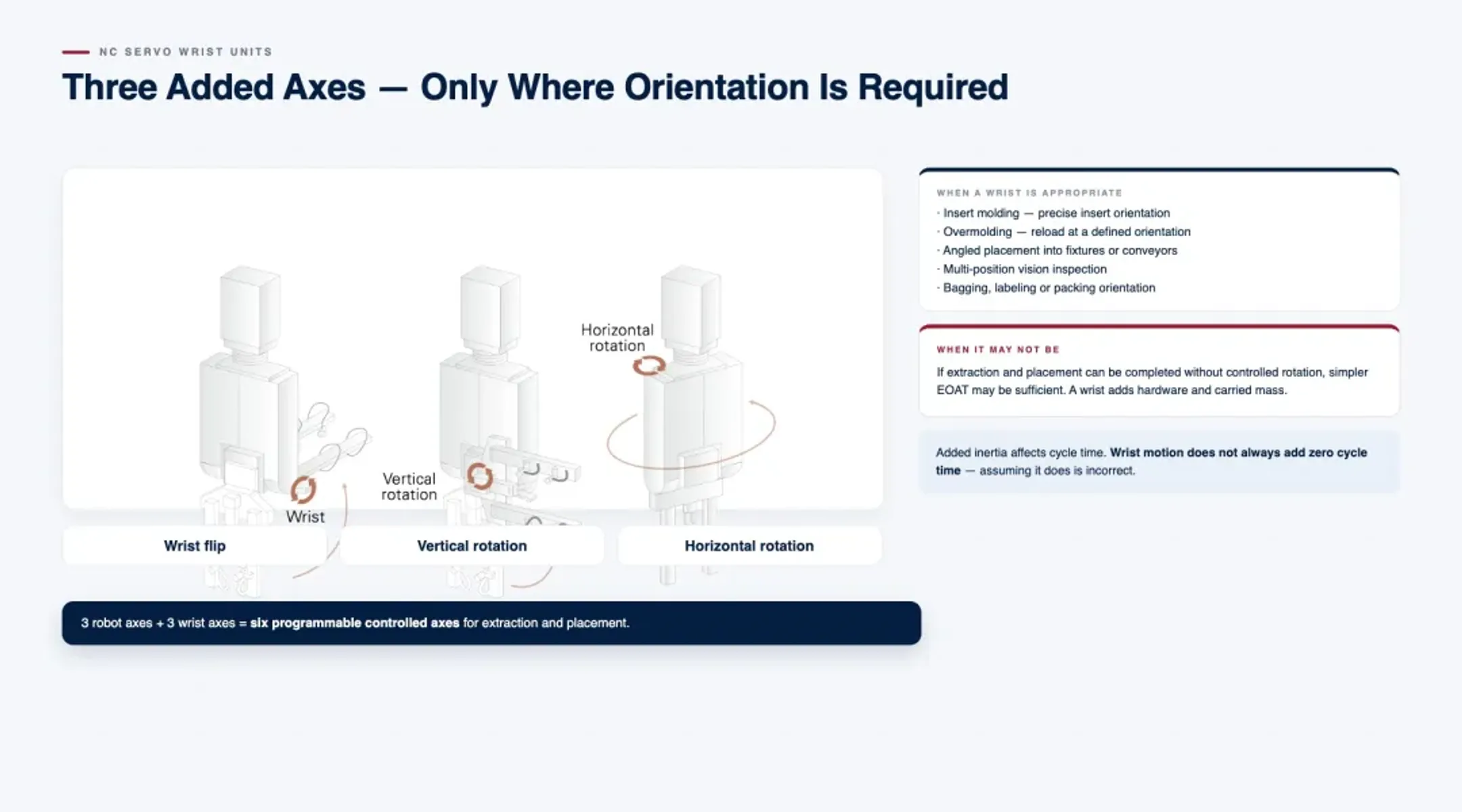

Servo Wrist Units: What They Are and When They Are Actually Needed
A servo wrist unit is an optional attachment that adds controlled rotation axes to the end of the take-out robot arm. Yushin offers NC servo wrist units in two- and three-axis configurations. Depending on configuration, a servo wrist may add:
- Wrist flip - rotation of the part around one axis, useful for reorienting a part from the mold ejection orientation to a conveyor or nest orientation
- Vertical rotation - controlled rotation around the vertical axis
- Horizontal rotation - controlled rotation around the horizontal axis
A three-axis servo wrist, combined with the three primary robot axes, gives the system six programmable controlled axes for extraction and placement.
When a servo wrist is actually appropriate: the key question is whether controlled orientation is a genuine requirement of the application. Applications where a servo wrist addresses a real need include:
- Insert molding - inserts must be loaded into the mold at a precise orientation before each shot
- Overmolding - parts from the first shot must be placed back into the second mold at a defined orientation
- Angled part placement - downstream fixtures, conveyors, or assembly equipment require the part to arrive at a specific angle
- Multi-position inspection - vision systems need to inspect multiple sides of a part, requiring controlled rotation between views
- Downstream orientation requirements - bagging, labeling, or packing equipment requires parts in a specific orientation
When a servo wrist may not be necessary: if the required extraction and placement can be completed without controlled wrist rotation, a simpler EOAT or fixed-orientation approach may be sufficient. A servo wrist adds hardware and carried mass, and its effect on motion and cycle time should be considered during application engineering. For high-speed applications, the additional inertia of a wrist unit affects cycle time in ways that require engineering review - wrist motion does not always add zero cycle time, and the assumption that it does is incorrect.
The right approach is to define what the application actually requires before specifying whether a wrist is needed, and if so, which axes.

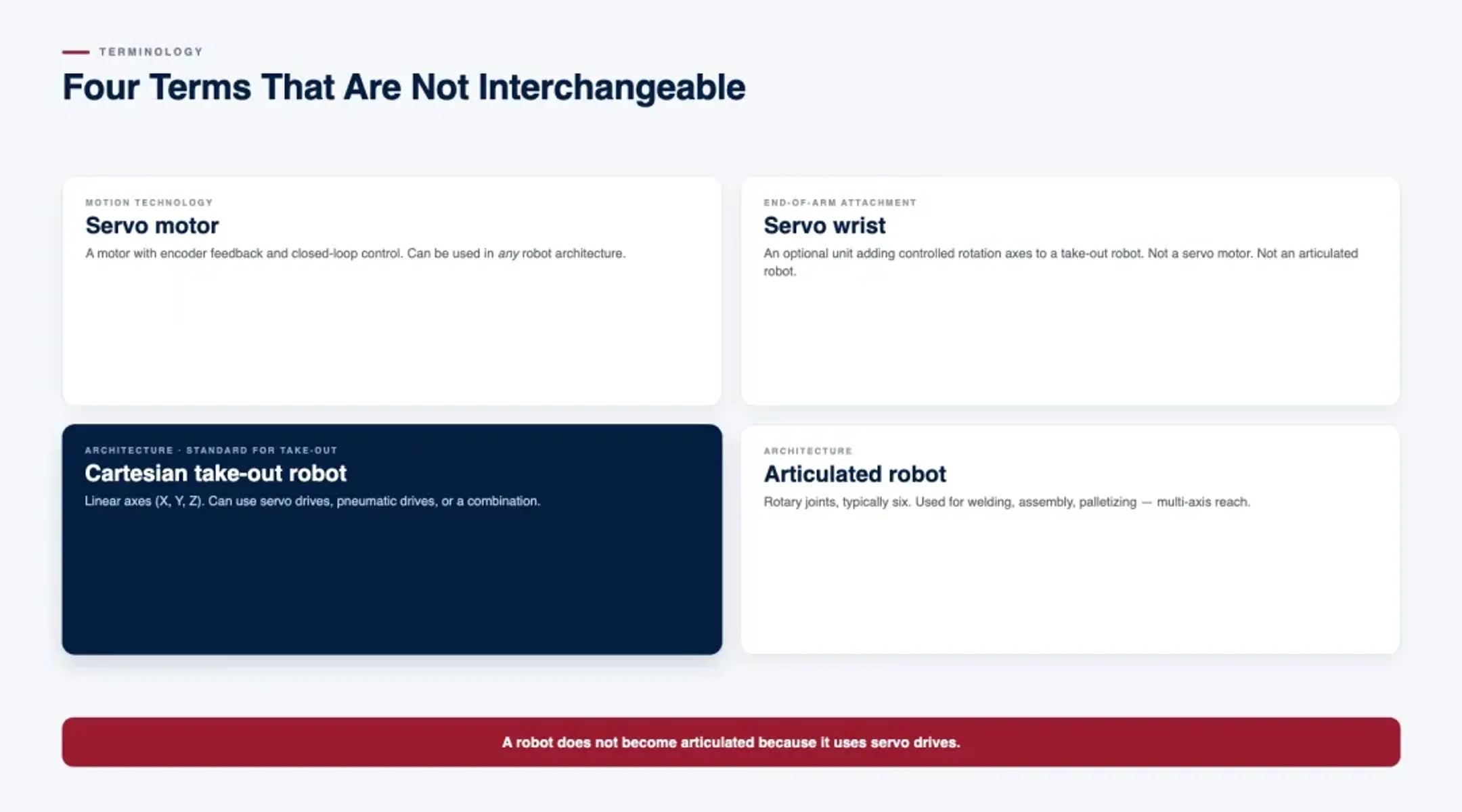

Distinguishing the Terminology Clearly
These terms describe different things and should not be used interchangeably:
Servo motor - a motion control technology. A motor with encoder feedback and closed-loop control. Servo motors can be used in any robot architecture.
Servo wrist - an optional end-of-arm attachment that adds controlled rotation axes to a take-out robot. It is not the same as a servo motor, and not the same as an articulated robot.
Cartesian take-out robot - a robot architecture using linear axes (X, Y, Z). This is the standard architecture for injection molding take-out. It can use servo drives, pneumatic drives, or a combination.
Articulated robot - a robot architecture using rotary joints, typically six. Used for welding, assembly, palletizing, and applications requiring multi-axis reach. A robot does not become articulated because it uses servo drives.
A Yushin YD series robot is a servo-driven Cartesian robot. It uses servo motors on its linear axes. It is not an articulated robot. Adding a servo wrist unit gives it additional controlled orientation axes, but the arm architecture remains Cartesian.
What This Article Is Not About
This article does not cover:
- Servo motor brand comparisons - selecting servo motor manufacturers for OEM machine building is a separate engineering discipline
- Hobby robotics and DIY robot arms - servo-driven hobby arms use similar terminology but operate at completely different scales and requirements
- Articulated industrial robot selection - choosing a six-axis robot for welding, painting, or general assembly involves different criteria than take-out robot selection for injection molding
If you are looking for information on hobby servo arms, OEM motor selection, or articulated robot procurement, this is not the right resource. Yushin America's expertise is injection molding automation.
Defining the Application Before Specifying the Robot
A common specification mistake is selecting the robot configuration before the motion, payload, mold access, orientation, cycle time, and downstream requirements have been defined. The correct sequence is:
Step 1 - Define the required motion: What path must the robot follow to extract the part? What axes does that path require? What are the cycle time constraints?
Step 2 - Define orientation requirements: Does the application require controlled rotation after extraction? If so, around which axes? Is a fixed mechanical deflector an alternative?
Step 3 - Define downstream placement: Where does the part go after extraction? What position and orientation accuracy does downstream equipment require?
Step 4 - Specify the robot: Once the motion, orientation, and placement requirements are defined, the appropriate robot configuration - axis count, stroke lengths, servo wrist or no servo wrist - follows directly from the application.
Additional servo axes should be specified only when the application requires the motion they provide. The appropriate configuration is the one that meets the required extraction, orientation, placement, payload, and cycle-time requirements without unnecessary complexity.
Yushin America's Application Engineering Approach
Yushin Company was founded in Japan in 1973, entered the take-out robot market in 1978, and later innovated the use of servo motor drive in take-out robots. Yushin America was established in 1988 to support the North American market. Today, YD/YD2 robots are among Yushin's standard servo-driven Cartesian take-out platforms for injection molding applications.
For applications where controlled orientation is genuinely required, NC servo wrist units in two- and three-axis configurations extend the system's capability in a way that is engineered for the specific application rather than added by default.
Yushin's application engineering team works from the application requirements outward - defining the extraction path, the downstream placement needs, and the cycle time constraints before recommending a robot configuration. That process is available to any injection molding operation evaluating take-out automation.
If you are defining a take-out application and need to understand which servo axes and wrist configuration your process actually requires, contact Yushin America's application engineering team for a review of your specific press, mold, and downstream handling requirements.
Frequently Asked Questions
What does a servo motor do in a robot?
A servo motor provides closed-loop position, speed, and acceleration control on a robot axis. The controller reads encoder feedback continuously and corrects for error, so the axis moves to a programmed position repeatably and follows a defined velocity profile.
What is the difference between a servo robot arm and a pneumatic robot?
Servo-controlled robots use feedback to control programmed position, speed, acceleration, and deceleration. Pneumatic take-out systems generally use simpler compressed-air motion and may provide fewer programmable motion options, depending on the design. The practical difference is the level of motion control available for the specific application.
What is a servo wrist unit on a take-out robot?
A servo wrist unit is an optional end-of-arm attachment that adds controlled rotation axes to a Cartesian take-out robot. Yushin's NC servo wrist units add up to three rotation axes for applications where controlled part orientation is required, such as insert molding, overmolding, or angled placement.
Does a robot become articulated when it uses servo drives?
No. Robot architecture and drive technology are separate. An articulated robot uses rotary joints. A Cartesian robot uses linear axes. Both can use servo motors. Adding servo drives to a Cartesian robot does not change its architecture.
When is a servo wrist unit actually needed?
A servo wrist is appropriate when the application requires controlled part orientation after extraction - for example, insert loading, overmolding, angled placement, or downstream orientation requirements. For applications where a fixed deflector handles reorientation, or where the mold ejection orientation matches the placement requirement, a wrist unit adds complexity without a corresponding benefit.
How does Yushin America approach take-out robot application engineering?
Yushin's team defines the required motion, orientation, and placement parameters from the application before recommending a robot configuration. The goal is to specify the axes actually needed rather than defaulting to maximum configuration.
