A connector that accepts a threaded brass fastener. A sensor housing with a stainless steel pin locked into a precision bore. A medical disposable with an embedded contact pad. All of these parts share one common requirement: a pre-formed insert must be placed inside the mold cavity before the shot, and it must be in exactly the right position and orientation every single time.
That requirement is simple to state and surprisingly difficult to execute at production volumes. This article covers what injection molding inserts are, why position and orientation accuracy matters so much, and how automation - from engineered end-of-arm tooling through coordinated cell integration - makes reliable insert loading achievable at scale.
What Is an Injection Molding Insert?
An injection molding insert is a pre-formed component - most commonly a metal part - placed inside the open mold cavity before the mold closes and plastic is injected. When the resin fills and solidifies around the insert, the two become a single composite part. The insert is permanently embedded, locked in place mechanically by the plastic that flows into its knurls, undercuts, or grooves.
Common insert types include:
- Threaded metal fasteners (brass, stainless steel, aluminum) for mounting and joining
- Pins and shafts that must protrude precisely from the finished part
- Electrical contacts and terminals that must align to circuit geometry
- Ceramic components for thermal or electrical isolation in tight spaces
- Embedded magnets for sensing or actuation
- Electronic modules and PCBs integrated directly into a housing
Each type serves a different function, but every type shares the same fundamental challenge: the insert must sit in a defined position and orientation before the mold closes, because once plastic flows around it, there is no correcting a misloaded part.
Where the Insert Enters the Molding Sequence
The insert enters the cycle at a precise moment - after the previous finished part has been removed and before the mold closes on the new shot. In a typical automated cell, the robot extracts the finished part on the up-stroke, then loads the insert into the open cavity on the down-stroke before clearing the mold tie-bar area. The mold then closes, plastic is injected, and the cycle continues. The insert-loading step sits inside the press cycle, so any delay or error directly affects cycle time and part quality.

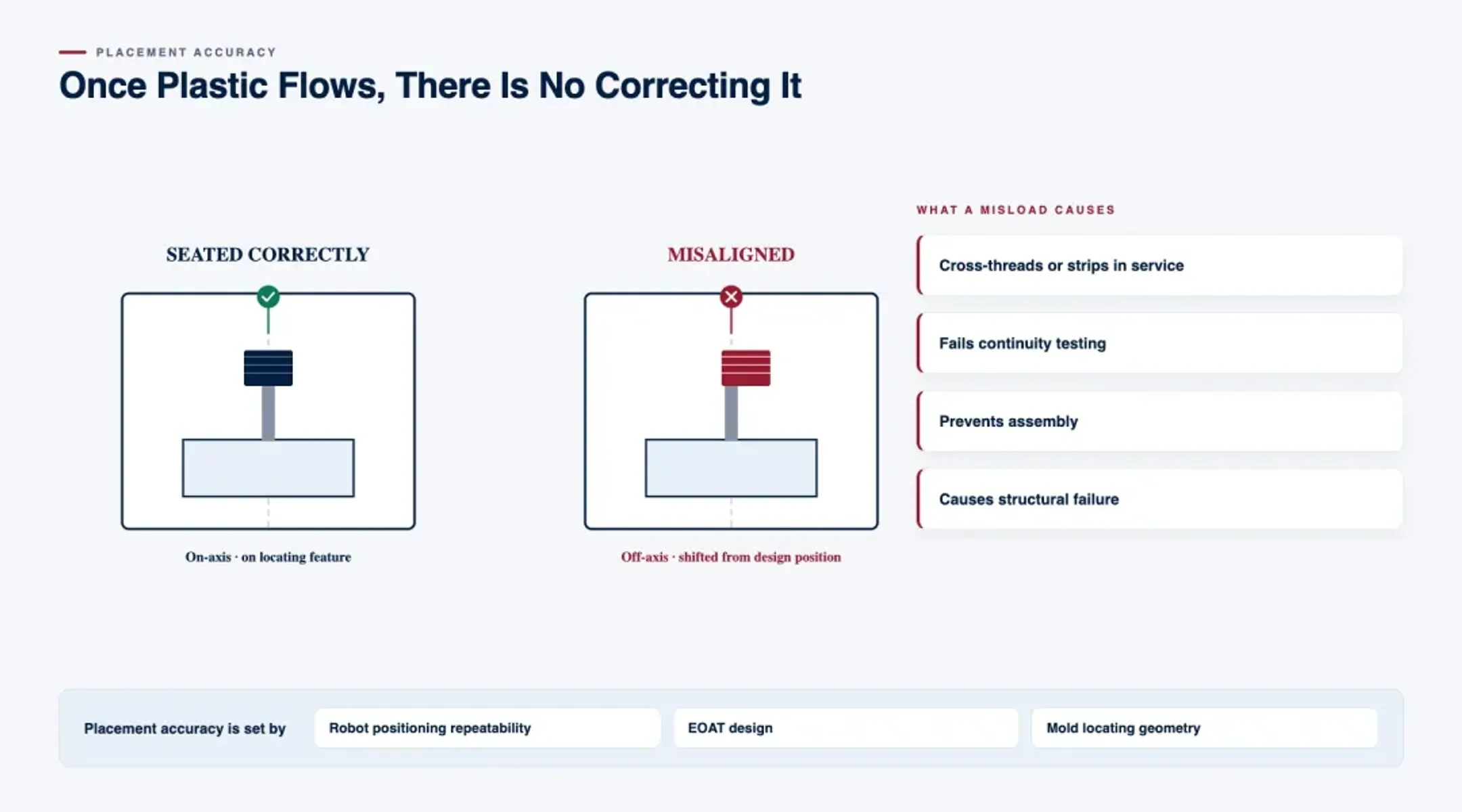

Why Position and Orientation Tolerances Are Tight
A misaligned insert is not a minor cosmetic problem. A threaded insert off-axis by a fraction of a degree will cross-thread or strip in service. An electrical contact shifted even slightly from its design position may fail continuity testing. A pin that protrudes at the wrong angle can prevent assembly or cause structural failure.
Insert-placement requirements can be very tight in precision applications, and the acceptable tolerance depends on the insert, mold, and finished-part specification. Maintaining the same position and orientation manually across long production runs can become difficult as volume increases. Automated presentation, verification, EOAT, and robot motion can improve repeatability where the application justifies automation.
Why Repeated Insert Loading Becomes an Automation Problem
At low volumes, an operator loading inserts by hand is a workable approach. The insert-loading step is brief, and occasional variation can be caught and corrected. As volume scales, the math changes:
- Each manual load introduces variation that compounds across thousands of cycles
- Missed inserts - where the operator loads incorrectly or skips a cavity - create defective parts that may not be detected until assembly or testing
- Operators are working near an opening and closing mold repeatedly across a shift, which is an ergonomic and safety concern that plants are increasingly trying to eliminate
- Inconsistent cycle time from manual loading makes it difficult to optimize press utilization
These are the conditions where automation provides the most durable value: not just speed, but repeatability that a manual process structurally cannot deliver at scale.

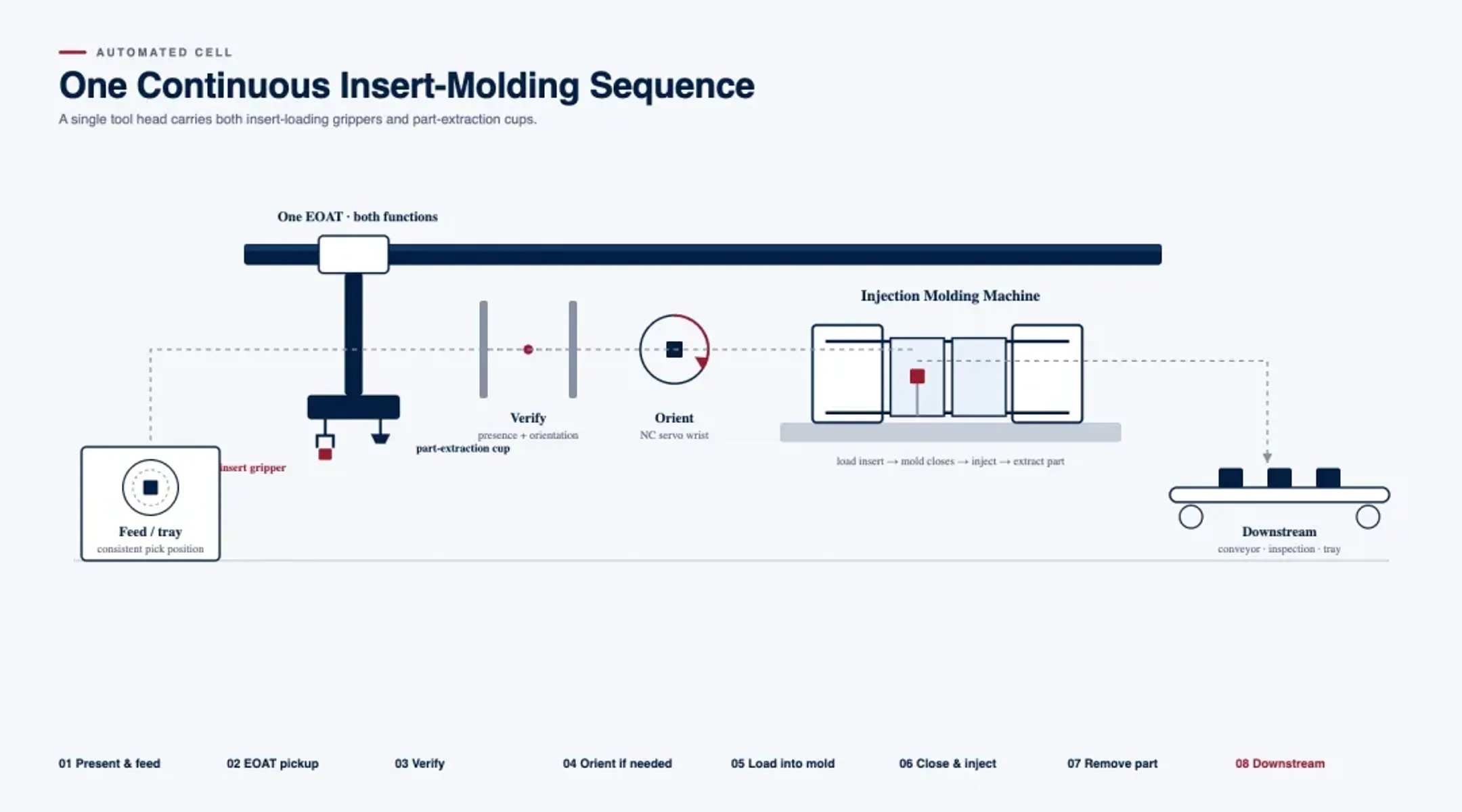

The Full Insert-Molding Automation Sequence
A well-designed insert-molding cell handles the complete cycle, not just the loading step. Here is how the sequence runs from start to finish:
Insert presentation and feed - Inserts are fed from a bowl feeder, tray, or dedicated load station into a consistent pick position. The presentation method depends on insert geometry; some inserts self-orient on a vibratory feeder, while others require trays or fixtures to hold them in a known orientation.
EOAT pickup - The robot's end-of-arm tooling picks the insert from the presentation station. The EOAT is engineered for the specific insert geometry - the pick interface, gripping method, and positional repeatability are all designed around the actual part being handled.
Verification - presence and orientation check - Before entering the mold, sensors confirm that the insert is present in the EOAT and seated correctly. An absent or misoriented insert detected at this stage is rejected before it can cause a defective part or damage tooling. This sensor feedback is integrated into the robot controller, allowing the cell to halt and alert rather than proceed with an error.
Orientation adjustment if needed - Some insert geometries require a change in rotational orientation between the presentation station and the mold. For applications where controlled rotation is required, Yushin NC servo wrist units can provide additional controlled axes for insert orientation. Where the application permits, wrist movement may be coordinated with traverse motion to minimize additional cycle time, but the actual timing depends on the required rotation, EOAT, precision, and robot configuration.
Mold loading - place insert at exact position - The robot enters the mold area and places the insert onto the locating pin or into the cavity feature that holds it during injection. Placement accuracy here is determined by robot positioning repeatability, EOAT design, and the quality of the mold's locating geometry. Tight mold-access clearances are common in insert-molding tooling; compact EOAT design and controlled wrist motion help navigate these constraints.
Mold close and injection - With the insert seated, the robot clears the mold area and the injection sequence continues. The robot and IMM can be interlocked so the required robot-clear and process conditions are confirmed before the molding sequence proceeds. The exact interlock logic depends on the machine, robot, mold, and application design.
Finished-part removal - After the shot completes and the mold opens, the robot re-enters to extract the finished insert-molded part. The EOAT is typically designed to handle both the insert-loading and part-extraction functions - picking up a fresh insert for the next cycle while simultaneously removing the completed part from the previous shot.
Downstream placement - The extracted part is placed onto a conveyor, inspection station, tray, or downstream fixture. For cells with vision inspection downstream, the robot may place parts at a specific orientation to facilitate automated checking of insert position or part geometry.

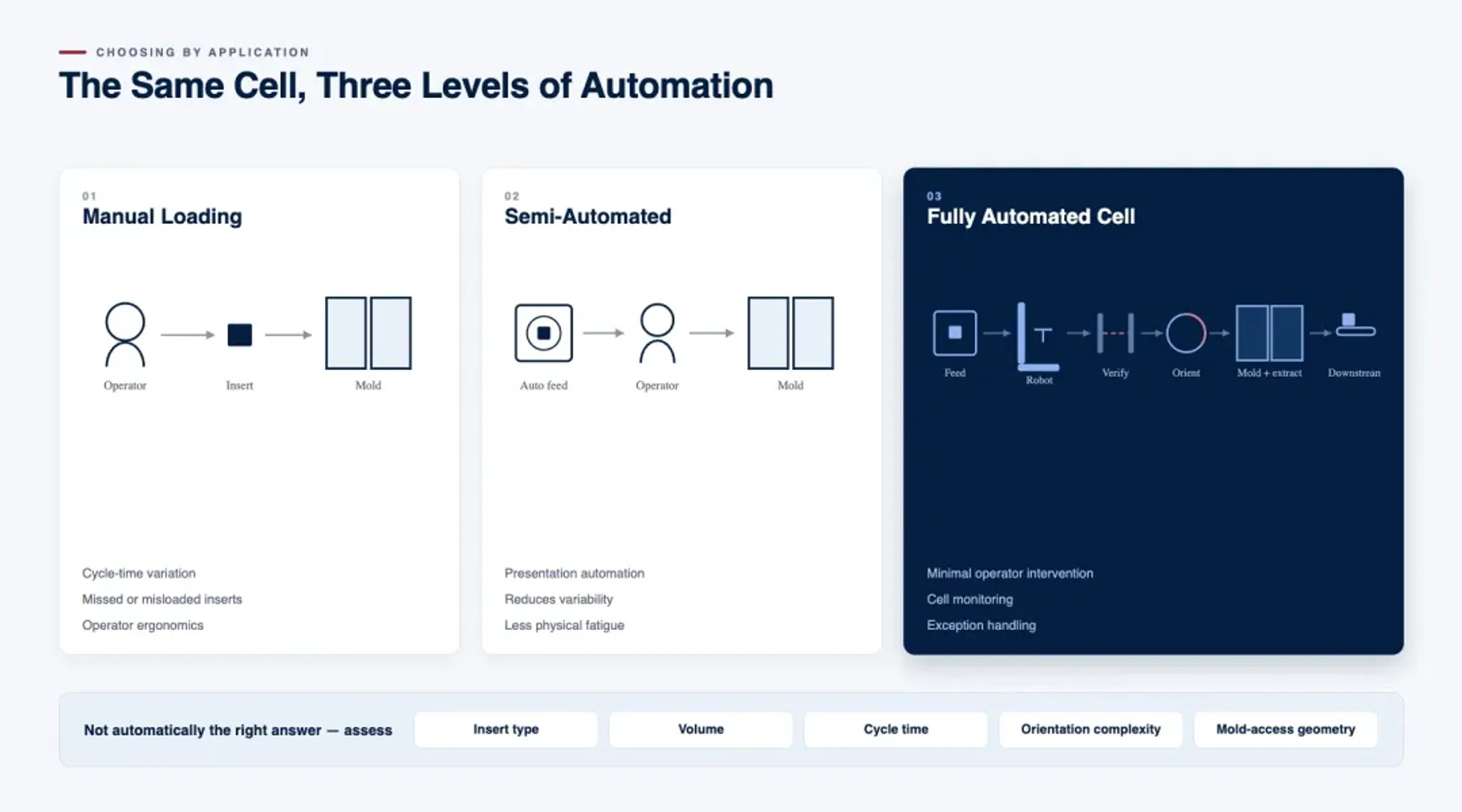

Three Approaches to Insert Loading: Choosing Based on Application
Not every insert-molding application calls for the same level of automation. The right approach depends on insert geometry, volume, cycle time requirements, and orientation complexity.
Manual Loading
An operator places each insert into the mold cavity by hand. This is practical for:
- Very low production volumes where automation capital cost is not justified
- Large or complex inserts that are difficult to feed, orient, or grip automatically
- Development and prototype programs where the process has not yet been defined
The limitations at scale are significant: cycle-time variation, missed or misloaded inserts, operator ergonomics near a moving press, and the inherent inconsistency of manual placement across a full shift.
Semi-Automated Insert Loading
Automated presentation and feeding brings the insert to a consistent pick position, but a human operator assists with placement or verification. This can be a reasonable intermediate step when full automation is not yet feasible, or when insert complexity makes full EOAT integration difficult. The presentation automation reduces variability and physical fatigue even when the final placement step remains manual.
Fully Automated Insert-Molding Cells
A robot handles insert pickup, verification, orientation, and mold placement, as well as finished-part extraction and downstream handling. The cell runs with minimal operator intervention; the operator's role shifts from cycle-by-cycle loading to cell monitoring and exception handling.
Full automation is well-suited when insert geometry is consistent and feedable, volumes are sufficient to justify the EOAT and cell engineering investment, and process repeatability requirements exceed what manual loading can reliably deliver. It is not automatically the right answer for every application - the suitability assessment should cover insert type, volume, cycle time, orientation complexity, and mold-access geometry before committing to a cell design.
Yushin Capabilities for Insert-Molding Automation
Insert molding is a strong application area for Yushin America. The requirements - precise placement, orientation control, simultaneous part extraction, and tight mold-access clearances - are exactly the design parameters that Yushin EOAT and cell engineering are built to address.
Engineered Insert-Molding EOAT
Yushin custom EOAT for insert molding is designed around the specific insert geometry, the placement tolerance the application requires, and the simultaneous need to remove the finished part from the previous shot. A single tool head can carry both the insert-loading grippers and the part-extraction suction cups or grippers, so both operations happen within one mold-open sequence without adding extra time for a tool change.
EOAT design accounts for insert weight and fragility, the locating feature in the mold, and the access path through the tie-bar and mold area. Getting these details right at the design stage is more efficient than discovering clearance or gripper-force problems during first runs.
Insert Load and Unload Stations
Dedicated stations within the cell present inserts to the robot in a consistent, known position. The station design is matched to the insert geometry and feed method. Where insert presence or orientation needs to be confirmed at the station before the robot picks, sensors can be integrated into the station itself rather than relying entirely on in-EOAT detection.
Insert and Part-Presence Detection
Sensors integrated into the EOAT or the load station confirm that an insert is present and correctly seated before the robot proceeds toward the mold. A missing or misoriented insert detected at this stage stops the cycle before a defective part is produced. The detection signal feeds back into the robot controller, enabling the cell to halt and alert the operator without damaging tooling or producing scrap undetected.
NC Servo Wrist Units for Controlled Orientation
Some insert-molding applications require the robot to deliver an insert at a specific rotational orientation that cannot be achieved by a fixed-wrist tool path alone. Yushin NC servo wrist units add controlled rotational axes to the robot's wrist, enabling the robot to rotate the insert to its required angular position during the traverse stroke. This is the relevant capability when orientation at placement is the actual requirement - not a justification for switching to an articulated robot, which is not automatically necessary for insert-loading applications.
The NC servo wrist also helps with mold-access sequences that require the EOAT to reorient between the pick position and the mold cavity. Executing the reorientation during traverse rather than as a separate stationary move avoids adding time to the cycle.
Finished-Part Handling and Downstream Fixtures
Once the insert-molded part is extracted from the mold, it needs to go somewhere - a conveyor, an inspection station, a tray, or a downstream fixture that holds the part at a specific orientation for the next operation. Yushin cell engineering covers these downstream placements as part of the complete automation sequence, not as an afterthought. The handling path after mold extraction is part of the cell design from the start.
Application-Specific Systems Engineering
Insert-molding cells tend to be application-specific. The insert geometry, mold layout, access clearances, cycle-time budget, and part-handling requirements each influence the cell design in ways that cannot be fully standardized. Yushin's application engineering team works through these requirements at the planning stage - reviewing mold-layout considerations for insert handling, recommending insert-handling approaches, and coordinating EOAT requirements with the molding application before tooling commitments are made.
Evaluating Your Insert-Molding Application
Before finalizing an automation system for insert molding, work through each of these questions:
- The insert itself - What is the geometry? Can it be fed and oriented automatically, or does it require manual presentation? What positional and rotational tolerance does the application require at mold loading?
- Presentation method - Bowl feeder, vibratory tray, pallet, or manual station? The presentation method drives the pick position consistency, which in turn drives EOAT design.
- Mold access - What are the clearances between the EOAT and the mold features during the loading stroke? Are there undercuts, slides, or tight spaces that affect the approach path?
- EOAT requirements - Can a single EOAT handle both insert loading and part extraction? What gripping method is appropriate for the insert - vacuum, mechanical gripper, or a combination?
- Orientation needs - Does the insert need to arrive at the cavity at a specific rotational orientation? If so, does that requirement call for servo wrist capability or can it be handled by insert presentation design alone?
- Cycle time - What is the available time for the insert-loading sequence within the press cycle? Is simultaneous orientation during traverse necessary to meet the cycle-time budget?
- Finished-part handling - Where does the extracted part go? Does downstream placement require a specific part orientation for inspection or the next assembly step?
Answering these questions before the automation system is specified helps avoid late design changes and ensures the cell performs to the application's actual requirements from the start.
Conclusion
Reliable insert-molding automation depends on more than robot repeatability alone. Insert presentation, verification, EOAT, orientation, mold access, finished-part extraction, and downstream handling must work as one coordinated sequence. Depending on volume and application complexity, the right solution may be manual, semi-automated, or fully automated.
If you are evaluating insert loading for a molding application, contact Yushin America to review the insert, presentation method, EOAT, required orientation, mold access, cycle time, and finished-part handling before the automation configuration is finalized.
Frequently Asked Questions
What makes insert-molding robot cells different from standard take-out applications?
Insert molding requires the robot to both load the insert before the shot and extract the finished part after. The EOAT must perform both functions in a single mold-open sequence, and insert placement must meet tighter positional tolerances than a standard part-removal application. The cell also requires an insert presentation station and typically insert-presence verification that standard take-out setups do not need.
Does automated insert loading require an articulated robot?
Not automatically. Many insert-molding applications can be handled by servo traverse take-out robots equipped with engineered EOAT and, where orientation control is needed, NC servo wrist units. Articulated robots may be appropriate for specific applications with complex mold-access paths or multi-directional insert loading, but they are not a default requirement for the category.
How is insert orientation handled in automated cells?
Orientation can be addressed at the presentation stage (bowl feeders or trays that deliver inserts in a known orientation), at the pick point (through fixture design), or during traverse (using NC servo wrist units to rotate the insert to the required angular position before mold entry). The right approach depends on the insert geometry, the required accuracy, and the cycle-time budget.
What happens if the robot detects a missing or misoriented insert?
With sensor feedback integrated into the EOAT or load station, a missing or misoriented insert triggers an alarm and halts the cycle before the mold closes. The cell does not proceed with an error. This is a critical safeguard: an absent or misloaded insert that makes it into the mold produces a defective part and can damage the mold's locating pin or cavity features.
Can the same EOAT handle both insert loading and finished-part extraction?
In suitable applications, yes. Yushin supports dual-function insert-molding EOAT configurations that can combine insert-loading tooling and finished-part extraction on one EOAT assembly. Whether this approach is appropriate depends on the insert, part geometry, payload, mold access, available cycle time, and required loading sequence.
When does it make sense to evaluate automation for insert loading versus staying with manual loading?
The evaluation is worth running when volume is sufficient to justify EOAT and cell engineering investment, when insert placement defects are a recurring quality problem, when cycle-time variation from manual loading is affecting press utilization, or when ergonomic and safety considerations around repeated operator access to the mold area are a concern. Low-volume or highly variable applications may still be better served by manual or semi-automated approaches.
