Servo Wrist and Multi-Axis Take-Out Robot Configurations

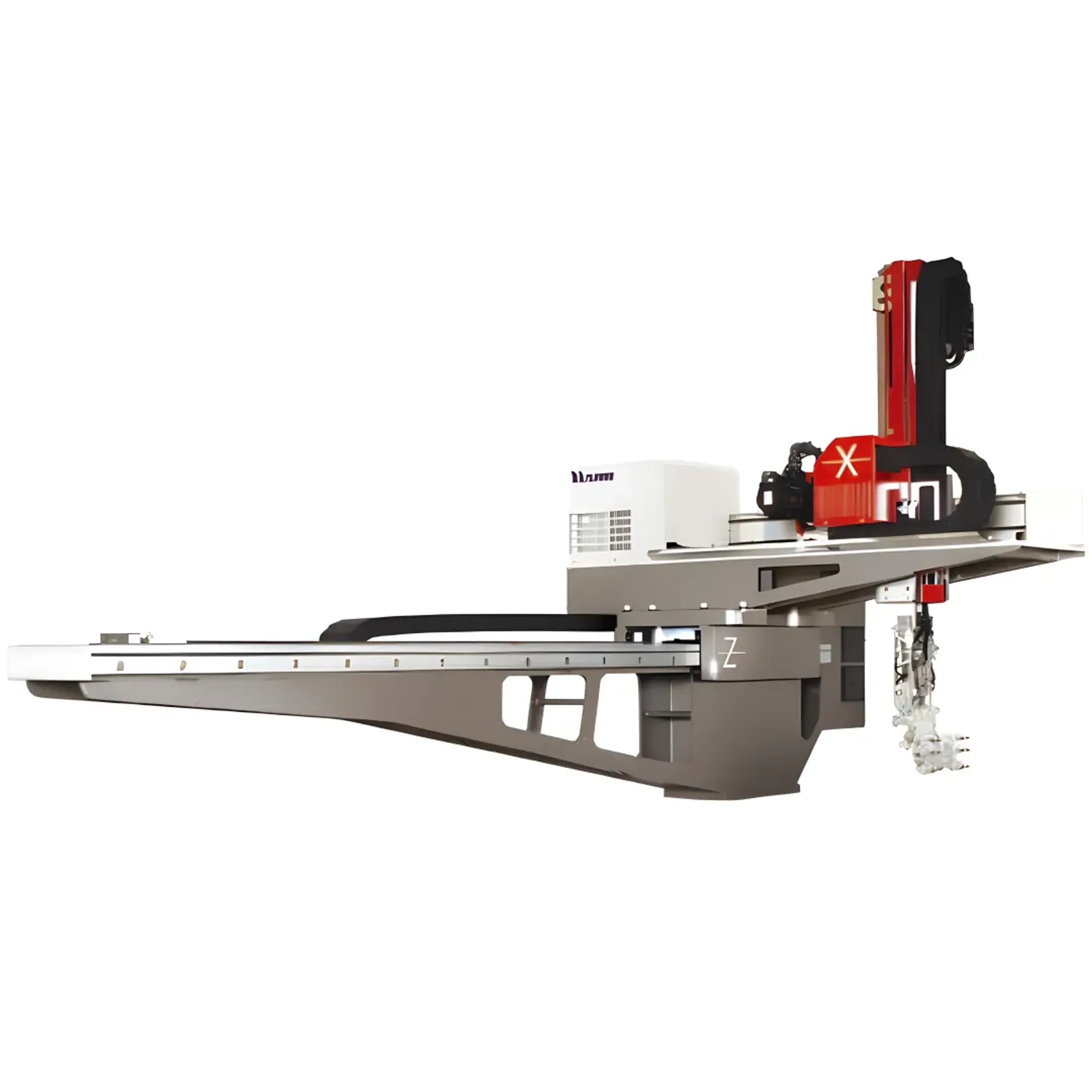

For injection molding take-out applications, the Yushin alternative is usually a Cartesian take-out robot configured with the right EOAT and, when needed, servo wrist or added orientation capability. This approach is designed around mold-area entry, part extraction, retraction, and downstream placement in a molding cell.

Added wrist or multi-axis capability may be useful when the part or EOAT needs controlled orientation during release, transfer, or placement. Examples include undercut take-out, part rotation, angled placement into a fixture, insert handling, overmolding workflows, or applications where the EOAT must approach or release the part at a specific angle.

Some Yushin take-out robot configurations can add servo wrist axes for more complex EOAT motion. For example, optional servo wrist units can provide additional controlled wrist movement on compatible take-out robots. The correct configuration depends on the robot model, EOAT, part geometry, mold access, and placement requirements.

It depends on the task. For standard injection molding take-out, Cartesian robots are often preferred because the mold pick point and downstream place point are repeatable. A 6-axis articulated robot may still fit some assembly, finishing, or complex downstream applications. Yushin America should review the molding cell before recommending the right automation approach.

Yes. Insert loading, overmolding, undercut take-out, and complex orientation are advanced Yushin-supported applications. They may require engineered EOAT, insert-handling tooling, servo wrist configuration, downstream fixtures, and application engineering review. The final setup depends on the insert, molded part, mold layout, orientation needs, and cycle-time requirements.

Start with the injection molding machine layout, part geometry, part weight, EOAT weight, mold access, release direction, undercut or insert-handling needs, downstream placement target, cycle time, and available clearance. Yushin America can use these details to confirm whether a standard Cartesian take-out robot, servo wrist option, or more advanced multi-axis configuration is appropriate.
