Insert molding is a process in which metal or other inserts are placed into a mold cavity before injection, so that the finished part encapsulates the insert as an integral component. If you are already familiar with the basics and are now evaluating how to automate the process reliably, this article covers the system-design decisions that determine whether an insert-molding automation cell actually works in production.
Choosing How to Present Inserts

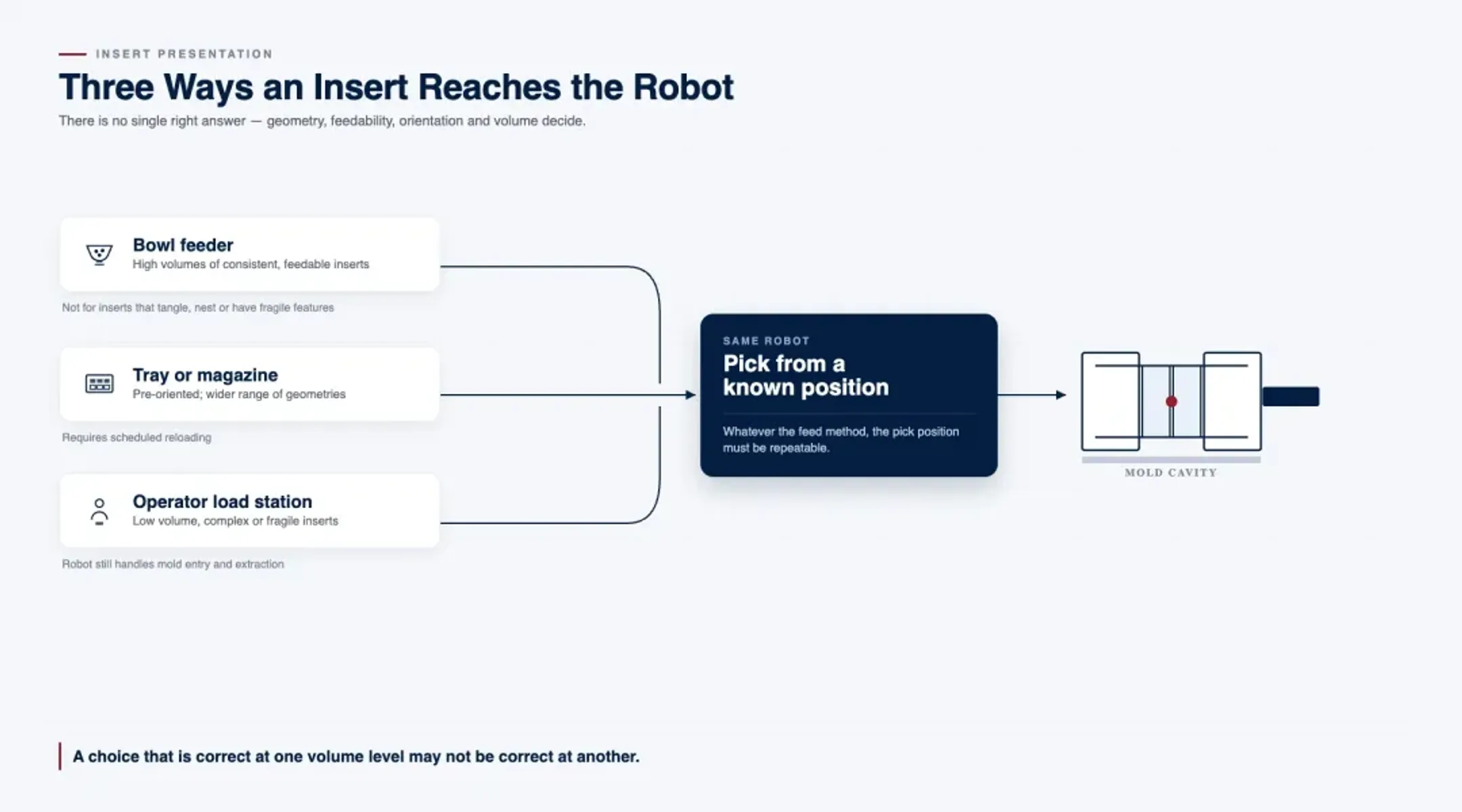

The first decision in any insert-molding automation project is how the insert reaches the robot. There is no single right answer - the correct approach depends on insert geometry, size, feedability, orientation requirements, and production volume.
Bowl feeders use vibration to move inserts from a bulk supply hopper and orient them before presenting them to the robot. They work well for high volumes of consistent, feedable small inserts - typically simple cylindrical or symmetric geometries that orient reliably through the feeder's tooling. Bowl feeders reduce operator involvement in the supply cycle and support continuous high-volume operation, but they require dedicated tooling engineering for each insert geometry and are not practical for inserts that tangle, nest, or have fragile features that cannot withstand bulk handling.
Trays or magazines provide organized, pre-oriented presentation for inserts that do not feed reliably in bulk. The inserts are loaded into a tray or magazine offline - sometimes by an operator, sometimes as part of an upstream process - and the robot picks from a known, repeatable position. This approach handles a wider range of insert geometries than bowl feeders and is common where orientation must be pre-set or where insert complexity makes bulk feeding impractical. The tradeoff is that trays require periodic reloading, which introduces scheduled operator involvement.
Operator load stations are stations where an operator presents the insert to the robot - placing it into a fixture nest from which the robot picks. This approach is appropriate for low volumes, for complex or fragile inserts where automating the feed step would add cost and complexity without proportional benefit, or early in a program before full automation investment is justified. The robot still handles the mold-entry and extraction sequence; the operator handles the supply side.
Insert geometry, feedability, orientation sensitivity, and production volume should all be weighed before committing to a feed method. A choice that is correct at one volume level may not be correct at another.
Insert Verification Before Loading

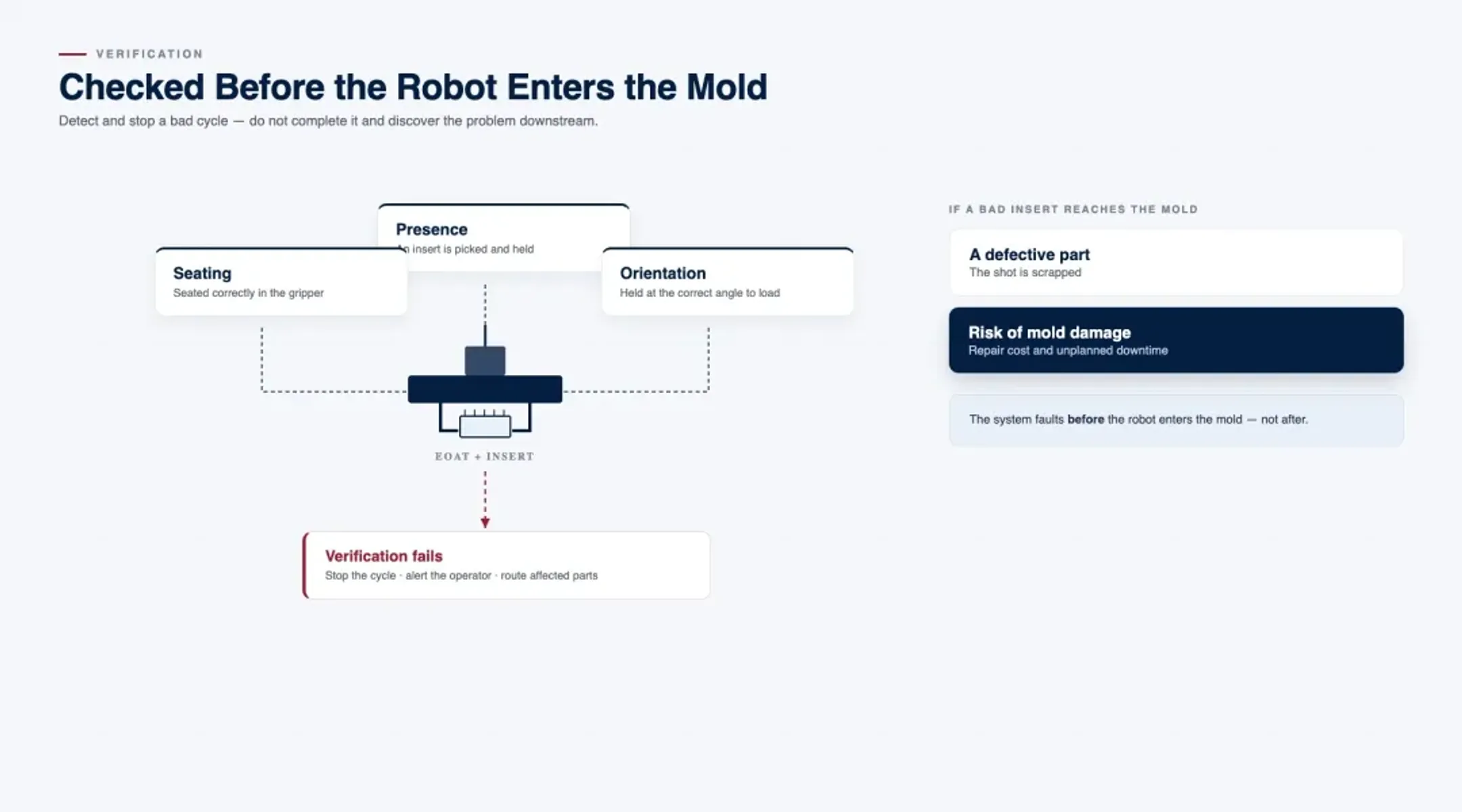

Before the robot enters the mold, the cell should address the relevant failure modes associated with insert presence, seating, and orientation. Depending on the application, end-of-arm tooling may incorporate sensing or other verification methods to confirm that the required insert conditions are satisfied before loading. A missing or incorrectly positioned insert can produce a defective part and, in some applications, create a risk of mold damage.
Insert presence verification confirms that the robot has picked up an insert and is holding it before the robot enters the mold. This is typically done with a sensor integrated into the EOAT - pneumatic, proximity, or vision-based depending on the insert geometry and application requirements. If no insert is detected, the system faults before the robot enters the mold rather than after.
Orientation verification confirms that the insert is held in the correct orientation for loading. An insert presented upside-down, rotated to the wrong angle, or seated incorrectly in the gripper will load incorrectly even if it is present. Verification at this stage catches the problem before it becomes a scrapped shot or mold damage.
Fault handling defines what the system does when verification fails. A well-designed cell will stop the cycle, alert the operator, and route any affected parts appropriately. The specific response depends on the cell design and application requirements, but the principle is consistent: detect and stop a bad cycle, not complete it and discover the problem downstream.
EOAT Design for Insert Molding

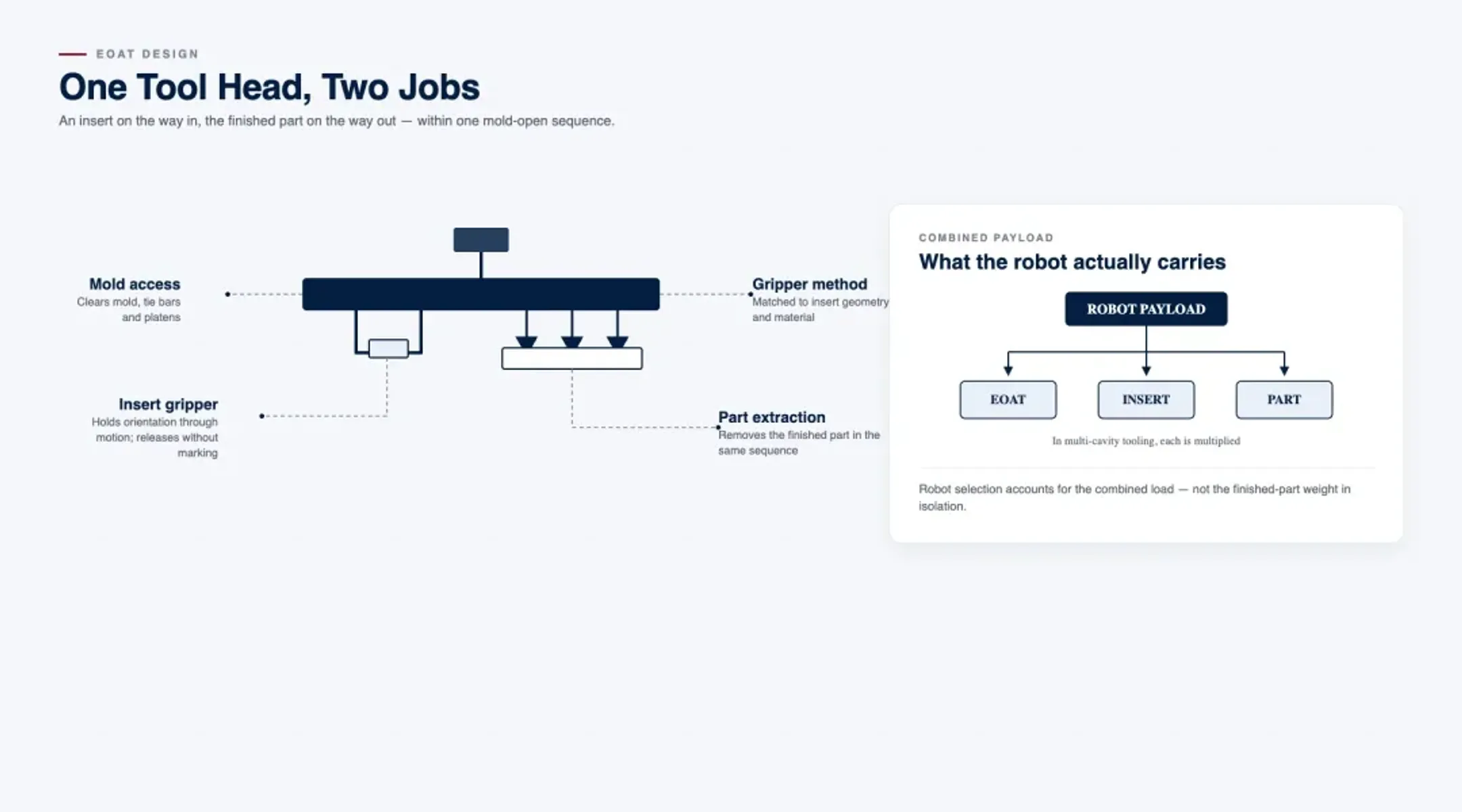

End-of-arm tooling for insert molding can require functions beyond straightforward part extraction. In suitable automated applications, EOAT may be designed to handle an insert on the way into the mold and the finished part on the way out within the available mold-open sequence.
Gripper design for the insert must match the specific insert geometry and material. Metal threaded inserts, terminal pins, contact blades, and overmolded components all have different shapes, weights, and grip requirements. The gripper must hold the insert securely enough to maintain orientation through the robot's motion, and release it cleanly into the mold cavity without marking or deforming the insert.
Combined payload is a factor that is sometimes underestimated at the system-design stage. The robot's payload requirement includes the insert weight, the finished-part weight, and the weight of the EOAT itself. In multi-cavity applications where the tooling handles several inserts and several finished parts simultaneously, the total payload adds up quickly. Robot selection must account for this combined load, not just the finished-part weight in isolation.
Mold access requirements define the physical envelope the EOAT must fit within. The tooling must reach the insert location in the mold cavity and the finished-part ejection location without interfering with the mold, tie bars, or machine platens. Restricted mold access can drive EOAT geometry decisions significantly and is a consideration best addressed before the mold is cut.
Dual-function EOAT - tooling that handles both insert loading and finished-part extraction in a single mold-open sequence - is something Yushin supports for suitable applications. Whether this configuration is appropriate depends on the specific insert geometry, part geometry, combined payload, mold access constraints, available cycle time, and the required loading sequence. It is not a universal approach; each application needs to be evaluated on its own merits.
Semi-Automatic vs. Fully Automated Insert-Molding Cells
Not every insert-molding automation project is, or should be, fully automated. The right level of automation depends on the production volume, insert complexity, and what the cell economics actually support.
Semi-automatic cells involve the robot handling the repetitive loading and extraction cycle, while an operator remains involved in some steps - refilling trays, monitoring the feed system, or occasionally assisting with positioning. Semi-automatic designs are appropriate for lower-volume programs, for inserts where full automation of the feed or presentation step adds engineering cost and complexity without a proportional production benefit, or where the application requires flexibility across changeovers. The robot reduces manual labor at the machine and improves repeatability in the mold-entry sequence without requiring a fully unattended cell.
Fully automated cells have the robot handling insert presentation, pickup, verification, loading, and finished-part extraction with no operator intervention in the molding cycle. The operator's role shifts to monitoring, periodic supply replenishment, and maintenance rather than involvement in each cycle. Fully automated designs are appropriate where production volume, insert consistency, and cycle-time requirements justify the investment in feed systems, verification hardware, and cell engineering.
Full automation is not inherently better than semi-automation. The right answer depends on the specific program. Yushin's insert-molding work ranges from semi-automatic to completely automated projects, and the appropriate design is determined application by application.
Pre-Heating and Other Integration Points

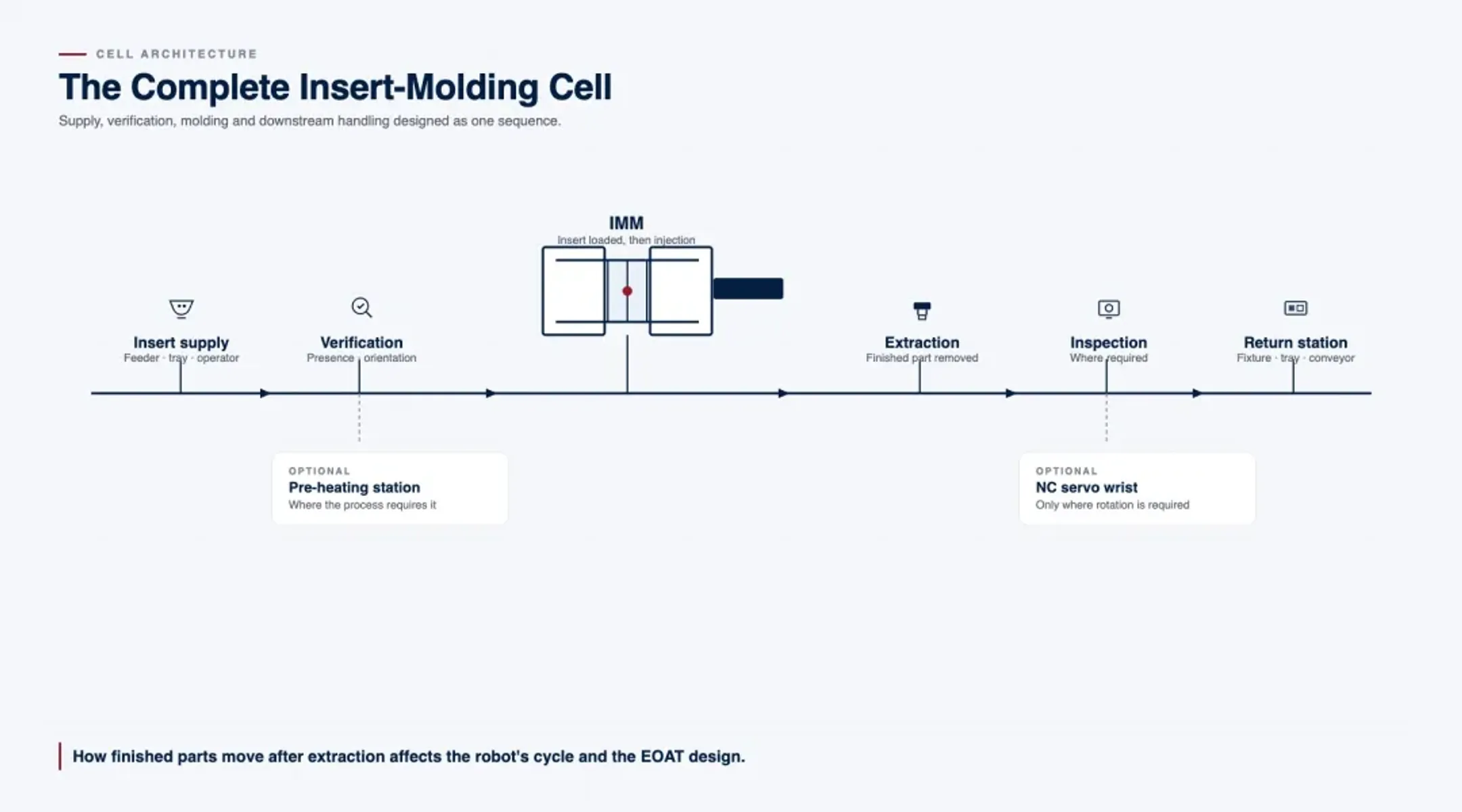

Some insert-molding applications require more than a robot, EOAT, and feed system. Depending on the insert material, part requirements, and downstream process, additional integration points may be part of the cell design.
Pre-heating stations may be included when the molding process or part specification requires the insert to reach a defined condition before mold loading. Yushin supports pre-heating station integration as part of an insert-molding automation system where the specific application calls for it.
Finished-part return stations are downstream placement points where the robot deposits finished insert-molded parts at a defined location - a fixture, tray, conveyor, or inspection station - rather than releasing them onto a general conveyor. Where controlled part handling after molding is a requirement, this becomes part of the cell layout.
Bowl-feeder systems for bulk insert feeding can be integrated into the cell where insert geometry permits reliable bulk feeding. The bowl feeder supplies the robot continuously, reducing the frequency of operator involvement in the insert supply cycle.
Downstream handling of finished parts - conveyors, sorting fixtures, inspection equipment, packing stations - may be part of the overall cell scope depending on the application. How finished parts move after extraction affects the robot's cycle and the EOAT design, and should be considered as part of the full cell layout rather than as an afterthought.
NC Servo Wrists in Insert Molding
NC servo wrist units add controlled rotational axes to the robot arm. In insert molding, a servo wrist may be relevant where the application genuinely requires controlled rotation - for example, where the insert must be rotated from its presentation orientation to a specific loaded orientation that cannot be achieved through fixed EOAT geometry alone.
Where the motion sequence allows, orientation can sometimes be coordinated with traverse movement to minimize additional cycle time. However, rotation does add motion to the sequence, and its impact on overall cycle time depends on the specific robot model, motion path, and required rotation angle. A servo wrist should be specified where controlled rotation is an actual requirement of the loading sequence, not as a default addition to every insert-molding cell.
Mold-Layout Considerations
The ease or difficulty of automating an insert-molding process is often influenced by decisions made when the mold is being designed - cavity location relative to the parting line, clearance for EOAT access, ejector timing relative to insert loading, and whether insert locating features are machined into the mold. Changes to accommodate automation are straightforward at the design stage and expensive after the mold is cut.
Yushin's application engineers can provide automation input during mold planning - reviewing mold-layout considerations for insert access and EOAT clearance, recommending insert-handling approaches based on insert geometry and mold layout, and coordinating EOAT and automation requirements with the molding application. Involving automation engineering at the mold-planning stage is not always possible given project timelines, but where it is, it reduces the likelihood of access problems and design iterations after the tool is built.
Evaluating ROI for Insert Molding Automation
ROI for insert-molding automation is specific to each application. Generic percentages and universal payback periods do not reflect the range of variables involved. What matters is identifying and quantifying the factors that apply to the specific operation being automated.
Manual labor per cycle - the operator time at the molding machine for each cycle - is typically the starting point. How many operators are currently assigned to the cell per shift, and what portion of their time is consumed by insert loading and part handling?
Cycle-time variation from manual loading - differences in manual loading time can affect the consistency of the overall molding cycle. Automated loading can reduce the portion of cycle-time variation associated with repeated manual insert placement when the automation system is properly engineered.
Frequency and impact of misloaded or missing inserts - how often do loading errors occur currently, and what is the cost when they do? This includes scrapped shots, mold-damage incidents, and the downtime required to identify and resolve a loading error.
Scrap rate and mold-damage incidents from loading errors are worth tracking separately. Mold damage from a misloaded insert can result in repair costs and unplanned downtime that are significantly larger than the per-part scrap value.
Downtime caused by manual operations - fatigue, shift changes, breaks, and operator variability all affect the effective uptime of a manually-loaded cell. Automated cells do not have the same variability sources.
Changeover time for programs that run multiple insert types is a relevant factor if the cell needs to handle more than one insert geometry. How much time does changeover currently consume, and how does the proposed automation affect that?
Required production volume to justify system investment - the cell investment needs to be evaluated against the production volume the program will actually run. A cell engineered for high-volume continuous production may not be the right investment for a lower-volume program, and vice versa.
Engineering complexity and cell footprint are costs that are sometimes not fully accounted for in early ROI estimates. A complex cell with multiple feed systems, verification stations, and integration points takes longer to engineer, commission, and debug than a simple one.
Conclusion
Automating an insert-molding process reliably requires decisions at every level of the cell design - how inserts are presented, how the robot verifies what it is holding, how the EOAT is designed for the specific insert and part geometry, and how the cell is integrated with upstream supply and downstream handling. Getting those decisions right is what separates a cell that runs consistently in production from one that runs well during trials and causes problems at volume.
If you are evaluating insert-molding automation, bring the specifics into the review: the insert geometry and material, the planned feed method, the mold layout, EOAT requirements, orientation needs, cycle time target, production volume, and how finished parts need to be handled after extraction. Contact Yushin America to review the application with the engineering team.
Frequently Asked Questions
How do I decide between a bowl feeder, trays, and an operator load station for my insert-molding cell?
The decision depends primarily on insert geometry and production volume. Bowl feeders are practical for high volumes of simple, consistently feedable inserts. Trays or magazines work better for inserts that require pre-set orientation or that cannot be bulk-fed reliably. Operator load stations are appropriate for low volumes, complex inserts, or situations where automating the supply step adds cost without a proportional production benefit. There is no universal answer - the right choice depends on the specific insert and program.
What sensors or verification methods are typically used to confirm insert presence and orientation before loading?
The method depends on the insert geometry and cell design. Pneumatic sensors in the EOAT can confirm grip contact or vacuum hold. Proximity sensors can detect the presence of a metal insert in the gripper. Vision-based systems can verify both presence and orientation. The appropriate approach for a given application is determined during EOAT and cell design, not selected generically.
When is dual-function EOAT - handling both insert loading and part extraction in one sequence - appropriate?
Dual-function EOAT is appropriate when the insert and finished-part geometries are compatible with a single tooling design, when the combined payload is within the robot's capacity, when mold access allows both operations within the mold-open time, and when the loading sequence supports it. It is not a standard solution for all insert applications. Suitability needs to be evaluated based on the specific insert, part, mold layout, payload, and cycle-time constraints.
How does a servo wrist unit affect cycle time in an insert-molding application?
A servo wrist adds a rotation axis to the robot arm, which introduces additional motion into the sequence. Where the motion sequence allows, orientation can sometimes be coordinated with traverse movement to minimize additional cycle time. The actual cycle-time impact depends on the required rotation angle, the robot model, and how the motion is programmed. A servo wrist should be specified only where controlled rotation is a genuine requirement of the loading sequence.
What mold-design decisions have the biggest impact on insert-molding automation?
The most significant factors are cavity and insert-location accessibility for the EOAT, clearance between the mold and the machine for robot entry, the presence of insert-locating features machined into the mold cavity, and ejector timing relative to the insert-loading sequence. These are straightforward to accommodate at the design stage and difficult to retrofit after the mold is built. Involving automation engineering during mold planning reduces the risk of access and sequence problems at commissioning.
How do I know whether semi-automatic or fully automated cell design is right for my program?
Semi-automatic designs make sense when production volume does not justify the investment in a fully automated feed and verification system, when insert complexity makes fully automating the supply step impractical, or when the program requires changeover flexibility that would be difficult to automate cost-effectively. Fully automated designs make sense when volume, insert consistency, and cycle-time requirements justify the system investment and engineering. The decision should be based on the specific program economics, not on a general preference for one approach over the other.
